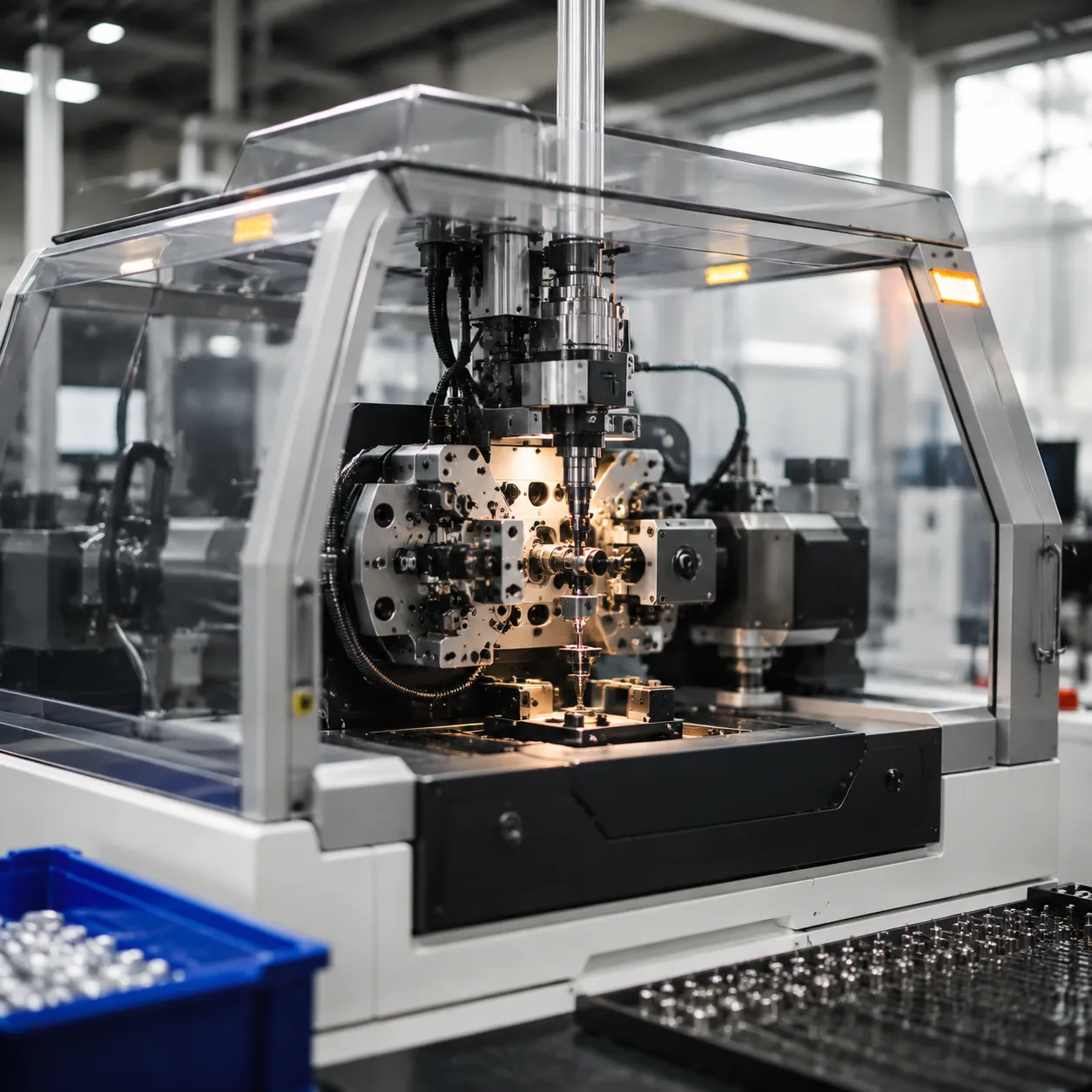

Critical Advantages of CNC Bending in Dental Bracket Forming
Deploying an advanced CNC bending machine for metal dental bracket forming application advantages medical device manufacturers through superior micro-scale accuracy, cleanroom compatibility, and high repeatability. We engineer our automated bending platforms to eliminate manual dimensional drift and streamline complex orthodontic appliance manufacturing.
Sub-Millimeter Precision and Angle Repeatability
- Micro-level repositioning accuracy (±0.01 mm): Delivers tight tolerances and uniform structural integrity across high-volume production runs.
- ±0.3° angle precision: Maintains exact torque and tip specifications, ensuring predictable biomechanical force delivery across every manufactured bracket and wire geometry.
- Zero dimensional drift: Eliminates human error and batch-to-batch variations inherent to legacy manual or semi-automated shaping tools.
Advanced Electric Servo Bending Control
- Cleanroom compliance: Replaces fluid-based hydraulic systems with clean, highly responsive electric servo drives engineered for medical cleanroom environments.
- Variable force control: Precise load distribution bends ultra-thin sheet metal and fine orthodontic wire without surface micro-fractures or structural defects.
- High-speed cycle profiling: Combines rapid axis acceleration with controlled deceleration to minimize cycle times while protecting material integrity.
Intelligent Springback Compensation Algorithms
- Elastic recovery control: Calculates and counters unpredictable material springback in shape-memory alloys, Nitinol (NiTi), and medical stainless steel wire.
- Real-time feedback adjustments: Uses automated closed-loop sensing to modify tool positioning based on live material resistance, guaranteeing exact final bend geometries.
Dramatic Material Scrap Reduction
- Maximized material yield: Optimizes blank feeding and nesting to minimize raw material waste when processing costly biocompatible metal alloys.
- Near-zero setup defects: Replaces trial-and-error manual setups with exact digital control, achieving first-part accuracy from the initial run.
CAD/CAM Orthodontic Workflow Integration for Dental Bracket Bending
We design our system to maximize the cnc bending machine for metal dental bracket forming application advantages by connecting directly into modern digital dental workflows. By bridging the gap between digital orthodontics and physical production, we eliminate manufacturing bottlenecks and accelerate turn times.
Direct Intraoral Scan to B-Code Execution
Our CAD/CAM orthodontic workflow links digital intraoral scanning straight to the shop floor. We convert 3D patient models and CAD bracket designs directly into multi-axis machine toolpaths using B-code toolpath automation, cutting out manual programming delays entirely.
- Direct Data Conversion: Translate digital patient scans directly into precise multi-axis toolpaths.
- Batch & Custom Versatility: Support both high-volume standard bracket runs and patient-specific custom appliances on the same line.
- Zero Manual Delays: Skip tedious manual G-code programming to boost daily throughput.

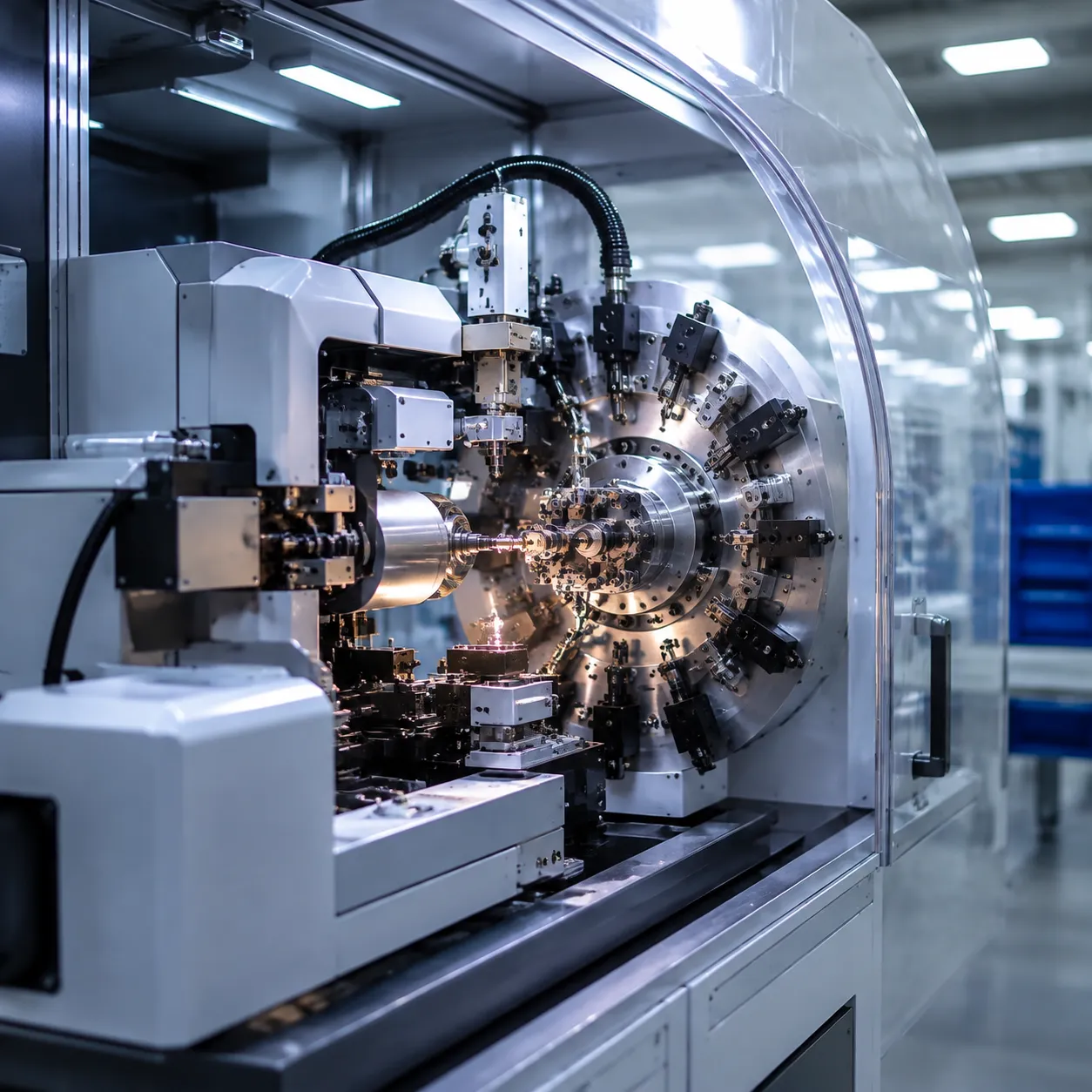

Multi-Axis Flexibility for Complex Geometries
Complex bracket designs require intricate, multi-directional bends. We utilize a multi-axis backgauge system alongside specialized bending dies to execute complete bracket profiles in a single clamped setup.
| Geometry & Feature | Machining Capability | Operational Advantage |
|---|---|---|
| Micro-Slot Formation | Direct micro-bending | Achieves tight tolerances without secondary milling |
| Torque Bends | Multi-directional setup | Preserves structural integrity across delicate alloys |
| Retention Features | Single-clamp execution | Cuts total cycle times and reduces handling defects |
Forming micro-slots, torque bends, and retention features in a single setup preserves material structure while delivering maximum repeatability across every production run.
Production Efficiency & Scalability for Dental Bracket CNC Bending
We design our CNC bending systems to deliver rapid return on investment, operational efficiency, and seamless scalability for high-volume medical device manufacturing. Moving from manual shaping to precision digital control slashes long-term operational costs while delivering tight tolerances across every single run.[4]
Manual Stamping vs. CNC Bending Systems
| Operational Metric | Legacy Manual Stamping / Press Brake[5] | Our Automated CNC Micro-Bending System |
|---|---|---|
| Shift Output | Limited to operator shifts & manual speed | Unattended 24/7 continuous production |
| Part Repeatability | High variability (±0.05 mm to ±0.1 mm) | Micro-level repositioning accuracy (±0.01 mm) |
| Material Scrap Rate | Typical elevated setup and trial scrap | Near-zero scrap with instant setup programs |
| Changeover Time | Hours of physical tool alignment | Minutes via digital CAD/CAM program selection |
| Labor Allocation | High manual labor per machine | One supervisor managing multiple bending cells |

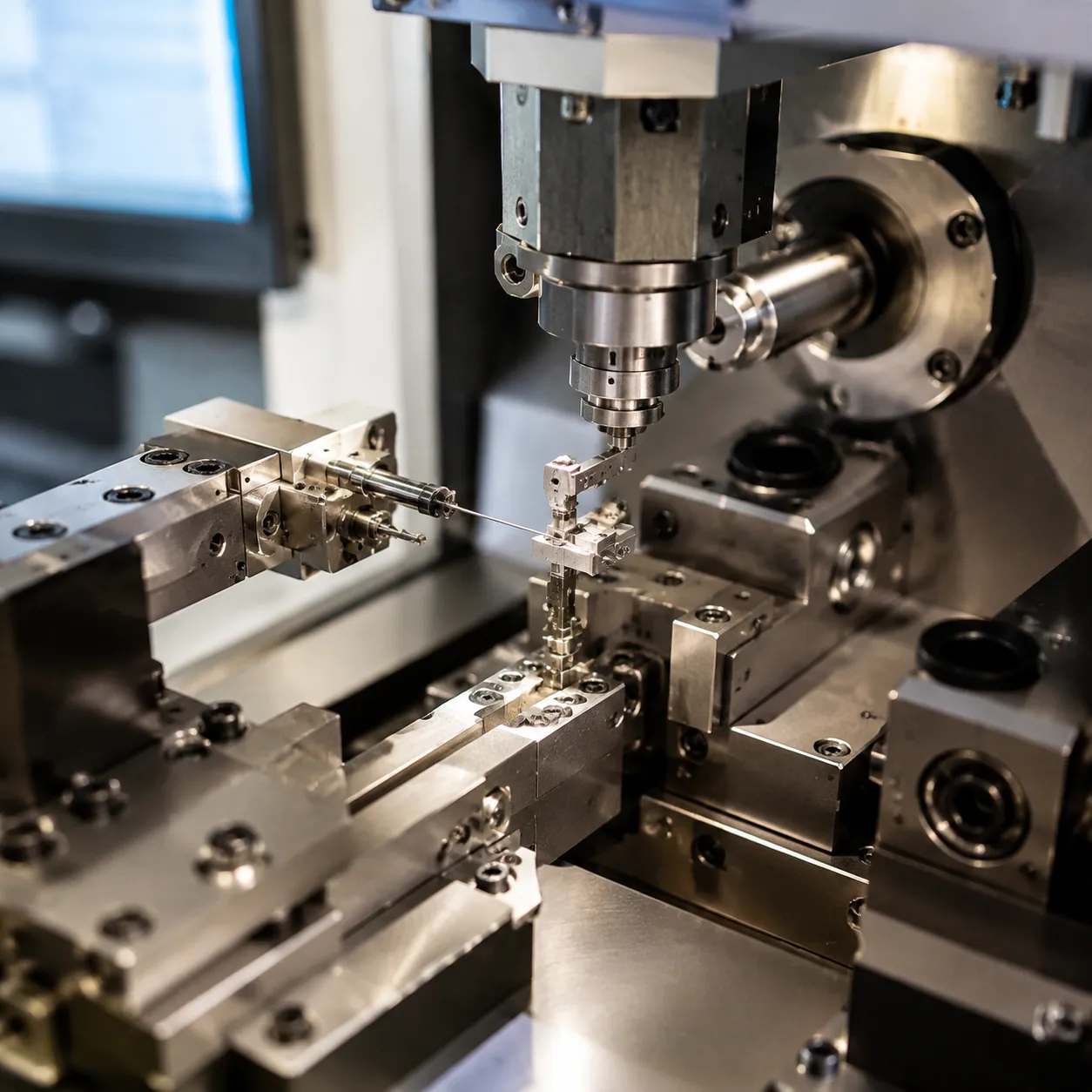

Unattended 24/7 Production
We integrate automated robotic loading and unloading cells into our wire forming and bracket production systems, enabling true lights-out manufacturing:
- Automated micro-bending cells: Process delicate stainless steel wire and biocompatible metal alloys continuously around the clock.
- Closed-loop control: Real-time feedback loops maintain exact toolpath execution, protecting thin-wall brackets from dimensional drift.
- Maximum uptime: Deliver high throughput for custom and standard orthodontic appliances with zero downtime between shifts.
Reduced Labor Dependencies
Automating precision bending allows you to optimize your workforce and trim unnecessary overhead:
- Strategic talent reallocation: Move skilled labor away from tedious manual bending and into digital programming, process optimization, and strict quality control.
- Streamlined machine operation: Intuitive software interface allows operators to load B-code files and monitor multi-axis bending runs effortlessly.
- Consistent unit margins: Lower overall production costs while scaling up capacity to meet surging market demand.
OEM/ODM Micro-Forming for Orthodontic Wire & Bracket Lines
We engineer fully customized OEM/ODM micro-forming architectures designed specifically for high-precision orthodontic manufacturing. Leveraging key cnc bending machine for metal dental bracket forming application advantages, we adapt hardware layouts and control systems to match your exact production specs.
Custom Tooling & Die Engineering
We develop specialized micro-tooling packages that protect material integrity while maintaining tight tolerances on delicate components.
- Micro-Forming Dies: Tailored for complex bracket geometries and micro-scale radius bends.
- Specialized Bending Fingers: Designed for high-precision, non-destructive manipulation of miniature workpieces.
- Non-Marring Coatings: Tooling features proprietary surface coatings to prevent scratches or micro-cracks on biocompatible metal alloys.
Industrial Controller Integration
Our machinery integrates with top-tier multi-axis motion control platforms to ensure accurate toolpath execution.
- System Compatibility: Native support for high-performance controllers, including Delem, ESA, and Cybelec.
- Multi-Axis Coordination: Synchronizes fine-pitch backgauges and micro-bending axes in real time.
- Custom Software Interfaces: Streamlined setup for rapid parameter adjustments across custom orthodontic appliance designs.
Medical Manufacturing Standards
We build every machine to comply with global regulatory frameworks governing medical device manufacturing.
- ISO9001 & CE Certified[3]: Manufactured under an ISO9001 medical machinery standard to ensure strict quality control and repeatability.[2]
- Cleanroom-Ready Design: Clean electric actuation minimizes particulate emissions for sanitary factory environments.
- Audit Documentation: Includes complete technical compliance data packages to simplify customer regulatory approvals.

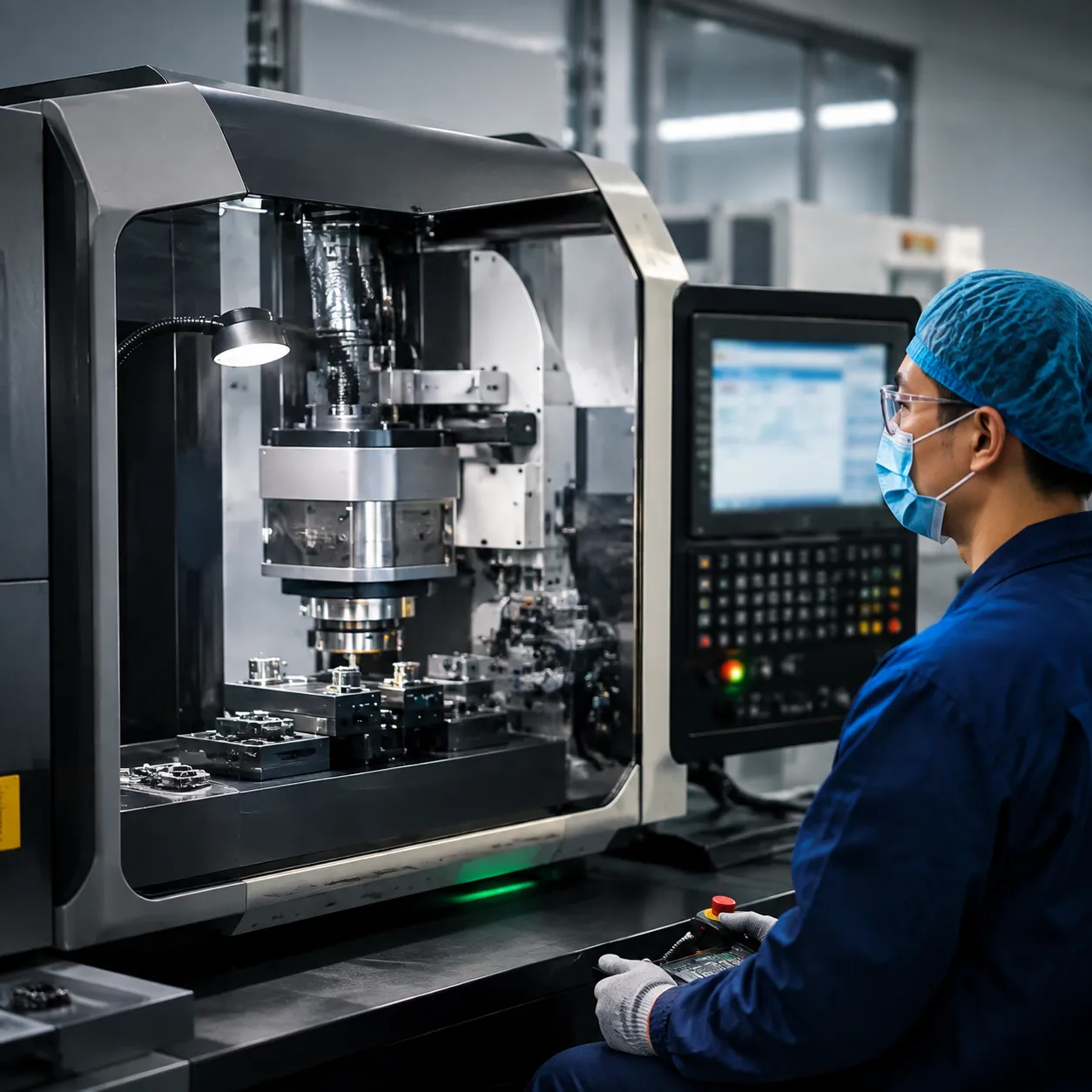

Implementation & Global Lifecycle Support
Maximizing the cnc bending machine for metal dental bracket forming application advantages requires end-to-end integration support. We back every deployment with full lifecycle services to protect your investment, minimize downtime, and maintain strict medical device manufacturing compliance.[1]
On-Site System Calibration
- Micro-Level Laser Alignment: Our technicians execute precision setups to lock in micro-level repositioning accuracy (±0.01 mm) upon installation.
- Sensor Verification: We calibrate closed-loop force feedback systems directly using your target biocompatible metal alloys.
- Zero-Drift Guarantee: Fine-tuning multi-axis backgauges on-site ensures your machinery hits exact tolerance specs from day one.
Operator Training & Process Optimization
We deliver practical, hands-on training directly on your shop floor so your team can master precision bending and wire forming workflows fast.
| Lifecycle Phase | Focus Area | Operational Benefit |
|---|---|---|
| System Calibration | Hardware Alignment & Force Calibration | Guaranteed micro-level precision without initial setup waste |
| Operator Training | Tooling Installation & B-Code Automation | Fast conversion of CAD/CAM intraoral scans into active runs |
| Process Tuning | Speed Profiles & Servo Control | Zero surface micro-fractures on delicate orthodontic wire |
| Lifelong Support | Remote Diagnostics & OEM Parts | Uninterrupted 24/7 continuous production capability |
Lifelong Technical Assistance
- Real-Time Remote Diagnostics: Rapid troubleshooting via integrated digital controllers to keep production lines running.
- OEM Spare Parts Supply: Fast dispatch of custom micro-forming dies, specialized bending fingers, and wear components.
- Continuous Algorithm Upgrades: Ongoing software enhancements to optimize springback compensation algorithms as you introduce new medical alloys.
CNC Bending Machine for Metal Dental Bracket Forming Application Advantages: FAQs
What alloys can be processed on micro-bending machines?
We design our equipment to form a wide range of high-performance biocompatible metal alloys used across the orthodontic industry, including:
- Medical Stainless Steel: 304L, 316L, and 17-4 PH stainless steel wire and micro-sheet
- Shape-Memory Alloys: Nitinol (NiTi) for super-elastic orthodontic archwires and brackets
- Titanium Alloys: Grade 5 (Ti-6Al-4V) and CP Titanium for lightweight, biocompatible bracket structures
- Cobalt-Chromium: High-strength Co-Cr alloys requiring high force repeatability
How do electric servo drives prevent wire micro-fractures?
Electric servo bending replaces hydraulic shock loading with linear, programmable torque delivery. By using closed-loop force feedback, the servo motor precisely manages acceleration, peak tonnage, and deceleration throughout the stroke. This controlled motion prevents surface micro-fractures, notch stress, and surface marring on ultra-thin orthodontic wire forming stock.
What setup time reduction occurs with CAD/CAM intraoral scan integration?
Direct integration into a digital CAD/CAM orthodontic workflow significantly reduces machine setup times. The software automatically translates 3D intraoral patient scans directly into B-code toolpath automation. We eliminate manual G-code programming and physical sample tweaking, moving from digital files to active precision bending in just a few clicks.
How does springback compensation maintain ±0.3° angle precision on Nitinol?
Nitinol and high-tensile alloys carry severe material springback. Our real-time springback compensation algorithm measures mechanical resistance during the initial bend phase, calculates material elastic recovery on the fly, and dynamically over-bends the part. This automated adjustment guarantees tight tolerances down to ±0.3° angle precision and ±0.01 mm repositioning accuracy on every single bracket batch.
