Overview
| ODM scope | Drive / control | Precision | Compliance |
|---|---|---|---|
| odm cnc bending machine · 40T–1000T+ · MOQ 1 set | Electro hydraulic servo or pure electric · numerical control system (Delem / ESA / Cybelec) | ±0.3° bending angle control · ±0.01 mm backgauge | ISO9001 certification · CE certified machinery |
Factory-direct OEM supplier builds for sheet metal bending, press brake, and automated panel lines where catalog frames cannot match throat, tonnage, or voltage.
Need a catalog automatic line instead of full ODM frame design? Compare our automatic CNC bending machine series before specifying custom custom manufacturing scope.

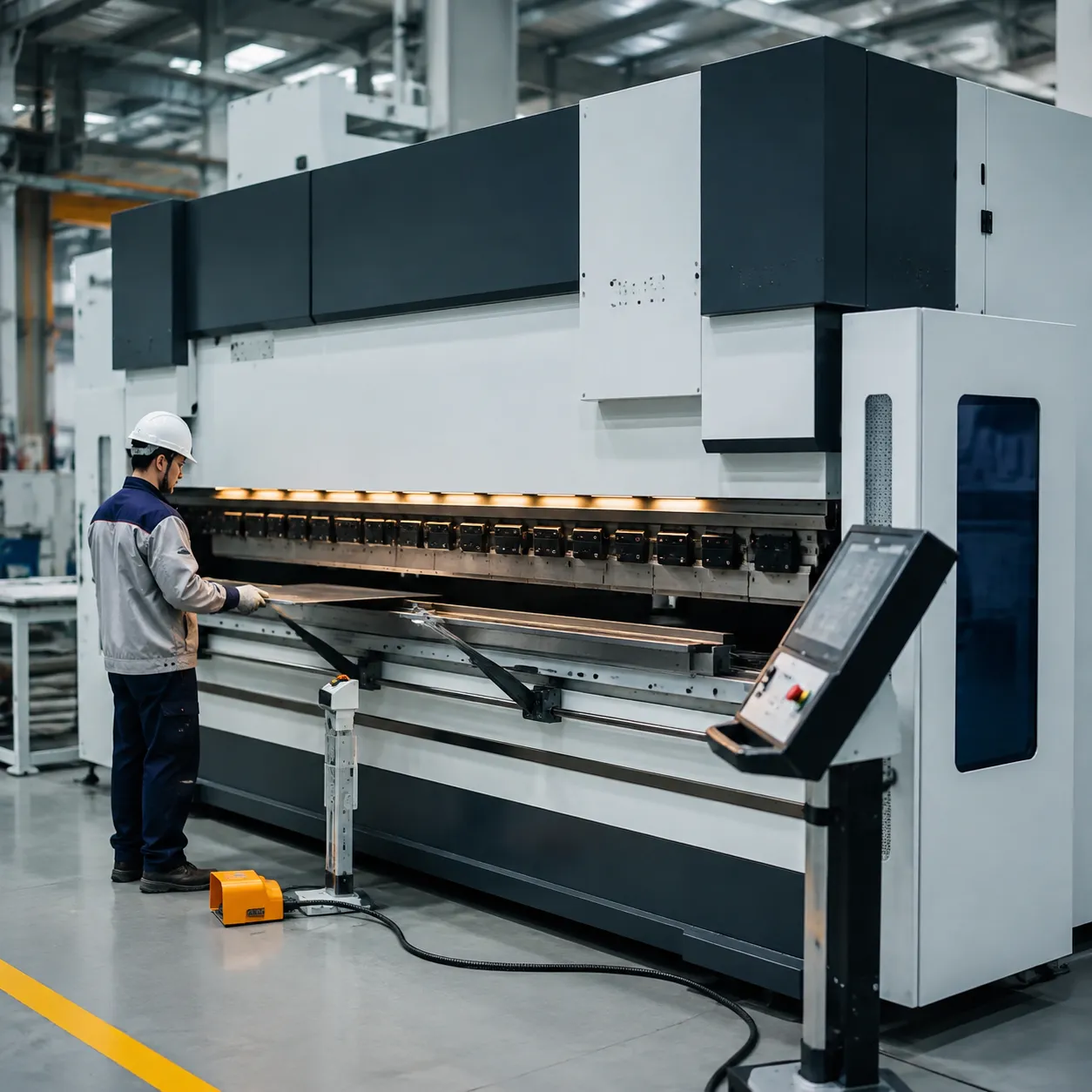

Custom ODM CNC Bending Machine Capabilities
Tailored odm cnc bending machine solutions support high-precision precision metal fabrication and non-standard custom manufacturing workflows—structural frames, tooling, and electrical systems matched to your production line.
Tailored Machine Frame & Structural Engineering
Custom frame architectures accommodate specialized material dimensions and heavy-duty structural applications.
- Custom Dimensions: Adjustable throat depths, daylight openings, and extended bed lengths engineered for oversized or non-standard sheet profiles.
- Heavy-Duty Construction: Stress-relieved, high-tensile steel frames designed to eliminate frame deformation and maintain long-term structural stability under continuous maximum tonnage.
Specialized Tooling & Multi-V Die Solutions
Custom tooling configurations optimize throughput across diverse metal alloys while reducing setup overhead.
- Material-Specific Tooling: Precision-ground punch and die sets configured for high-tensile steel, complex bend profiles, and scratch-free aluminum sheet metal bending.
- Rapid Clamping Systems: Integrated hydraulic or pneumatic quick-clamping mechanisms that drastically shorten setup changeovers during short-run production.
Regional Electrical & Voltage Configurations
Electrical enclosures match local power grids using internationally certified components for plug-and-play commissioning.
| Customization Area | ODM Engineering Option | Application Benefit |
|---|---|---|
| Throat Depth & Daylight | Fully customizable parameters | Accommodates deep box shapes, wide flanges, and heavy plate profiles |
| Tooling Systems | Multi-V dies & quick-clamp holders | Rapid tool setup & scratch-free aluminum fabrication |
| Voltage Configuration | 220V / 380V / 415V / 480V (50/60Hz) | Direct compatibility with local regional industrial power supplies |
Drive Systems & Machine Architecture for ODM CNC Bending Machines
Two drive architectures—electro hydraulic servo and pure electric—cover heavy plate and high-speed sheet metal bending with a shared closed loop control system.
Electro-Hydraulic Servo Press Brake Systems
For heavy-duty structural applications and thick plate fabrication, our electro-hydraulic servo press brake architecture delivers uniform force and precise depth control across the entire working length.
- Closed-Loop Control System: Proportional valve technology monitors ram movement in real time to guarantee precise pressure distribution.
- High Tonnage Output: Built to handle continuous heavy-duty jobs with capacities ranging from standard tonnage up to 1000T+.
- Thick Plate Performance: Engineered for high-yield steel, heavy machinery parts, and large structural profiles.
Pure Electric Servo Bender Solutions
For light-to-medium sheet metal bending equipment, our pure electric servo bender line offers high-speed ram movement without hydraulic fluid maintenance.
- Up to 30% Energy Savings: Direct-drive electric motors consume power only during the active bending cycle, cutting utility costs.
- Zero Oil Contamination: Clean operation eliminates hydraulic oil leaks, filter replacements, and disposal requirements.
- Quiet & Consistent: Low operational noise with high repeating angle accuracy for precision box, housing, and panel forming.
Drive System Performance Comparison
| Performance Metric | Electro-Hydraulic Servo System | Pure Electric Servo System |
|---|---|---|
| Primary Target | Heavy plate & thick structural metal | Light-to-medium sheet metal fabrication |
| Tonnage Range | Custom ODM sizing up to 1000T+ | 30T – 150T precision capacity |
| Energy Consumption | Optimized hydraulic power on demand | Max efficiency (up to 30% power reduction) |
| Maintenance Profile | Standard fluid & filter service intervals | Zero oil changes, minimal mechanical wear |
| Noise & Environment | Standard industrial sound profile | Ultra-quiet, clean room ready |
Multi-Axis CNC Controller Options
Industry-proven controls and high-precision backgauging streamline shop-floor programming. From quick 2D setups to complex 3D parts, our integration ensures exact bending angle control on every hit. For control fundamentals, see how a CNC bending machine works.
Control System & Backgauge Specifications
| System Feature | Options & Config | Core Benefit |
|---|---|---|
| Multi-Axis CNC Controller | Delem DA-50/60 Series, ESA, Cybelec | 2D/3D offline programming & real-time collision prevention |
| Precision Backgauges | 2-Axis, 4-Axis (X, R, Z1, Z2), 6-Axis AC Servo | Fast, repeatable positioning for complex sheet profiles |
| Dynamic Crowning | Automatic Hydraulic or Mechanical Systems | Eliminates bed deflection for uniform angles end-to-end |
Smart Sequencing & Angle Precision
- Automated Offline Programming: Our Delem CNC bending system automatically calculates optimal bend sequences, tool setups, and bend allowances before cutting metal.
- Flexible Backgauge Positioning: Scale your backgauge layout from basic 2-axis up to fully independent 6-axis drives to easily handle tapered parts and asymmetrical bends.
- Integrated Deflection Control: The automatic crowning system dynamically compensates for frame flex under load, keeping your bend angle tight across the entire bed length without manual shimming.
Automated Bending Cells & Smart Factory Integration
Automatic Panel Bender & Flexible Working Cells
We engineer every odm cnc bending machine platform to support high-throughput, continuous manufacturing. Integrating an automatic panel bender into flexible working cells eliminates manual handling bottlenecks during complex box and enclosure fabrication.
- Rapid Multi-Sided Bending: Engineered for fast, high-precision forming of four-sided cabinets, electrical housings, and deep channels.
- 24/7 Unattended Operation: Automatic sheet positioning and rotation units keep the bending cell running continuously with minimal operator supervision.
Automated Robotic Bending Cell & Industry 4.0
Scale your plant output and drive down unit costs with our integrated robotic sheet metal bending equipment.
- 6-Axis Robotic Handling: Optional integrated 6-axis articulated arms handle material loading, re-gripping, and unloading with high repeatability.
- Smart Factory Connectivity: Real-time remote diagnostics and seamless data exchange via standard industrial protocols (OPC UA, Ethernet/IP).
- Predictive Diagnostics: Integrated feedback loops monitor cell performance, track maintenance cycles, and protect your automation investment.
- Optional Tube & Pipe Modules: Cell layouts can integrate automatic tube bender stations and pipe bending equipment when mixed sheet-and-tube lines share one numerical control system.
Technical Specifications & Performance Parameters
Core parameters and configurable features for high-throughput industrial press brake and hydraulic sheet bender builds:
| Feature / Parameter | Standard & Custom Specifications |
|---|---|
| Bending Tonnage | 40T – 1000T+ (Full ODM sizing available) |
| Angle Precision | ±0.3° |
| Repositioning Accuracy | ±0.01 mm |
| Drive Architecture | High-efficiency Electro-Hydraulic Servo / Pure Electric Servo |
| CNC Controllers | Delem (DA-50/60 series), ESA, Cybelec |
| Backgauge Configuration | Multi-axis (2, 4, 6+ axes) driven by AC servo motors |
| Crowning System | Automatic Hydraulic or Mechanical deflection compensation |
| Compliance & Standards | ISO9001 quality assurance, CE certified machinery |
| Minimum Order Quantity | 1 Set |
Built to Your Exact Specs
- Custom Mechanical Design: We adjust daylight openings, throat depths, and bed lengths to match your non-standard sheet metal bending runs.
- Plug-and-Play Integration: Enclosures are configured to your regional voltage (220V/380V/480V) for seamless installation on your shop floor.
- Low Risk Procurement: Start with an MOQ of 1 set backed by full factory warranty, load testing, and direct support.

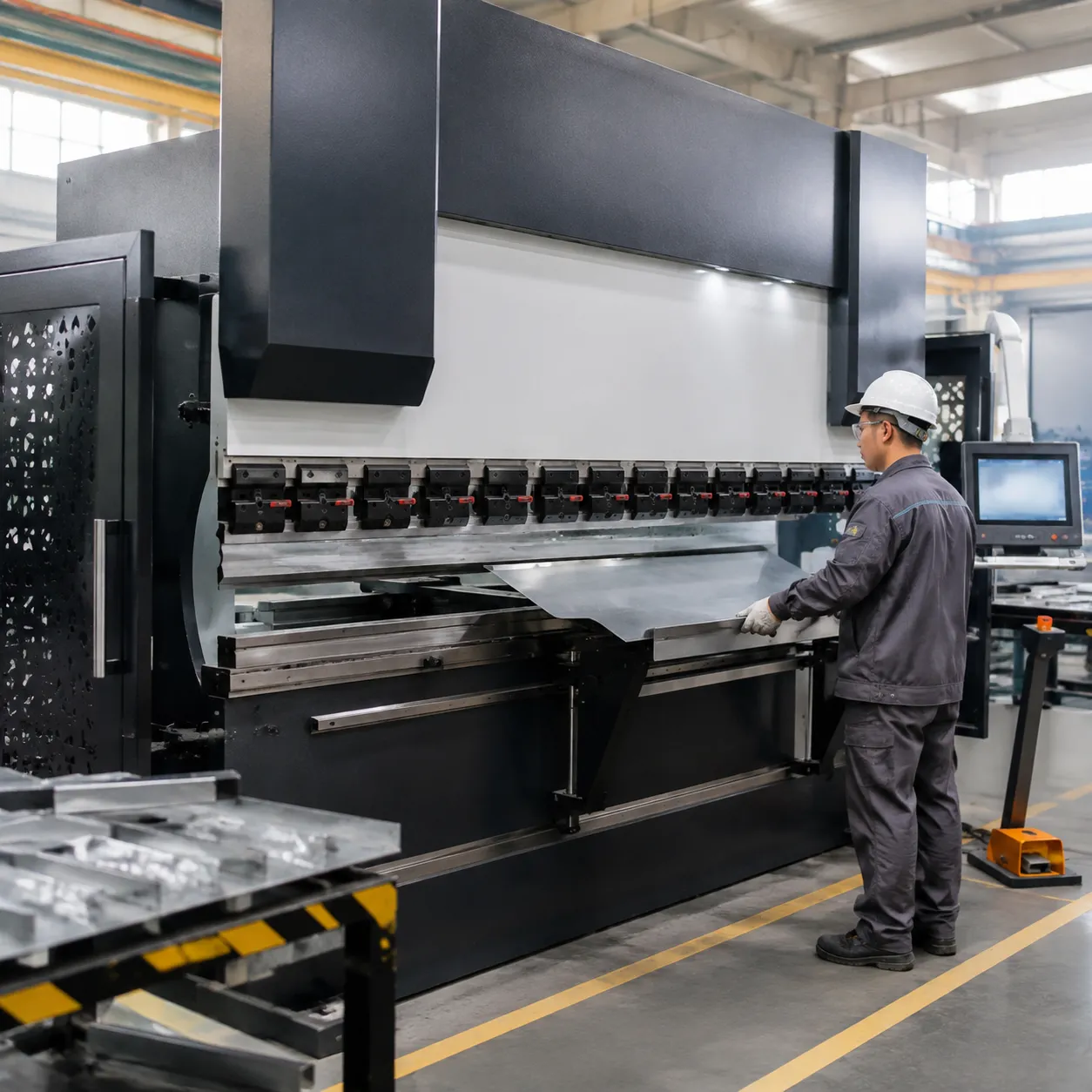

ODM CNC Bending Machine Applications & Industries
Configured machinery delivers repeatable accuracy from thin-gauge electronics to heavy structural steel across diverse precision metal fabrication sectors.
Precision Sheet Metal Enclosures & Electrical Housings
Our sheet metal bending equipment produces crisp, scratch-free bends for tight-tolerance housing applications:
- Electrical Cabinets & NEMA Enclosures: Crisp 90-degree outer flanges and uniform seams for weather-tight sealing.
- Server Racks & IT Infrastructure: Multi-bend backplane profiles with perfect hole-to-bend alignment across high-volume runs.
- Precision Electronics: Specialized poly-film and soft-touch tooling protect sensitive aluminum and stainless steel finishes.
Automotive, Aerospace & Transportation Components
High-strength metal forming demands rigid machine frames and exact springback compensation:
- Structural Chassis Parts: Precise forming of high-yield strength steel without angle deviation or wall thinning.
- Aerospace Brackets & Panels: Precision metal fabrication supported by multi-axis backgauging to maintain tight geometric tolerances.
- Transit & Trailer Components: High-tonnage forming for long, structural side walls and cross-members.
Heavy Structural Machinery, Architectural Facades & HVAC
For large-scale structural projects, our heavy-duty press brake configurations offer the bed length and tonnage needed for oversized workpieces:
- Heavy Equipment Components: High-tonnage capacity easily forms thick plate steel for boom arms, buckets, and industrial frames.
- Architectural Metal Facades: Extended bed lengths and automatic crowning guarantee straight, continuous bends on curtain wall panels and cladding.
- HVAC Ducting & Industrial Channels: Fast box-forming setups optimize short-run production for commercial ductwork and ventilation housings.
ISO9001 Quality Assurance & CE Certified Machinery Support
Rigorous Factory Testing & ISO9001 Quality Assurance
Every ODM CNC bending machine we build undergoes comprehensive testing before leaving our shop floor. We enforce strict ISO9001 quality assurance protocols from incoming material inspection (IQC) to final outgoing checks (OQC).
- Continuous Load Testing: Extended full-tonnage pressure testing to guarantee long-term frame stability.
- Laser Angle Validation: Real-time dynamic laser measurements for precise bending angle control across the entire bed length.
- Precision Calibration: Rigorous positioning checks to eliminate deviation during high-speed production runs.
Turnkey Field Support & Lifelong Technical Resources
We back our CE certified CNC bending machine builds with complete end-to-end lifecycle support to eliminate downtime in your facility.
- On-Site Installation & Setup: Experienced field engineers handle complete mechanical leveling, wiring, and system commissioning.
- Hands-On Operator Training: Practical training for your team covering offline programming, tooling setup, and operational safety.
- Digital Documentation: Complete PDF packages including programming manuals, tooling guides, and safety handbooks.
- Lifetime Technical Support: Direct access to our engineering team for remote diagnostics and technical troubleshooting.
| Quality & Service Parameter | Standard Delivery Specification |
|---|---|
| Manufacturing Compliance | ISO9001 quality system, CE certified standards |
| Pre-Export Inspection | Full load testing + dynamic laser angle verification |
| On-Site Services | Delivery setup, system commissioning & operator training |
| Support Package | Lifetime direct engineering support & full PDF documentation |
Request a Quote
Share bed length, tonnage, material mix, drive preference (electro hydraulic servo vs pure electric), and automation tier for an
odm cnc bending machine layout with itemized OEM pricing.
Contact ProMach with STEP/DXF profiles, regional voltage, and target MOQ for factory-direct
custom manufacturing review.
Frequently Asked Questions About ODM CNC Bending Machines
What customization options do we offer for an ODM CNC bending machine?
We tailor every custom CNC press brake to meet your exact shop requirements and production specs:
- Frame & Structural Specs: Custom throat depths, extended daylight openings, and bed lengths optimized for non-standard sheet dimensions.
- Tooling & Quick-Change Clamping: Specialized punch and die sets designed for high-tensile steel or scratch-free aluminum, paired with hydraulic or pneumatic quick-clamping systems.
- Regional Power Integration: Pre-configured electrical enclosures matching 220V, 380V, 415V, or 480V (50/60Hz) with international standard components.
- Cell Automation: Add-on robotic material handling arms, automatic panel benders, and custom backgauge axis layouts.
How do electro-hydraulic and pure electric servo drive systems compare?
We engineer both systems to deliver high precision, but they excel in different shop environments:
| Feature | Electro-Hydraulic Servo Press Brake | Pure Electric Servo Bender |
|---|---|---|
| Tonnage Range | Heavy-duty capacity (100T to 1000T+) | Light to medium capacity (40T to 150T) |
| Energy Efficiency | High efficiency with closed-loop proportional valves | Up to 30% lower power consumption |
| Maintenance & Oil | Requires routine hydraulic fluid management | Zero hydraulic oil, leak-free operation |
| Best Application | Thick plate bending and heavy structural fabrication | High-speed precision sheet metal bending |
Which multi-axis CNC controllers and backgauges do we support?
- Control Units: Full integration with top industry systems, including the Delem CNC bending system (DA-50 and DA-60 series), ESA, and Cybelec controllers featuring 2D/3D offline programming and dynamic collision avoidance.
- Backgauge Configurations: Configurable 2-axis, 4-axis (X, R, Z1, Z2), and 6-axis AC servo-driven positioning for complex part geometry.
- Deflection Control: Automatic hydraulic or mechanical crowning systems working directly with the controller to maintain dynamic angle accuracy along the entire bed length.
Can ODM scope include tube bending or busbar processing modules?
Primary builds stay press brake and hydraulic sheet bender platforms; optional cell integration can add
automatic tube bender stations or busbar processing machine tooling when your line mixes sheet and
pipe bending equipment under one factory layout.
What are our lead times, certifications, and minimum order quantities?
- Minimum Order Quantity (MOQ): 1 set.
- Manufacturing Standards: Fully CE certified CNC bending machine builds produced under strict ISO9001 sheet metal equipment quality management systems.
- Lead Times: Standard ODM builds ship in 30 to 45 business days, depending on frame sizing and automated robotic cell integration.
- Support: Factory testing includes laser angle verification, full pre-export inspection, on-site commissioning, and complete user documentation.
