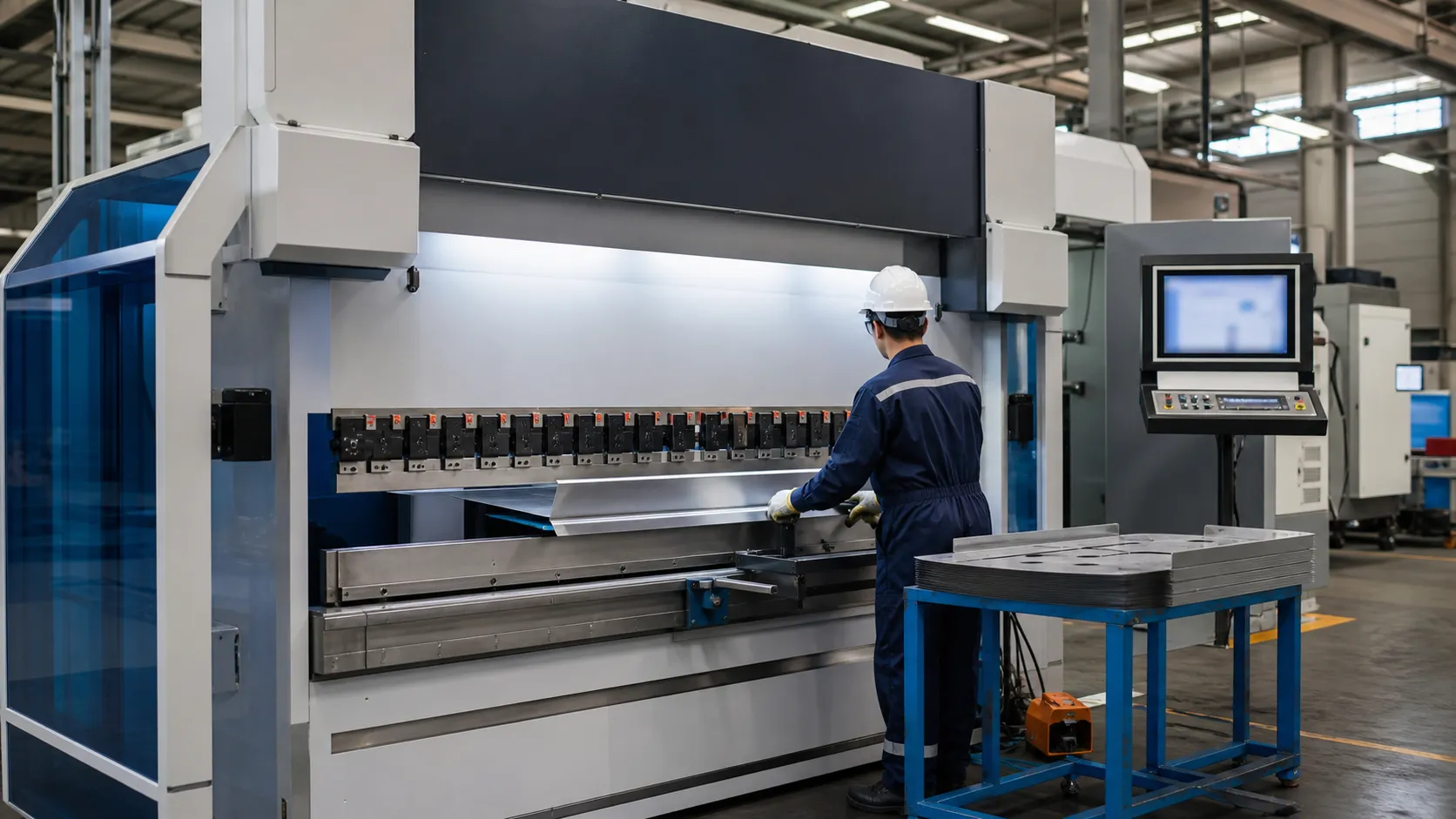

Overview
Automatic cnc bending machine platforms combine sheet metal panel bender accuracy with lights-out working cells—from servo bending beams to optional robot unloading.
- Shop profile: High-volume fab lines running electrical enclosures, HVAC ducting, and architectural cladding on 24/7 schedules.
- Primary materials: Mild steel, stainless, aluminum sheet stock from 0.5–12 mm with tight forming tolerances.
- Output target: Angle precision near ±0.3°, repositioning accuracy near ±0.01 mm, and 9 axis backgauge headroom for complex formed geometries.
Factory-direct builds pair electro-hydraulic or servo-electric drives with Delem-class controllers for repeatable sheet metal forming without manual setup bottlenecks.
Intelligent Automation — Working Cells, Loaders & Offline CAM
3D Off-Line CAD/CAM Software Integration
Every automatic cnc bending machine ships with intuitive 3D off-line software to streamline the workflow from CAD design straight to the final bend.
- Direct File Import: Instantly load STEP, IGES, and DXF files without manual data entry.
- Auto-Tooling & Sequencing: Software automatically selects optimal tool setups and calculates the fastest bend sequences for complex formed geometries.
- Collision Detection: Full 3D virtual simulation detects part-to-tool and part-to-frame collisions before touching raw material, eliminating costly scrap.
Automated Loading and Unloading Cell Compatibility
Upgrade the shop floor into a high-efficiency automated sheet metal bender cell designed for continuous high-volume production.
- 6-Axis Robot Integration: Interfaces with articulated robots for automatic loader intake, positioning, and robot unloading on panel stacks.
- Lights-Out Operation: Builds autonomous working cells with optional coil loading feeds for 24/7 panel runs.
CNC Automatic Sheet Follower Systems
Forming thin-gauge sheets or large-format panels on a servo sheet metal panel bender with CNC-controlled bending beams often leads to material sagging and whipping flaws. Heavy-duty CNC sheet supporters eliminate this issue entirely.
- Dynamic Speed Sync: Drives the support arms to match the exact ram speed during the bending stroke.
- Operator Safety & Support: Handles heavy structural loads automatically, taking physical strain off operators while maintaining precise tolerances across long sheet metal forming runs.
Controller, hydraulic, and safety hardware carry the precision targets set by the automation modules above.
Controller, Hydraulics & Drive Hardware Standards
Industrial hardware underpins sheet metal bending technology uptime shift after shift.
Delem DA-66T Controller Integration
Standard builds feature controllers like the Delem DA-66T controller (along with DA-58Tx and DA-69T) and ESA systems. These units give operators high-resolution, multi-touch 2D and 3D graphical programming right at the machine.
- Instant Visualization: Real-time 3D bend simulation reduces setup times and catches tool collisions before the ram ever moves.
- Intuitive Operation: Clean touchscreen controls help new operators get up to speed fast, cutting down training overhead.
Bosch Rexroth Hydraulics & High-Torque Servo Drives
A high-performance CNC press brake requires an equally responsive drive system. Proportional valve systems pair with high-torque servo drives for dynamic motion and long-term reliability.
- Proportional Hydraulics: Built with Bosch Rexroth and Hoerbieger proportional valve technology for smooth ram travel, energy efficiency, and strict repositioning accuracy.
- Servo Motors & Drives: Powered by Yaskawa, Panasonic, and Estun high-torque servo drives delivering fast response rates under heavy loads.
Schneider Electric Enclosures & Lazer Safe Optical Light Curtains
Operator safety and circuit reliability are essential for modern sheet metal bending technology and adjacent tube processing lines.
- Industrial Electrics: Dust-sealed Schneider Electric and Siemens components protect sensitive electronic controls from harsh shop environments.
- Optical Light Curtains: Integrated DSP and Lazer Safe optical light curtains allow high-speed ram approach to the pinch point without slowing automatic loader cycles.
| Hardware Component | Standard Equipment | Operational Benefit |
|---|---|---|
| CNC Controller | Delem (DA-58Tx / DA-66T / DA-69T) / ESA | Fast 2D/3D programming & automatic bend sequencing |
| Hydraulic Valves | Bosch Rexroth / Hoerbieger | Energy-efficient flow control & micro-inch positioning |
| Servo Drives | Yaskawa / Panasonic / Estun | Rapid axis acceleration & steady torque output |
| Safety Systems | DSP / Lazer Safe Optical Curtains | Full operator protection without slowing down cycle times |
Frame mass and crowning compensation keep beam deflection from eroding the hardware precision above.
Frame Rigidity & Multi-Axis Backgauge Engineering
Frame flex under full tonnage load ruins angle precision and tooling life. Stress-relieved steel and multi-axis backgauges protect repositioning accuracy across millions of cycles.
Heavy-Duty Frame & Structural Stability
Machine frame movement causes inconsistent bend angles along the full sheet length. Stress-relief and bed design address this at the foundation:
- Annealed Steel Structure: Every frame undergoes high-temperature tempering and stress-relief processing before machining.
- Zero-Deflection Design: Heavy-duty steel plates resist twisting and structural fatigue under maximum tonnage load.
- Long-Term Alignment: Machine beds hold precise mechanical geometry year after year without bed warping.
Multi-Axis Backgauge & Positioning Control
Bending complex formed geometries requires fast, flexible material stops and tight forming tolerances. The multi-axis CNC folding machine backgauges adapt to asymmetrical, custom setups instantly:
- Axis Options: Available in X, R, Z1, Z2, and Delta X configurations.
- Drive Mechanism: Precision ball screws and linear guides on CNC-controlled bending beams deliver exceptional forming tolerances.
- Asymmetrical Bending: Independent finger movement handles stepped, tapered, and off-center sheet metal parts with ease.
Mechanical Crowning Deflection Compensation (V-Axis)
Long sheet metal parts often suffer from angle variations in the center due to ram flex. The auto-crowning V-axis provides continuous mechanical crowning compensation to keep bend lines perfectly flat.
- Real-Time Calculations: The CNC controller automatically calculates ram and bed deflection based on sheet length, thickness, and material tensile strength.
- Mechanical Wedge System: Motor-driven precision wedges dynamically adjust the lower bed curve during the bend stroke.
- Uniform Angles: Delivers consistent angle precision across the entire bending length without manual shimming.
Core Engineering Technical Summary
| Technical Feature | Engineering Specification | Operational Advantage |
|---|---|---|
| Frame Construction | High-temperature annealed stress-relieved steel | Prevents frame warping and maintains long-term structural integrity |
| Backgauge System | Multi-axis (X, R, Z1, Z2, Delta X) ball screw drive | Enables rapid positioning for complex, multi-step geometries |
| Deflection Control | Automatic CNC mechanical crowning (V-Axis) | Eliminates mid-sheet angle variations for flat, straight bends |
Rated tonnage, bed length, and axis counts size the platform against typical panel and enclosure jobs.
Automatic CNC Bending Machine Technical Parameter Matrix
Compare this platform with the broader CNC bending machine catalog and the CNC bending machine for sheet metal line for legacy press-brake tiers.
| Key Performance Metric | Engineering Specification | Operational Impact |
|---|---|---|
| Angle Precision | High ±0.3° accuracy | Guarantees consistent bends and eliminates rework scrap |
| Repositioning Accuracy | Tight ±0.01 mm tolerance | Ensures tight-tolerance assembly across multi-thousand-part runs |
| Accelerated Ram Speed | Fast approach and return rates | Boosts daily throughput up to 40% over conventional CNC press brake systems |
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Nominal Force Capacity | 30T to 500T | Extended tonnage configurations |
| Bending Length | 1200 mm to 6000 mm | Tandem and custom bed sizes |
| Axis Configurations | 3+1 Axis | Up to 9-axis multi-axis setups |
| Repositioning Accuracy | ±0.01 mm | Servo-driven ball screw precision |
| Angle Precision | ±0.3° | Dynamic mechanical auto-crowning |
Rated force, bed length, and axis packages size each build against daily panel mix and automation tier.
Performance Specifications
Core Capability Highlights
- Scalable Tonnage Range: Builds span compact 30T units for intricate enclosures up to heavy-duty 500T press brakes for structural plate processing.
- Versatile Axis Control: Choose a streamlined 3+1 axis build or expand to a 9 axis advanced system for complex formed geometries and dynamic backgauge positioning.
- Repeatable Tolerances: Ensure zero-scrap sheet metal forming with ±0.01 mm repositioning accuracy and tight ±0.3° angle precision across every bend cycle.
OEM programs extend the same automation stack to custom throat depths, tooling, and export power.
Sheet Metal Forming Applications Across Industrial Sectors
High-volume sectors rely on repeatable sheet metal forming for enclosures, ducting, transportation parts, and scratch-free architectural panels.
Electrical Enclosures & Cabinets
See also how a CNC bending machine works for punch-and-die cycle basics on enclosure jobs.
- Precision Enclosures: Form crisp 90° bends, tight hemmed edges, and multi-step offset boxes with high repeatable angle precision.
- Seamless Assembly: Eliminate manual alignment hassle so cabinet doors and panels latch seamlessly every single time.
HVAC & Architectural Metalwork
- Ducting & Cladding: Process air ducts, metal wall cladding, and suspended ceiling panels at maximum cycle speeds.
- Structural Frames: Form long structural door frames and trim profiles without mid-span distortion or angle drift.
Automotive, Transportation & Tube Processing
- High-Tensile Steel: Easily handle heavy chassis reinforcements, bus body structures, and rail components.
- Tight Repositioning Tolerances: Maintain exact repositioning accuracy across multi-axis bends; adjacent mandrel tube bender cells can share the same tube processing QA protocol.
Commercial Kitchen & Elevator Panels
- Scratch-Free Surface Quality: Form brushed stainless steel, aluminum, and galvanized sheet stock without leaving tool marks.
- Architectural Aesthetics: Produce flawless, mirror-finish elevator interiors, commercial counters, and exposed wall panels.
Custom OEM/ODM Engineering for Automated Bending Lines
Custom OEM/ODM scopes cover throat depth, open height, tooling, and export voltage when catalog beds do not fit the line layout.
Step 1: Application & Material Consultation
Application review covers material dynamics and volume targets:
- Material Dynamics: Bend radii, tensile strength, and thickness limits across steel, stainless, and aluminum stock.
- Volume Targets: Workflow review to match targeted daily output and cycle times.
Step 2: Tailored Machinery & Tooling Design
Custom builds integrate into existing sheet metal bending technology layouts with modifiable throat depths, open heights, and segmented tooling.
| Engineering Phase | Custom Options & Standards | Operational Benefit |
|---|---|---|
| Throat Depth & Open Height | Custom frame dimensions up to 800 mm | Accommodates deep box profiles and large flanges |
| Tooling & Dies | Segmented, quick-change, or custom radius tooling | Eliminates setup downtime across job changes |
| System Power | 208V / 230V / 480V 60Hz export electricals | Plug-and-play installation with documented voltage maps |
Step 3: Precision Manufacturing & Rigorous Testing
Factory acceptance covers ISO9001 build discipline, laser interferometer checks, and full-load bench validation before crating.
Step 4: Global Shipping, Commissioning & Hands-On Training
Export logistics include moisture-proof crating, on-site leveling, robotic working cells integration, and operator training on 3D programming.
OEM pricing covers bed length, tonnage, axis count, and automation scope for a quality automatic cnc bending machine—contact ProMach with STEP/DXF bend profiles and controller preference for factory quote timing.
Automatic CNC Bending Machine FAQ & Technical Support
Maintenance, calibration, and tooling answers for plant managers running automated press-brake lines.
Quick Technical & Operational Reference
| Operational Focus | Target Standard | Maintenance & Calibration Protocol |
|---|---|---|
| Angle Precision & Calibration | ±0.3° Bending Tolerance | Auto-compensation runs continuously; laser interferometer checks recommended annually. |
| Backgauge Repositioning | ±0.01 mm Accuracy | Weekly guide-rail cleaning and automatic central lubrication for high-precision ball screws. |
| Quick-Change Tooling Setup | < 3 Minute Swaps | Hydraulic top/bottom clamping systems minimize setup time between custom runs. |
| Hydraulic & Servo Maintenance | 24/7 Continuous Duty | Fluid temperature monitoring, valve checks, and filter replacements every 2,000 operating hours. |
Routine Maintenance & Tooling Adjustments
Keeping the automatic cnc bending machine dialed in requires simple, proactive routines:
- Tooling Inspection: Check punch and die surfaces regularly to prevent wear patterns that compromise repositioning accuracy and surface finish on stainless or aluminum.
- Mechanical Crowning Calibration: Periodically verify the V-axis auto-crowning settings to ensure consistent angle depth across the full bed length.
- Drive System Care: Inspect servo motors and proportional valves to maintain fast ram movement and smooth decelerations during heavy sheet metal forming technology operations.
Direct Technical Specification Validation for Plant Managers
If Facilities manufacturing complex formed geometries, high-tensile chassis parts, or integrates automated working cells with robot unloading, our application engineers validate job specs prior to machine configuration.
- 24-Hour Blueprint Review: Submit STEP, IGES, or DXF files for automated bend sequence validation, dynamic collision detection, and tonnage calculation.
- Tailored Engineering Configs: Engineering teams adjust stroke length, open height, throat depth, and multi-axis backgauges (up to 9 axes) to match exact part geometry.
- Direct Factory Validation: Deal directly with our engineering team to review cycle times, target daily yields, and custom tooling requirements before production begins.

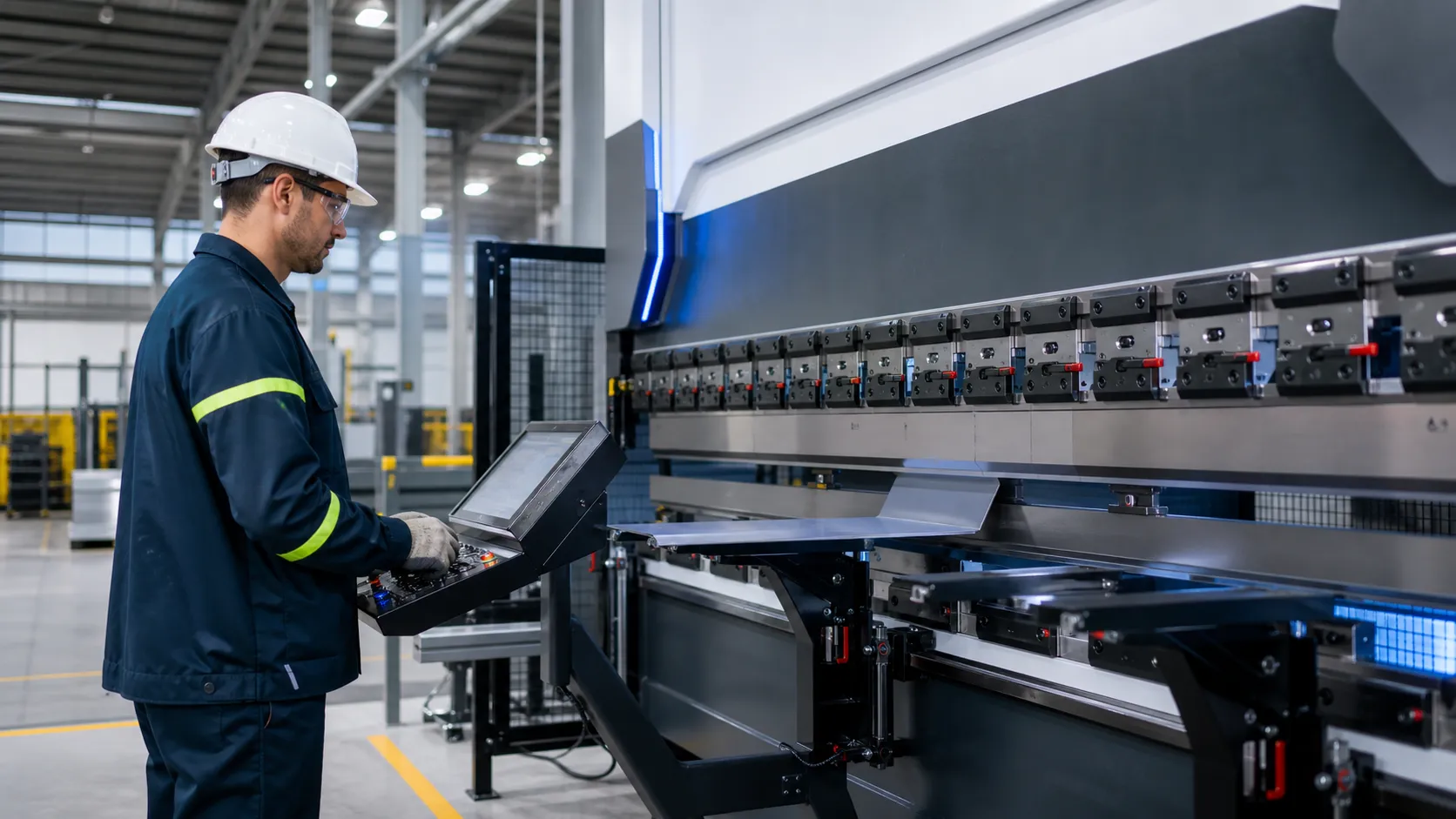

Purchasing Terms & Factory-Direct Programs
Simple Procurement for Every Production Line
Factory-direct terms help teams buy automatic cnc bending machine packages with clear MOQ, quote timing, and warranty scope.
| Procurement Feature | Standard Terms & Specifications |
|---|---|
| Minimum Order Quantity (MOQ) | 1 Set — Accessible baseline entry for job shops and high-volume plants. |
| Quote Turnaround Time | Detailed, itemized ex-factory quote delivered within 1–2 business days. |
| Global Warranty Coverage | 2-Year full warranty on heavy-duty structural frames and CNC controllers. |
Reassuring After-Sales Support
When teams buy automatic cnc bending machine builds ex-factory, long-term reliability includes:
- Fast-Dispatch Spare Parts: Critical replacement components ship via priority global channels to eliminate unexpected downtime.
- Direct Technical Guidance: Access to experienced field engineers for setup validation, tooling questions, and troubleshooting.
- Transparent Cost Structure: Clear line-item pricing with zero hidden fees for accurate capital budgeting.
