Overview

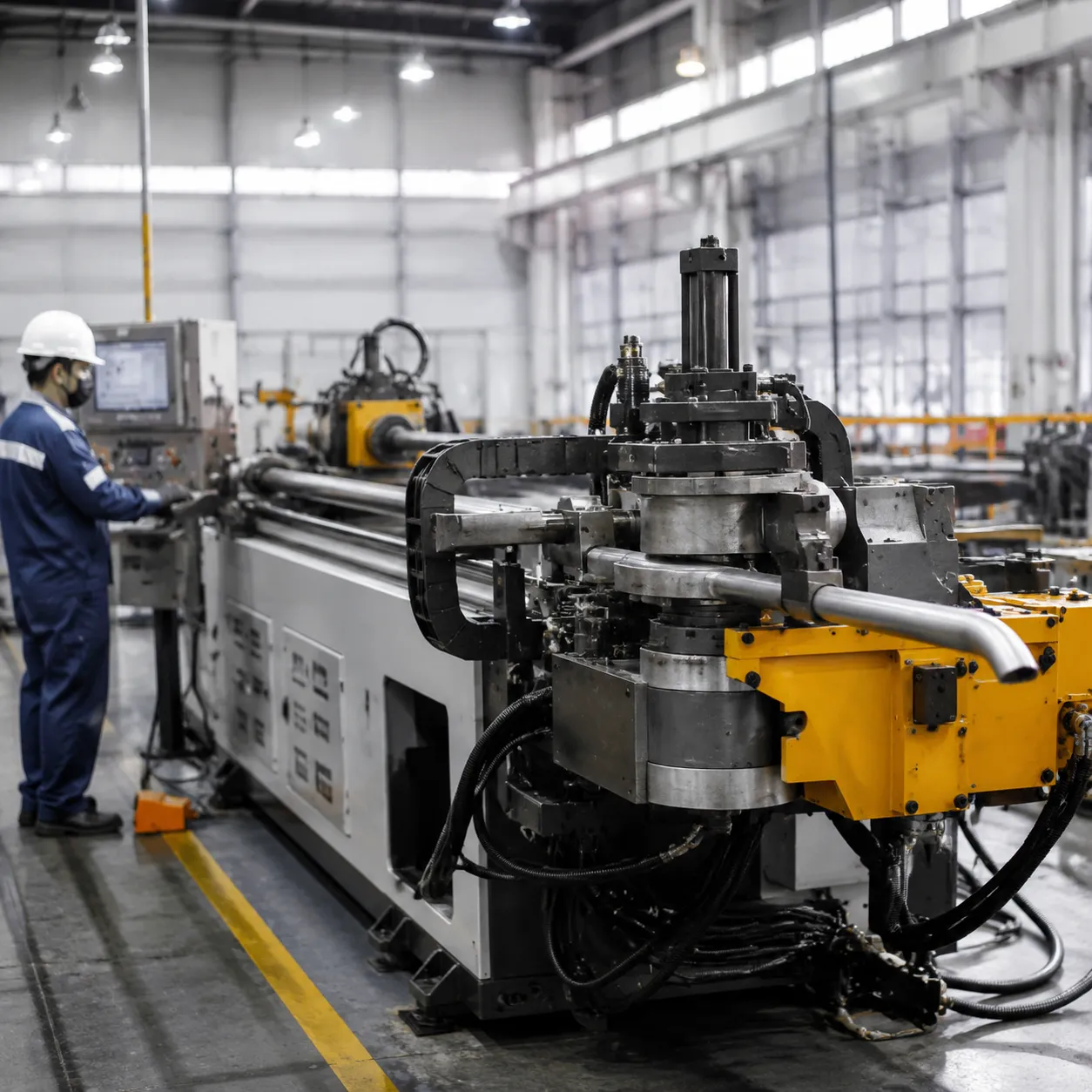

CNC rotary cold bending machines combine mandrel-supported rotary draw tube bending with repeatable high precision cold forming for continuous metal tubing fabrication lines.
±0.3° bend angle · ±0.01 mm repositioning · electric series CNC bender or 40T–1000T+ hydraulic drive tiers

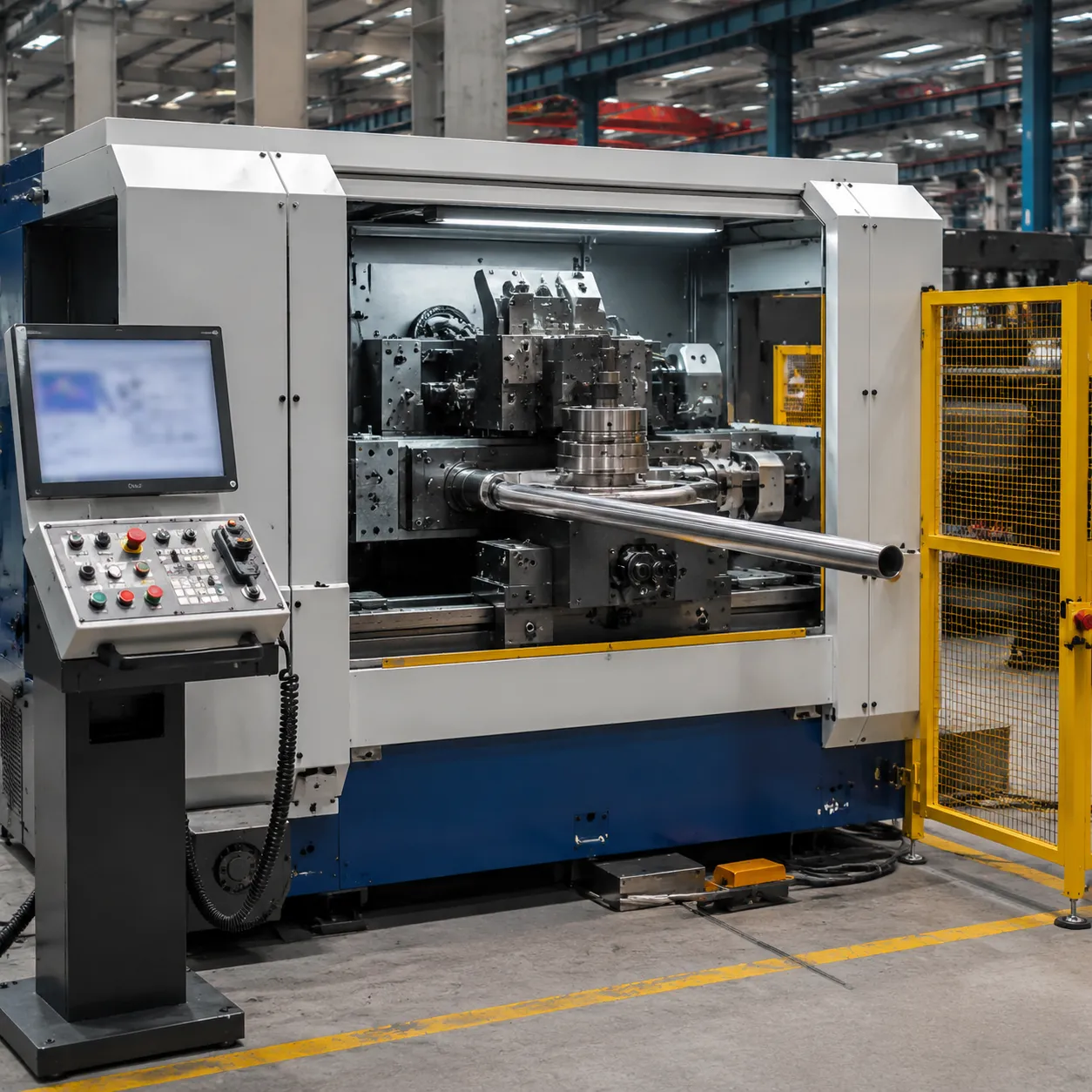

High-Precision Cold Forming in CNC Rotary Cold Bending Machines
Thermal distortion and material fatigue ruin tight-tolerance tube runs when heat-based methods replace mechanical high precision cold forming; rotary cold platforms eliminate heat-induced stress while keeping high-speed production lines running continuously.
Next-Generation Cold Rotary Bending Efficiency
Advanced cold-draw processing delivers flawless profile and tube bends without compromising structural integrity. Built to strict ISO9001 and CE-certified manufacturing standards, machines offer full global industrial compliance and immediate integration into demanding production environments.
Core Performance Benchmarks
- Bending Angle Precision: Up to ±0.3° for exact repeatability on long production runs.
- Repositioning Accuracy: Down to ±0.01 mm for extreme-tolerance fabrication.
- Flexible Tonnage & Drive Capacity: Electric servo drives or robust hydraulic configurations ranging from 40T to 1000T+.
Advanced Tooling Mechanics for CNC Rotary Cold Bending Machines
Tooling for cnc rotary cold bending machines targets metal tubing fabrication challenges—compare integrated CNC machine bending systems when tube and sheet lines share one controller backbone.
| Material Type | Bending Setup | Key Benefit |
|---|---|---|
| Carbon Steel | Mandrel + Rotary Draw | Zero wall distortion on structural profiles |
| Stainless Steel | Multi-Stack + Wiper Die | High springback control & clean outer finish |
| Aluminum Alloys | Mandrel Tight Radius Bender | Eliminates surface marring and profile collapse |
| Copper Busbars | Flat-Bar Rotary Bending | Preserves structural density and electrical flow |
| Structural Alloys | High-Tonnage Cold Bender | Exact repeatability on heavy structural sections |
Rotary Draw Tube Bending with Mandrel Systems
- Tight Radius Bending: Rotary draw tube bending process handles tight-radius bends down to 1xOD without compromising material strength.
- Zero Deformation: Platforms integrate mandrel tube bender and non-mandrel configurations that stop tube flattening, wrinkling, and wall collapse before they happen.
- Smooth Surface Finish: Precision wiper dies and pressure dies ensure clean aesthetic profiles on visible structural parts.
Multi-Stack Dies and Dual-Direction Bending
- Multi-Stack Tooling: Combine multiple bend radii on a single workpiece setup to trim cycle times and eliminate extra part handling.
- Dual-Direction Bending: Switch seamlessly between clockwise and counter-clockwise rotary directions to produce continuous, complex 3D spatial profiles.
- Multi-Axis Motion: Automated shift axes transition instantly between die stacks for high-speed production runs.
Technical Specifications Matrix for CNC Rotary Cold Bending Machines
Core hardware on cnc rotary cold bending machines spans bench-scale pipe bender tiers through heavy structural profile bending machine frames with standardized drives and control backbones.
| Model Series | Max Tube/Profile OD | Wall Thickness Range | Max Bend Angle | Machine Tonnage |
|---|---|---|---|---|
| RCB-40 | 1.5 in (38.1 mm) | 0.04 – 0.12 in (1.0 – 3.0 mm) | 180° | 40T |
| RCB-100 | 3.0 in (76.2 mm) | 0.06 – 0.20 in (1.5 – 5.0 mm) | 180° | 100T |
| RCB-300 | 6.0 in (152.4 mm) | 0.10 – 0.38 in (2.5 – 9.5 mm) | 180° | 300T |
| RCB-1000 Heavy | 12.0 in (304.8 mm) | 0.16 – 0.63 in (4.0 – 16.0 mm) | 180° | 1000T+ |
Control Systems & Software Integration
- Industrial Controller Compatibility: Pre-configured out of the box to run seamlessly with industry-standard controllers, including Delem, ESA, and Cybelec.
- Direct 3D CAD File Importing: Load STEP and IGES 3D files straight into the interface to auto-generate precise bend sequences without manual programming.
- Automatic Springback Compensation: Smart algorithms calculate material springback in real time, locking in target angles on the first pass and eliminating scrap.
Drive Systems & Energy Efficiency
- Electric series CNC bender drives on RCB-40 and RCB-100 lines cut energy use up to 40% versus fluid-power-only cells while holding ±0.3° repeatability.
- Hydraulic pipe bender tiers (RCB-100 through RCB-1000 Heavy) deliver high-tonnage force for thick-wall structural tube and heavy profile bending machine sections.
- Hybrid servo-hydraulic: merges hydraulic pipe bender torque with servo angle control for springback-critical stainless and aluminum runs.
Automation & Work Cell Integration for CNC Rotary Cold Bending Machines
Work cell integration on cnc rotary cold bending machines links chipless rotary cut off, loading, and automated tube fabricating system modules—see automatic CNC bending machine cells when robotic batching is required.
Automated Tube Fabricating Systems
- Chipless Rotary Cut-Off: Pairs directly with bending units to deliver clean, burr-free edges without metal shavings or inner wall contamination.
- Automated Loading and Unloading: Heavy-duty pneumatic and robotic arms feed raw stock into the machine and extract finished parts continuously.
Continuous 24/7 Production Cells
- Robotic Workholding Indexer: Securely grips, turns, and reposition complex tube geometries mid-process without losing reference points.
- Lights-Out Manufacturing: Designed for unmanned 24/7 operations, supporting steady high-volume plant output with zero downtime.
Rotary Indexing, 4th Axis Rotary Table Coordination, and 5th Axis Machining Alignment
- 4th axis rotary table indexing rotates tube stock between bend planes without losing encoder reference—functionally similar to a workholding indexer on multi-plane exhaust and chassis runs.
- 5th axis machining coordination synchronizes feed, rotation, bend, and shift axes so complex 3D profiles match CAD targets on the first qualified cycle.
- Workholding indexer grippers secure thin-wall tube during dual-direction rotary moves on continuous automated tube fabricating system lines.
Multi-Axis Motion Control
- Synchronized 3-Axis to 5-Axis Control: Coordinates feeding, rotation, bending, and vertical/horizontal shift axes simultaneously.
- High-Speed Repeatability: Advanced servo drives maintain precise motion alignment across every axis, ensuring identical bend profiles from the first part to the last.
CNC Rotary Cold Bending Machine Applications
These cnc rotary cold bending machines meet strict tolerances across automotive, HVAC, architectural, and aerospace metal tubing fabrication—review how a CNC bending machine works for axis and tooling fundamentals on adjacent bending platforms.
Automotive & Transportation
- Exhaust & Chassis Systems: Precision rotary draw tube bending and pipe bender modules for complex exhaust pipes and structural chassis frames.
- Fluid & Brake Lines: High-repeatability bends on small-diameter tubing with zero wall thinning or cracking.
HVAC & Refrigeration
- Multi-Bend Coil Piping: Fast, continuous cold bending for copper and aluminum tubing coils.
- Tight-Radius Heat Exchangers: Smooth bends without kinks, maintaining maximum refrigerant flow efficiency.
Architectural & Structural Metalwork
- Facade Profiles: Custom profile bending machine and tight radius bender setups for architectural accents and curved frames.
- Heavy Structural Bending: Reliable cold-forming for high-strength steel beams, channels, and heavy-wall structural pipes.
Aerospace & Defense
- Hydraulic Lines: Precision forming for thin-walled titanium and stainless steel aircraft tubing.
- High-Tolerance Assemblies: Strict ±0.3° angle accuracy for mission-critical fluid distribution networks.
OEM Engineering and Factory Support for CNC Rotary Cold Bending Machines
Factory engineering on cnc rotary cold bending machines covers custom die stacks, acceptance testing, and worldwide installation support for integrated automated tube fabricating system lines.
| Validation Phase | Testing Process | Performance Standard |
|---|---|---|
| System Calibration | Axis alignment, drive synchronization, and sensor calibration | Repositioning accuracy down to ±0.01 mm |
| Trial Run Bending | Test bends using your exact CAD profiles and materials | Angle tolerances held within ±0.3° |
| Factory Acceptance | Pre-shipment continuous cycle and pressure testing | 100% operational sign-off prior to delivery |
OEM and ODM Custom Engineering
Custom tooling die setups and tailor machine dimensions around your exact production requirements:
- Custom Footprints: Frame dimensions, bed lengths, and axis clearances engineered to match your plant layout.
- Specialized Tooling: Custom wiper dies, pressure dies, and mandrel tube bender setups for high precision cold forming.
- Tailored Mechanics: Clamping mechanics modified for ultra-thin walls, heavy-wall structural profiles, or delicate alloys.
End-to-End Global After-Sales Service
After-sales teams stay connected long after installation to keep the automated tube fabricating system running at full capacity:
- On-Site Setup: Factory technicians handle complete machinery installation, anchoring, and system integration.
- Operator Training: In-depth training programs for operator teams covering multi-axis controls, die changes, and CAD file imports.
- Technical Support & Spare Parts: Immediate access to remote troubleshooting and fast delivery of original OEM spare parts.
Share tube OD range, bend schedules, and automation scope for itemized cnc rotary cold bending machines pricing—Contact ProMach with STEP/IGES profiles and drive preference.
Frequently Asked Questions
Direct answers on cold versus hot forming, springback compensation, materials, and pipe bender selection for cnc rotary cold bending machines.
| Question | Answer |
|---|---|
| Cold Rotary Bending vs. Hot Bending | Cold rotary draw tube bending uses mechanical force at ambient temperature, preserving material integrity and surface finish with fast cycle times. Thermal hot bending applies flame or induction heat, raising warping, scaling, and metallurgical change risk with slower heat-cool cycles. |
| How Automatic Springback Compensation Works | Metal memory causes tubes to spring back after pressure releases. Control software addresses springback directly:
|
| Pipe Bender vs Mandrel Tube Bender Selection | Round pipe bender and mandrel tube bender configurations share the same rotary draw tube bending backbone: mandrel setups hold tight radius bender CLR down to 1×OD; non-mandrel hydraulic pipe bender tiers suit 2×OD–3×OD runs on standard wall thickness. |
| Compatible Materials for CNC Rotary Cold Bending Machines | These cnc rotary cold bending machines form a broad range of round, square, and extruded profiles without material failure:
|
| Minimum Bend Radius Without Deformation | Using a full mandrel tube bender configuration, mandrel setups consistently achieve a tight radius bend down to 1xOD (centerline radius equal to 1x the tube outer diameter) without tube flattening, collapse, or wrinkling. For non-mandrel applications, a 2xOD to 3xOD radius maintains structural shape across standard wall thicknesses. Send material samples and bend schedules via Contact ProMach for mandrel tooling layout and cycle-time validation. |
