Overview
Capacity: cnc bending machine for hard metal lines from 40T to 1000T+ for high carbon steel, stainless alloys, and structural plate with ±0.3° bending angle control.
Control: DELEM system DA-53T / DA-66T / DA-69T on hydraulic press brake frames with multi-axis backgauge system positioning.
Fabrication scope: press brake machine duty for sheet metal fabrication, automated panel bending cells, and heavy structural steel bender tandem layouts.

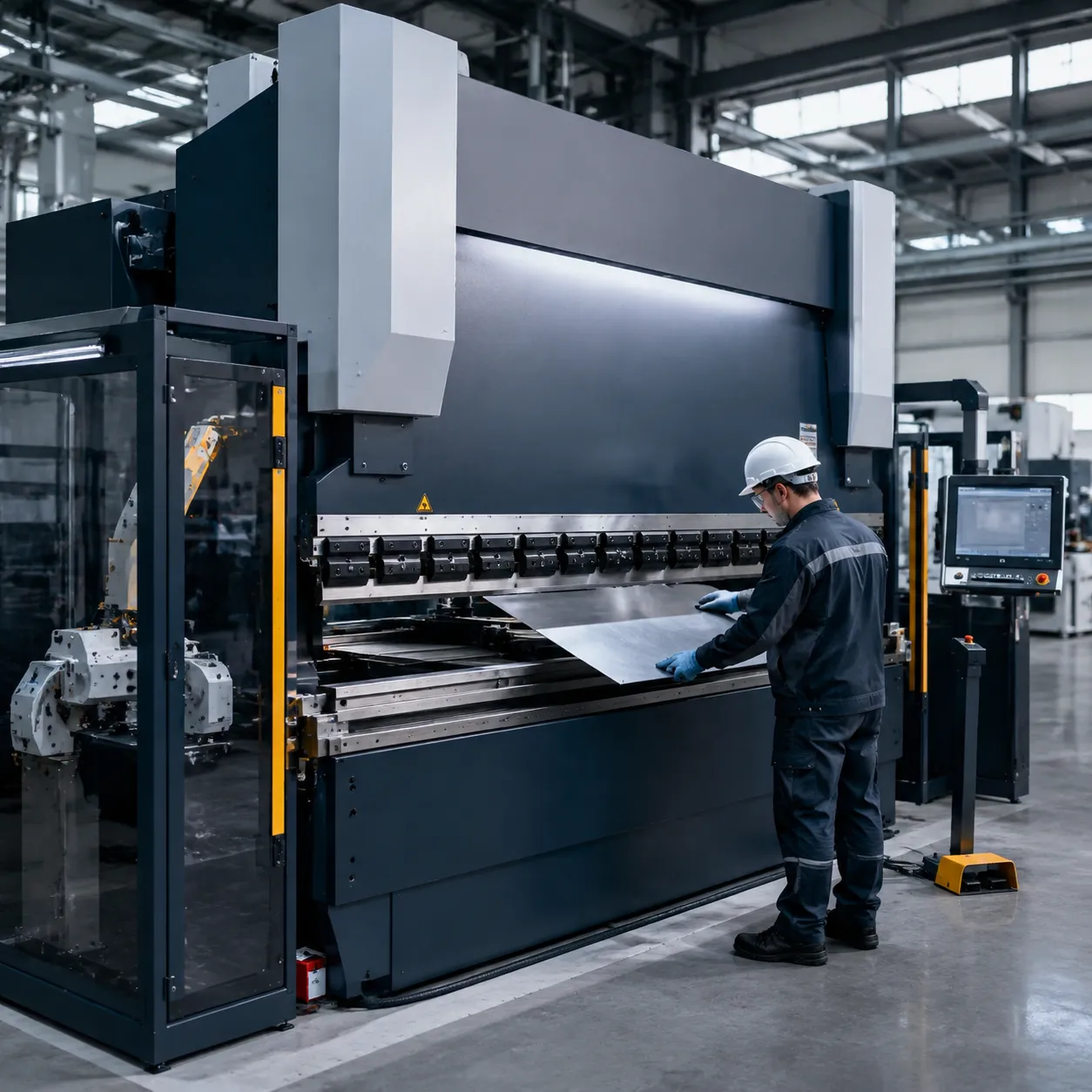

CNC Bending Machine for Hard Metal — Press Brake Machine Overview
Core Performance Specs
- Bending Capacity: 40T – 1000T+ (Custom tandem options available)
- Angle Accuracy: ±0.3°
- Repositioning Precision: ±0.01 mm
Advanced Drive & Control System Options
| Category | Available Options | Core Advantage |
|---|---|---|
| Drive Systems | Electro-Hydraulic Synchro / Hybrid / Servo-Electric | Optimal power distribution, energy savings, and rapid cycle times |
| CNC Controllers | Delem (DA-53T / DA-66T / DA-69T), ESA, Cybelec | Full 2D/3D visual simulation, real-time angle correction, and offline CAD/CAM support |
Bending Hard Metals with Precision
Bending high-tensile steel, Hardox, or stainless alloy plate puts extreme stress on machinery. Standard equipment flexes under load, causing uneven angles and die wear. This cnc bending machine for hard metal resists frame twist, masters severe springback, and maintains bending angle control on high-tensile plate. For lighter-gauge lines, compare the CNC bending machine for sheet metal platform.
Heavy-duty frames target Hardox, stainless, and alloy plate where standard press brake machine duty falls short.
Heavy-Duty Rigid Frame Construction
- FEA-Optimized Steel Frame: Built using Finite Element Analysis, our annealed, stress-relieved mono-block steel frames resist structural distortion under maximum loads.
- Built for Tough Materials: Maintains structural integrity and laser-accurate alignment during high-tonnage sheet metal fabrication.
Advanced Springback & Deflection Control
- Dynamic Crowning System: Automatically calculates beam deflection and adjusts the dynamic crowning table in real time.
- Precise Bending Angle Control: Delivers identical bend angles across the entire bed length, regardless of material yield strength variations.
Dual-Drive Systems for Maximum Efficiency
| Drive System | Ideal Application | Key Advantage |
|---|---|---|
| Electro-Hydraulic Synchro Drive | Heavy plate steel up to 1"+ (25mm+) | Maximum tonnage, precise Y1/Y2 synchronization, and heavy-duty durability |
| Servo-Electric Drive | Thin-to-medium gauge hard alloys | High-speed cycle times, precision repeatability, and reduced power consumption |
Technical Specifications Matrix
| Feature / Spec | Standard Precision Series | Heavy-Duty Hard Metal Series | Automated Panel Bender Series |
|---|---|---|---|
| Bending Force Range | 40T – 250T | 300T – 1000T+ (Tandem options) | 30T – 150T |
| Bending Length | 1250mm – 3200mm | 3200mm – 8000mm+ | 1500mm – 2500mm |
| Backgauge System | 2-Axis / 4-Axis AC Servo | 4-Axis / 6-Axis (X, R, Z1, Z2, Delta X) | Automated Sheet Manipulator |
| Repeatability | ±0.01 mm | ±0.01 mm | ±0.008 mm |
| CNC Controllers | DELEM DA-53T / ESA S630 | DELEM DA-66T / DA-69T 3D / Cybelec | Custom Multi-Axis Industrial PC |
| Hydraulic Valves | German Rexroth / Hoerbiger | High-Flow German Hoerbiger Synchro | Hybrid Servo-Hydraulic / Electric |
Catalog press brake machine lines match power, bed length, and cycle speed to job mix. The matrix compares Standard Precision, Heavy-Duty Hard Metal, and panel bender series for metalworking equipment selection.
Core Hardware & Control Highlights
- Proportional Hydraulic Control: Systems pair German Rexroth and Hoerbiger valve systems with dual optical encoders to monitor Y1/Y2 cylinder alignment in real time.
- Advanced Multi-Axis Backgauge: Precision ball screws and linear guides deliver quick, accurate positioning for complex bends on high-strength alloys.
- Intuitive DELEM Systems: Touchscreen controllers simplify complex sheet metal fabrication with 2D/3D visual programming and automatic collision checks.
- Heavy-Plate Flexibility: Need extreme lengths? Our heavy-duty hydraulic press brake setups link in tandem to handle long structural steel plates effortlessly.
Core Features — Hydraulic Press Brake and Tooling System
Heavy-duty hydraulic press brake systems tackle high-yield alloys and high carbon steel without losing precision across every cycle.
| Feature | Technology Standard | Key Advantage |
|---|---|---|
| Y1/Y2 Synchronization | Proportional valves & optical linear encoders | Real-time ram alignment for consistent bend angles |
| Dynamic Crowning | Automatic CNC hydraulic/mechanical table | Offsets beam deflection to eliminate middle-flare |
| Multi-Axis Backgauge | AC servo motors with precision ball screws | Rapid, exact sheet positioning (X, R, Z1, Z2, Delta X) |
| Hardened Tooling | Induction-hardened alloy tool steel (HRC 55–60) | Extended die life when forming Hardox and stainless steel |
Key Performance Features At a Glance
Heavy-Duty Engineering for Tough Fabrication
- High-Tonnage Electro-Hydraulic Synchronization: Dual Y1/Y2 cylinders are monitored independently by high-resolution optical linear encoders. Proportional valve technology adjusts oil flow in real time, maintaining perfect parallelism even under severe off-center loading.
- Automatic Deflection Compensation: High-tonnage strokes cause natural frame flex. Integrated dynamic crowning tables automatically offset bed deflection, maintaining identical bend angles across the entire length.
- Multi-Axis CNC Backgauge System: Driven by high-speed AC servo motors and linear guides, our backgauge supports full 2-axis to 6-axis configurations for effortless handling of complex, multi-bend geometries.
- Hardened Tooling System & Quick Clamping: Standard dies are induction-hardened to HRC 55–60 to withstand abrasive high-tensile metals. Compatible with Wila, Promecam, and European fast-clamping setups to drop setup times significantly.
Smart CNC Controllers & 3D Simulation
Standard builds equip every cnc bending machine for hard metal with intuitive, high-performance control systems like the Delem DA-69T and DA-66T. These touchscreen interfaces eliminate guesswork on complex hard-alloy jobs. Baseline CNC bending machine DA53T cells share the same DELEM system programming backbone for shop-floor repeatability.
Delem Touchscreen Controls
- 3D Graphical Simulation: Visualizes the full forming process in vivid 2D and 3D before a single sheet is bent.
- Auto Bend Sequence Calculation: Calculates the optimal bending sequence automatically to save operator time and minimize manual sheet handling.
- Real-Time Collision Detection: Identifies potential interference between the part, dies, and machine frame before running the job, protecting the tooling system.
Streamlined CAD/CAM Offline Programming
Offline programming keeps the hydraulic press brake forming while files are prepared off-line. Our offline software lets engineering teams prep files from the office while the hydraulic press brake keeps production moving.
- Direct File Imports: Import STEP, IGES, and DXF files directly into the offline environment without manual re-keying.
- Rapid Setup: Generates complete tool setups and bending programs automatically, cutting setup times significantly on short runs.
Integrated Hard Metal Material Libraries
High-tensile materials react differently under tonnage on a stainless steel bender line. Pre-programmed libraries store material profiles designed specifically for stainless steel, high-strength structural steel, and tough alloys.
- Automated Springback Compensation: Adjusts depth positioning based on material yield strength for strict bending angle control.
- Scrap Reduction: Delivers precise bends on the first try, virtually eliminating test bends and wasted stock on expensive materials.
Automation & Smart Factory Upgrades
To boost output and trim labor costs, we build advanced smart factory options into every cnc bending machine for hard metal setup we offer. These upgrades keep the shop floor running efficiently while eliminating operator fatigue on heavy, high-tensile jobs.

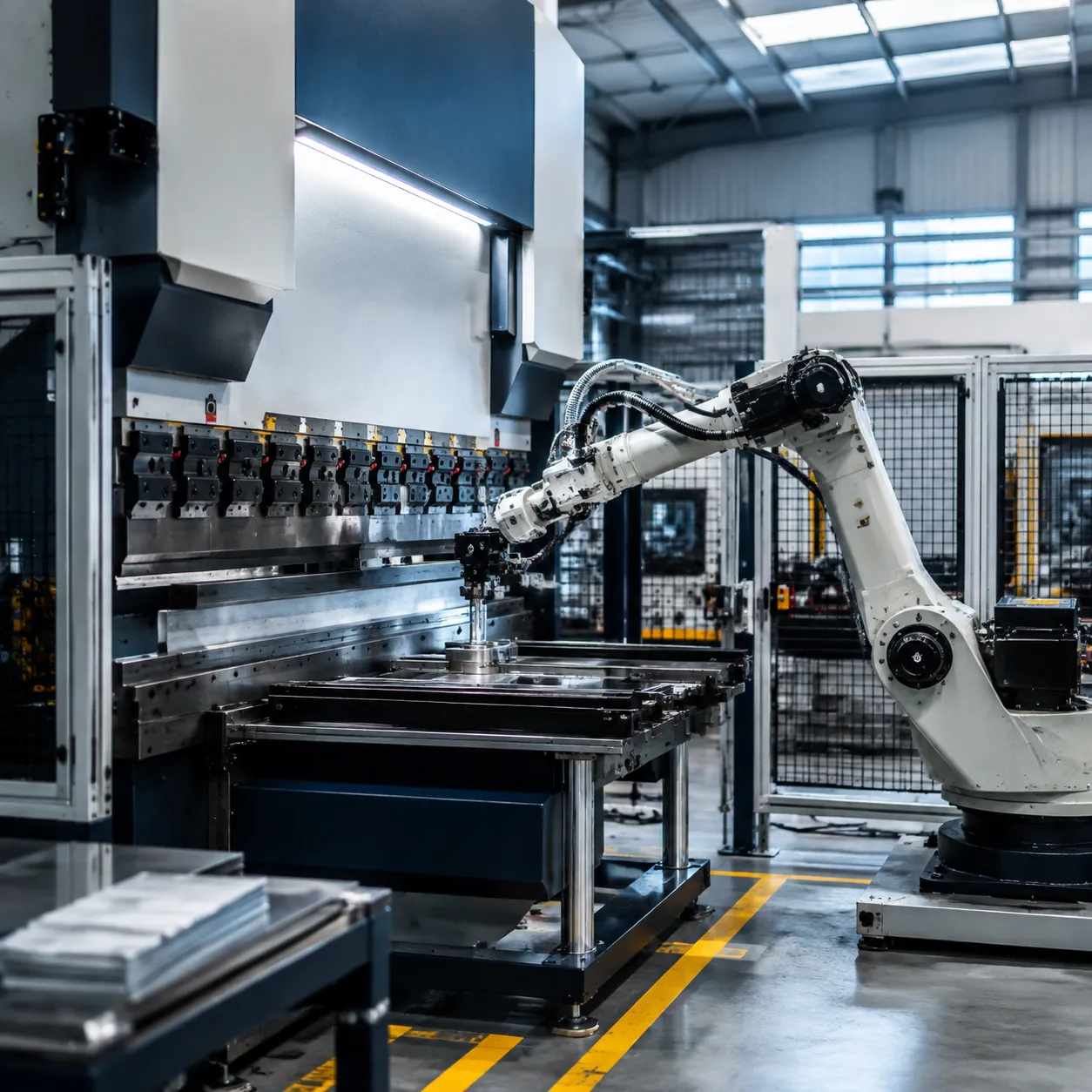

24/7 Continuous Panel Bending Cells
Our automated panel bender configurations streamline your entire process:
- Self-Operating Workflow: Automated sheet feeding, rotation, and multi-axis bending run continuously with minimal human intervention.
- Non-Stop Production: Keep high-volume structural steel and stainless alloy runs moving around the clock.
Robotic Bending Integration
Handling thick hard metal plates manually is slow and dangerous. Optional 6-axis robotic arm tending to automate material handling:
- Heavy-Duty Tending: Easily loads and unloads dense, high-yield metal sheets.
- Consistent Positioning: Holds heavy parts firmly in place for precise backgauge alignment every time.
- Enhanced Safety: Reduces direct physical contact with sharp edges and high-tonnage workpieces.
Tube and Pipe Bending Integration
Optional tube pipe bending modules extend the same industrial machinery platform to round tube and pipe profiles with mandrel-ready tooling interfaces.
Industry 4.0 Connectivity
Stay in full control of the shop floor through enterprise-ready networking:
- Protocol Support: Built-in Modbus and Ethernet/IP protocols ensure fast integration with ERP or MES systems.
- Predictive Maintenance: Cloud-based telemetry tracks hydraulic performance, component wear, and system diagnostics to stop downtime before it happens.
- Real-Time Data: Monitor job progress, cycle times, and operational metrics remotely from any device.
Quality Assurance & Custom OEM/ODM Services
High-yield materials demand certified safety and structural reliability on every cnc bending machine for hard metal shipment.
Certified Standards & Operator Safety
- ISO9001 Management: Built under strict quality control systems to ensure long-term structural integrity.
- CE Safety Compliance: Upgraded with premium DSP / FIESSLER laser safety light curtains for maximum operator protection during heavy-duty sheet metal fabrication.
Tailored Engineering for Your Shop
Standard setups don't fit every application. Complete OEM/ODM customization for our hydraulic press brake platforms:
- Custom Dimensions: Adjustable bed lengths, extended throat depths, and custom open heights to accommodate complex bending sequences.
- Tandem Configurations: Connect two units synchronously to create an extra-long structural steel bender setup for heavy plate work.
Controller fundamentals align with how a CNC bending machine works across mixed sheet metal fabrication cells.
Reliable Support & Field Service
Post-sale support keeps industrial machinery running at peak performance with comprehensive post-sale support:
- Remote Diagnosis & Updates: Real-time software troubleshooting and controller updates over the cloud.
- On-Site Installation: Full field commissioning, system calibration, and operator training by qualified service engineers.
- Rapid Parts Supply: Quick distribution of OEM components and specialized tooling system hardware to prevent operational downtime.
Share plate thickness, tonnage target, bed length, and controller tier for itemized cnc bending machine for hard metal pricing—Contact ProMach with material specs, V-die opening, and tandem layout requirements.
CNC Bending Machine for Hard Metal FAQ
Direct answers on Hardox tonnage, springback control, custom tooling, and automated panel bending versus press brake machine duty.
| Question | Answer |
|---|---|
| What Tonnage Is Needed for Hardox or 316 Stainless Steel? | Bending high-yield alloys like Hardox or 316 stainless steel requires significantly more force than mild steel. Hard metals demand 1.5 to 3 times the tonnage of standard carbon steel depending on plate thickness, tensile strength, and die opening width. Tonnage comparison for cnc bending machine for hard metal:
|
| Does Automated Panel Bending Replace Press Brake Machine Duty? | Automated panel bending suits high-volume box panels and repetitive flanges. Heavy plate Hardox and thick stainless still rely on high-tonnage press brake machine frames with dynamic crowning and hardened tooling system packs. |
| How Do These Machines Handle Severe Material Springback? | High-tensile plate pushes back hard after pressure is released. Three primary technologies eliminate guesswork and scrap parts:
|
| Can These Machines Accommodate Custom Tooling Setups? | Yes. Heavy-duty frames accept a wide variety of standard and custom tooling packages:
Send Hardox or stainless gauge data via Contact ProMach for tonnage verification and tooling system layout review. |
