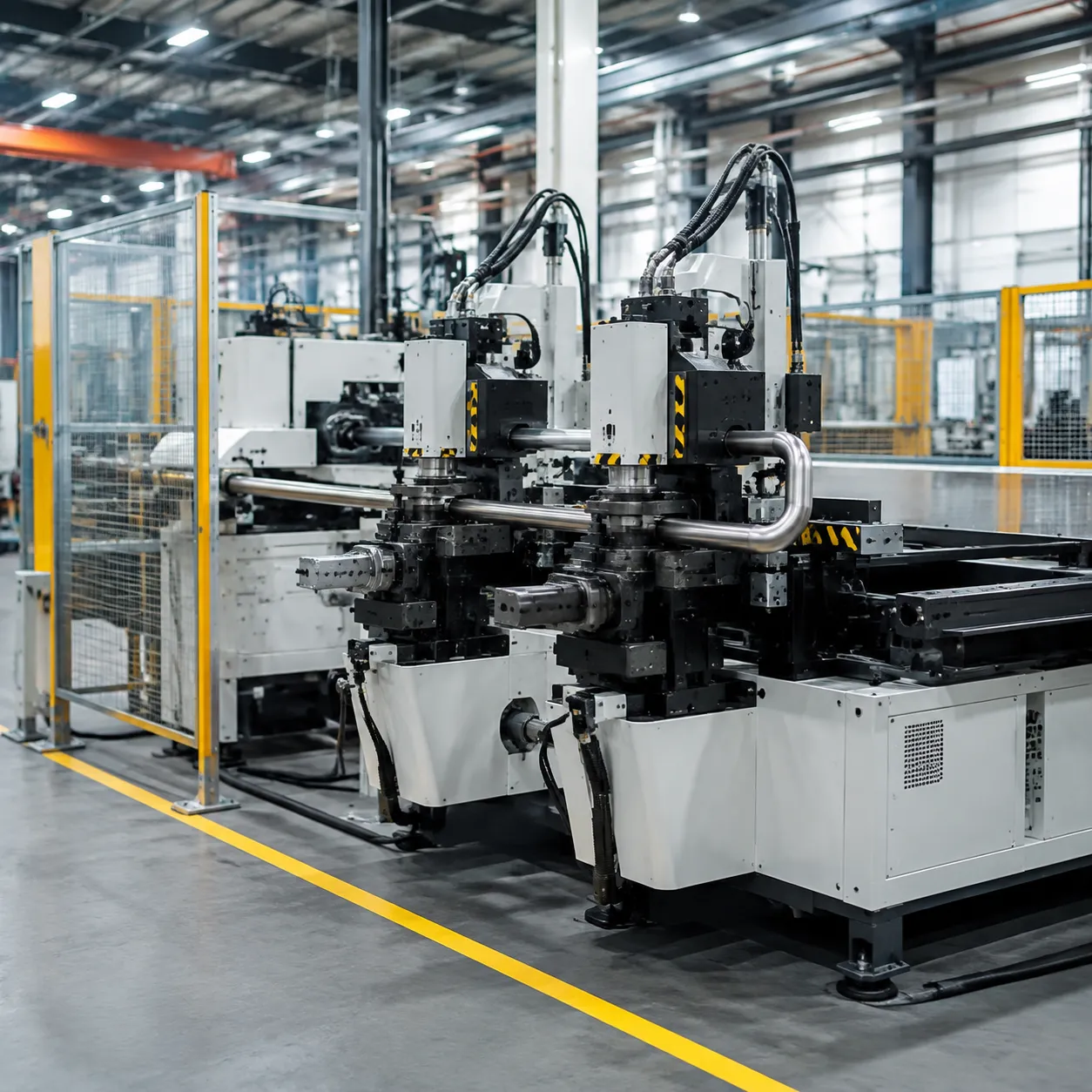

What is a Twin Head CNC Bending Machine?
A twin head cnc bending machine is an advanced tube fabrication system engineered to execute two bends simultaneously on a single length of tubing or pipe. By forming both ends of a workpiece in a single automated cycle, our dual-head CNC bender eliminates secondary handling, slashes cycle times, and maximizes operational efficiency for high-volume production lines.
Simultaneous Dual-Head Forming Principle
Instead of sequentially bending one end and manually reorienting the material, a double head pipe bending machine clamps the tube in a central position while two synchronized bending heads articulate at once. This dual-action design is purpose-built for symmetrical tube bending applications—such as automotive seat frames, heat exchanger coils, and furniture tubing—effectively doubling production output compared to standard single-head units.
Core Structural Components
Our multi axis tube bender relies on three critical subsystems engineered for rigidity, speed, and continuous heavy-duty operation:
- Dual Servo Bending Heads: Driven by precise servo motor tube bender technology to deliver exact bend angles, high angular velocity, and repeatable torque performance.
- Motorized Adjustable Bed: Features rapid center to center length adjustment to handle variable part lengths and quick tooling changeovers.
- Multi-Axis CNC Controller: Provides centralized motion control to manage multi-axis synchronization, automated material feeding, and real-time interference prevention.
Twin Head CNC Bending Machine Performance and Drive Systems
Our twin head cnc bending machine line eliminates manufacturing bottlenecks on high-volume tubular parts. By executing simultaneous symmetrical bends on both pipe ends, our dual-head architecture significantly cuts total cycle times compared to conventional single-head equipment.
Precision Engineering & Accuracy Standards
- Positioning Accuracy: ±0.01 mm absolute linear positioning via multi-axis CNC encoder feedback.
- Angle Repeatability: ±0.3° angular control with automatic springback compensation.
- Automated Pitch Adjustment: Motorized center-to-center adjustment automatically shifts head spacing per part program, eliminating manual setup delays on variable-length tubing.
Drive System Selection Matrix
| Performance Criteria | All-Electric Servo Motor Tube Bender | High-Tonnage Hydraulic Tube Bender Hybrid |
|---|---|---|
| Drive Technology | Direct-drive multi-axis CNC electric servos | Servo-proportional hydraulic system |
| Energy Consumption | Low energy draw with minimal heat output | Moderate to high operational output for thick walls |
| Noise & Cleanliness | Quiet operation, zero hydraulic fluid, cleanroom ready | Industrial grade; robust hydraulic cooling unit |
| Target Application | High-precision automotive frames, furniture, and coils | Heavy-wall structural pipe, thick mild steel tubing |
Motorized Center-to-Center Distance Control
We build automated servo pitch control directly into the bed frame of every double head tube bender. The multi-axis CNC controller adjusts the distance between bending heads dynamically according to part specifications. This eliminates manual bed adjustments, guarantees strict centerline radius (CLR) fidelity, and keeps cycle speeds fast across high-mix, variable-length manufacturing runs.
Twin Head CNC Bending Machine Technical Specifications
We design our twin head CNC bending machine setups to balance high-volume throughput with structural precision. Matching machine capacity to target tube dimensions eliminates material deformation and cuts production bottlenecks on symmetrical tube bending jobs.
Core Engineering Specifications Matrix
| Specification | Standard Configuration | Heavy-Duty Configuration |
|---|---|---|
| Max Tube Outer Diameter (OD) | 0.50" to 2.00" (12.7 mm – 50.8 mm) | Up to 3.50" (88.9 mm) |
| Wall Thickness Range | 0.035" to 0.120" (0.9 mm – 3.0 mm) | Up to 0.250" (6.35 mm) |
| Center-to-Center Length | 7.8" Min / 78.7" Max (200 mm – 2000 mm) | 11.8" Min / 118" Max (300 mm – 3000 mm) |
| Bending Angle Limits | 0° to 180° (Simultaneous Dual Head) | 0° to 180° (Simultaneous Dual Head) |
| Centerline Radius (CLR) | 1.0D to 3.0D | 1.5D to 5.0D |
Multi-Axis Control & Power Capabilities
- Multi-Axis Backgauge Systems: 4 to 8 synchronized axes drive precise tube rotation, feeding, and bending sequences on 3D metal tube processing workflows.
- Automated Pitch Adjustment: Motorized center to center length adjustable bed changes part spacing directly through the CNC interface in seconds.
- Multi-Stack Tooling Options: Holds up to 3 die stacks per bending head to handle multi-radius bends and compound shapes without mid-cycle manual tooling changes.
- Cycle Speed & Repeatability: High-speed electric servo drives achieve bend speeds up to 120° per second with ±0.01 mm positioning accuracy and ±0.1° angle repeatability.
- Drive System Selection: Full all-electric servo motor tube bender options for clean, low-noise thin-wall forming, or high-tonnage hydraulic hybrid systems delivering up to 30 tons of bending force for heavy structural pipe.
Advanced CNC Controllers & Software Integration
We equip every twin head cnc bending machine with industry-standard, multi-axis controllers built for high-throughput tube fabrication. Our integrated software eliminates operator guesswork, cuts setup time, and keeps your shop floor running at peak efficiency.
Compatible Multi-Axis CNC Interfaces
Our machines seamlessly integrate with the industry's most reliable control platforms:
- Delem & Cybelec Controllers: Full multi-axis management for high-precision dual-head synchronization.
- ESA CNC Interfaces: Intuitive touchscreen controls built specifically for complex multi axis tube bender operations.
- Custom Program Storage: Store thousands of part files, tool configurations, and bending sequences for instant job recall.

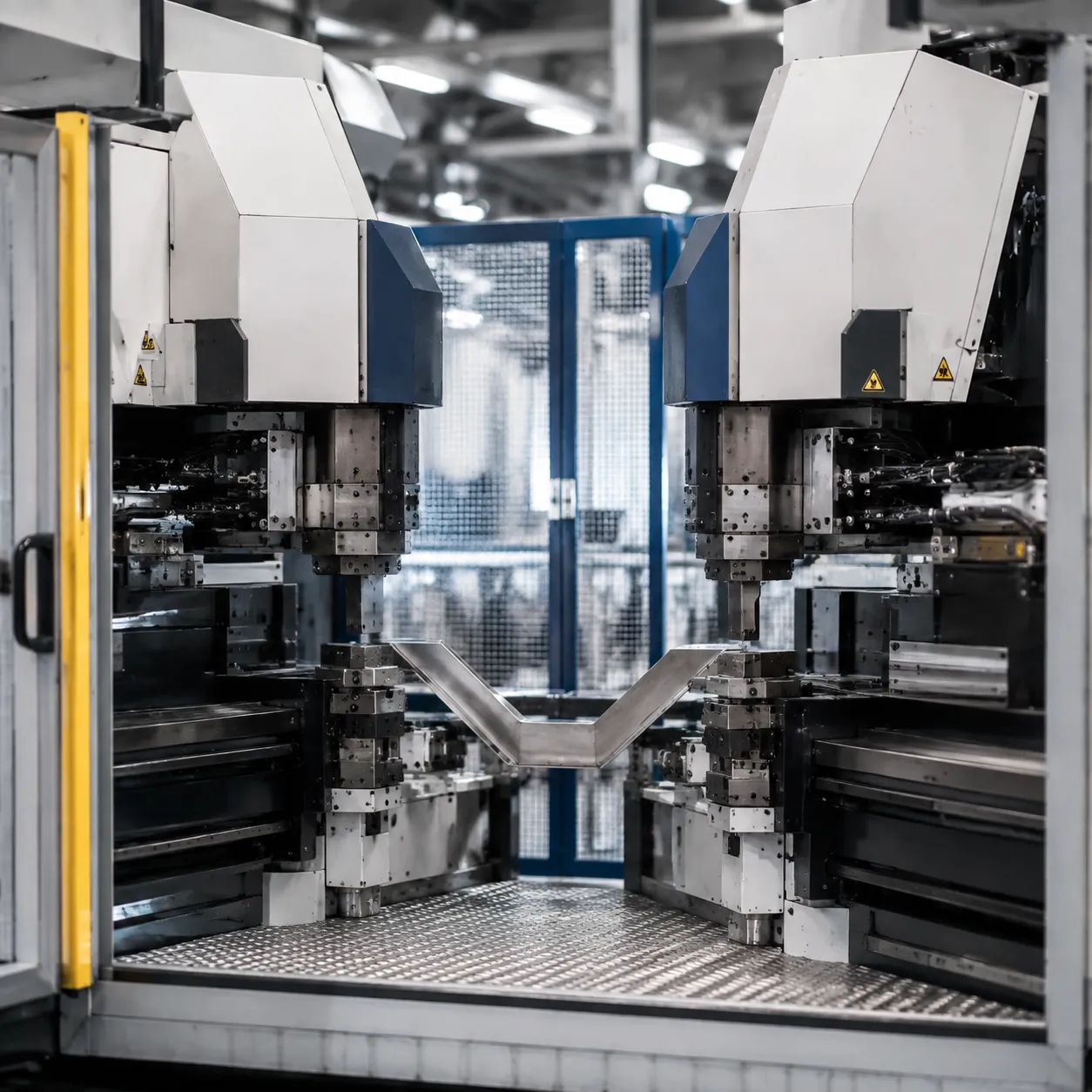

3D Visual Simulation & Collision Detection
Our smart software validates your production run virtually before the first tube is loaded:
- Real-Time 3D Rendering: Visualize the complete bending cycle in 3D to check geometry before bending real metal.
- Interference Prevention: Automated algorithms flag head-to-head collisions, frame interference, and clamp crashes on your double head pipe bending machine.
- Springback Compensation: Smart algorithms make real-time corrections to guarantee exact final bend angles on every part.
Industry 4.0 Smart Connectivity
Keep your facility connected and operating smoothly with total production transparency:
- Network & File Integration: Ethernet ports and USB connectivity allow instant CAD/CAM file transfers directly to the machine.
- Remote Technical Diagnostics: Secure internet connectivity lets our technicians troubleshoot, update, and fine-tune your machine offsite to prevent costly downtime.
- Cloud Production Tracking: Monitor cycle speeds, overall equipment effectiveness (OEE), and job progress remotely across all CNC 3D tube forming equipment.
Twin Head CNC Bending Machine Applications by Industry
Programs configure twin head cnc bending machine cells alongside CNC rotary cold bending machines for high-volume, high-precision tube processing where symmetry and cycle time dictate profitability. By forming both ends of a profile simultaneously, we eliminate secondary handling and double throughput across critical manufacturing sectors.
Automotive and Transportation
Speed and repeatability are essential for high-volume vehicle components. Our double head tube bender tooling processes dual-end bends in a single automatic cycle.
- Structural Components: Symmetrical seat frames, bumper guards, and protective cab cages.
- Fluid & Exhaust Lines: Rigid fuel supply line bender runs, brake line bending machine setups, and heavy-duty exhaust hangers.
Furniture and Fitness Equipment
Unmatched surface finish and precise symmetry keep high-end tubular furniture and gym gear moving down the assembly line.
- Commercial Furniture: Steel chair legs, symmetrical desk frames, and office seating bases.
- Recreational & Gym Equipment: Multi-bend exercise machine tubing and heavy-duty trolley chassis.
HVAC, Power, and Cooling
Continuous symmetrical tube bending reduces joint welds, lowering leak risks in high-pressure fluid loops.
- Power Systems: High-density boiler tube serpentines using an integrated serpentine tube bender configuration.
- Thermal Management: Industrial heat exchangers and precision copper coils.

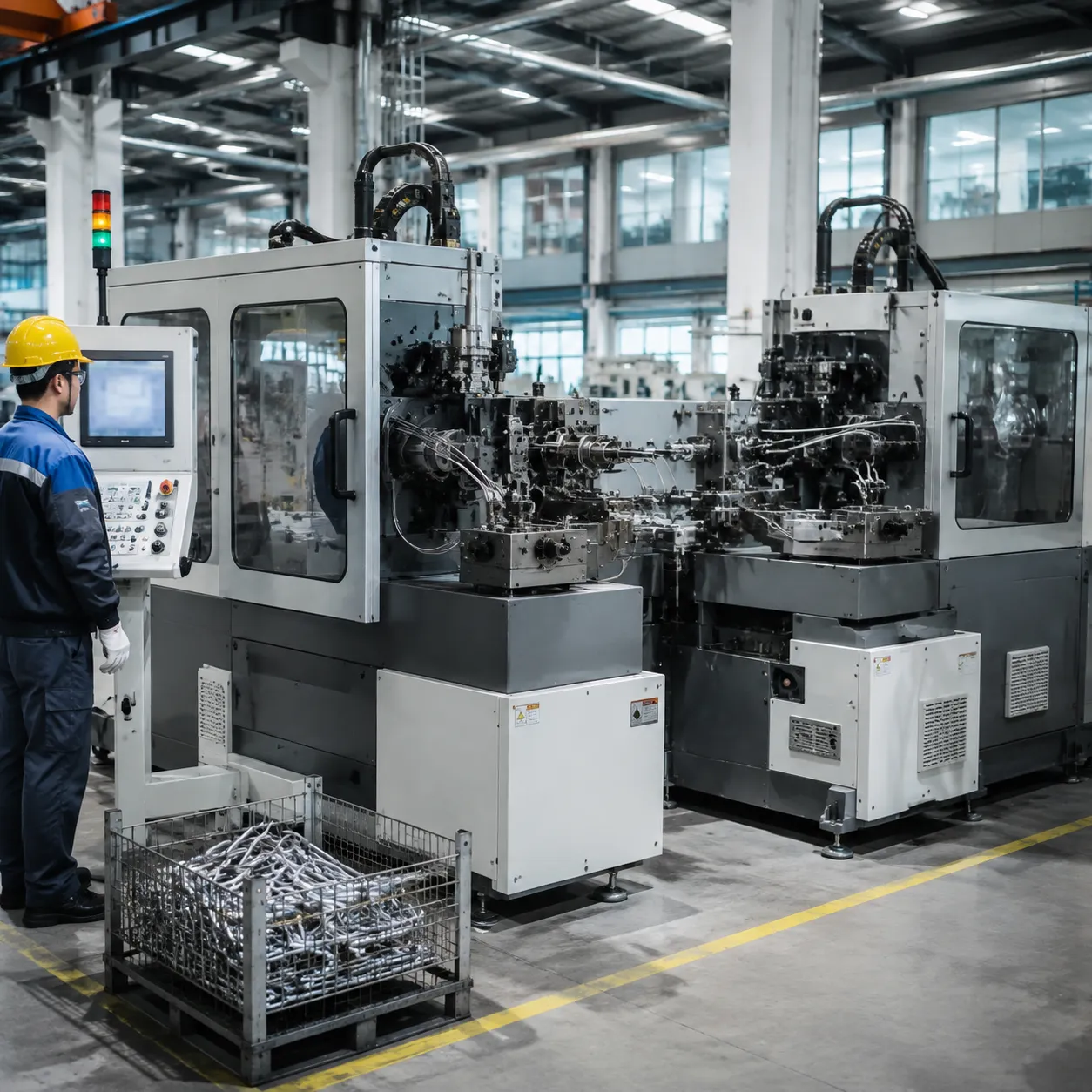

Wire and Metal Rod Forming
Beyond standard pipe, our multi-axis control handles solid bar and rod geometries efficiently.
- Retail & Transport: Shopping cart chassis, baggage frames, and display racks.
- Structural Mesh: Complex wire double bending assemblies for heavy 3D wire structures.
Custom OEM/ODM Engineering & Automated Working Cells
We design custom tooling and turnkey automated production cells for your twin head cnc bending machine, optimizing throughput and eliminating manual bottlenecks on complex profile geometry.
Tailored Tooling for Symmetrical Tube Bending
Standard tooling fails when hitting strict tolerances. We engineer specialized die packages tailored directly to your material grade, tube wall thickness, and centerline radius.
| Tooling / Automation Component | Custom Feature | Manufacturing Advantage |
|---|---|---|
| Mandrel Assemblies & Wiper Dies | High-grade alloy steel or AMPCO bronze build | Eliminates tube wrinkling, flattening, and ovality on tight CLR bends |
| Clamp & Pressure Dies | Custom-machined serrated or non-marking contours | Secures high-tonnage holds without damaging surface finishes |

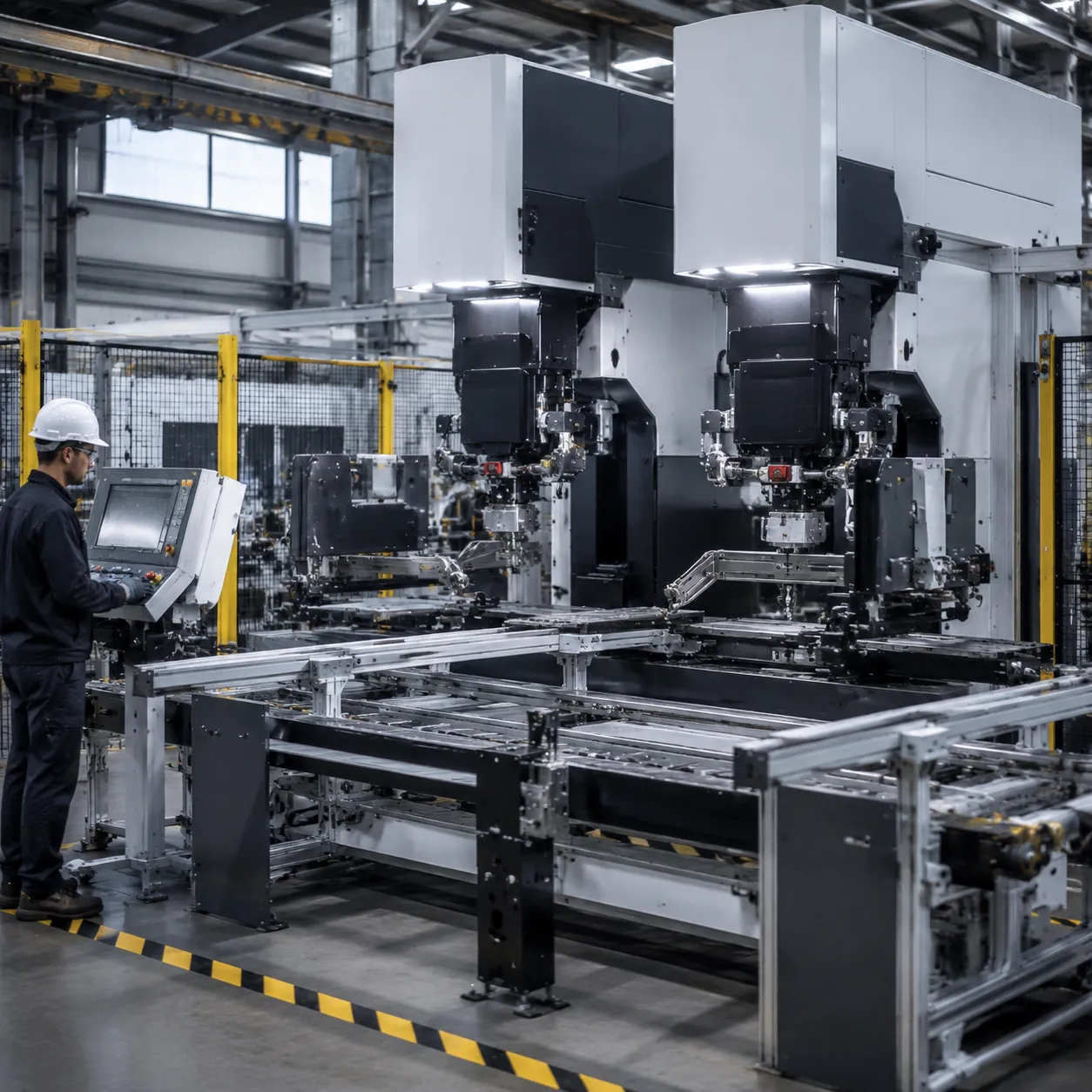

| Robotic Loading & Unloading | Integrated 6-axis robotic arms with custom end-effectors | Pairs with CNC machine bending systems for 24/7 lights-out manufacturing and shorter unit cycle time |
| Motorized Pitch Adjustment | Servo-driven automated center-to-center repositioning | Speeds up tooling changeovers across variable-length part families |
Turnkey Automation & Global Lifecycle Care
Turnkey OEM/ODM programs convert standalone double head tube bender units into high-efficiency automated cells that handle raw tubing input, dual-head forming, and finished part unloading.
- On-Site Commissioning: Factory technicians handle physical installation, multi-axis calibration, and cell integration.
- Comprehensive Operator Training: In-depth hands-on instruction covering 3D collision simulation, job programming, and quick die changeovers.
- Spare Parts Availability: Direct supply of critical wear components and OEM spares to keep your lines running.
- Lifetime Technical Support: Ethernet remote diagnostics to instantly troubleshoot software and motion control issues.
Share tube OD, wall thickness, center-to-center span, and automation scope for twin head cnc bending machine layout drawings—Contact ProMach with STEP profiles and voltage specification.
Twin Head CNC Bending Machine FAQ
Direct answers on dual-head throughput, drive selection, springback, materials, and center-to-center setup for twin head cnc bending machine buyers.
| Question | Answer |
|---|---|
| How a Twin Head CNC Bending Machine Doubles Production | Standard single-head benders execute one bend at a time, forcing operators to reload or rotate the workpiece. Our twin head cnc bending machine features dual bending heads operating simultaneously on both ends of a single tube or pipe. This symmetrical tube bending process significantly cuts unit processing time while eliminating manual part flips and reducing labor costs. |
| All-Electric Servo vs. Hydraulic Double Head Tube Bender |
|
| Compression vs Rotary Compression Bender Tooling | Thin-wall profiles use compression tube bender dies; heavy rotary compression bender stacks handle thick mild steel pipe bender duty and square tube bender envelopes without ovality on tight CLR. |
| Maintaining Exact Bending Angle Accuracy | Material variations between steel batches lead to unpredictable springback. Our multi axis tube bender software utilizes real-time angle monitoring and automated springback compensation. The controller measures springback during the initial test bend, calculates material elasticity, and over-bends the part automatically to hit consistent angle repeatability within ±0.3°. |
| Compatible Tube Materials and Thickness Limits | We build each double head tube bender to handle diverse metal profiles across high-volume shop environments:
|
| Speeding Up Tooling Changeover and Center-to-Center Length Setup |
Send tube OD, CLR, and tooling lists via Contact ProMach for cell layout review. |
