| Model | Working Area | Spindle | Drive | Control |
|---|---|---|---|---|
| ProMach 1325 Stone | 1300 × 2500 × 400 mm | 5.5–7.5 kW water-cooled | Hybrid servo / rack-pinion X/Y | DSP / Syntec 3-axis stone CNC |

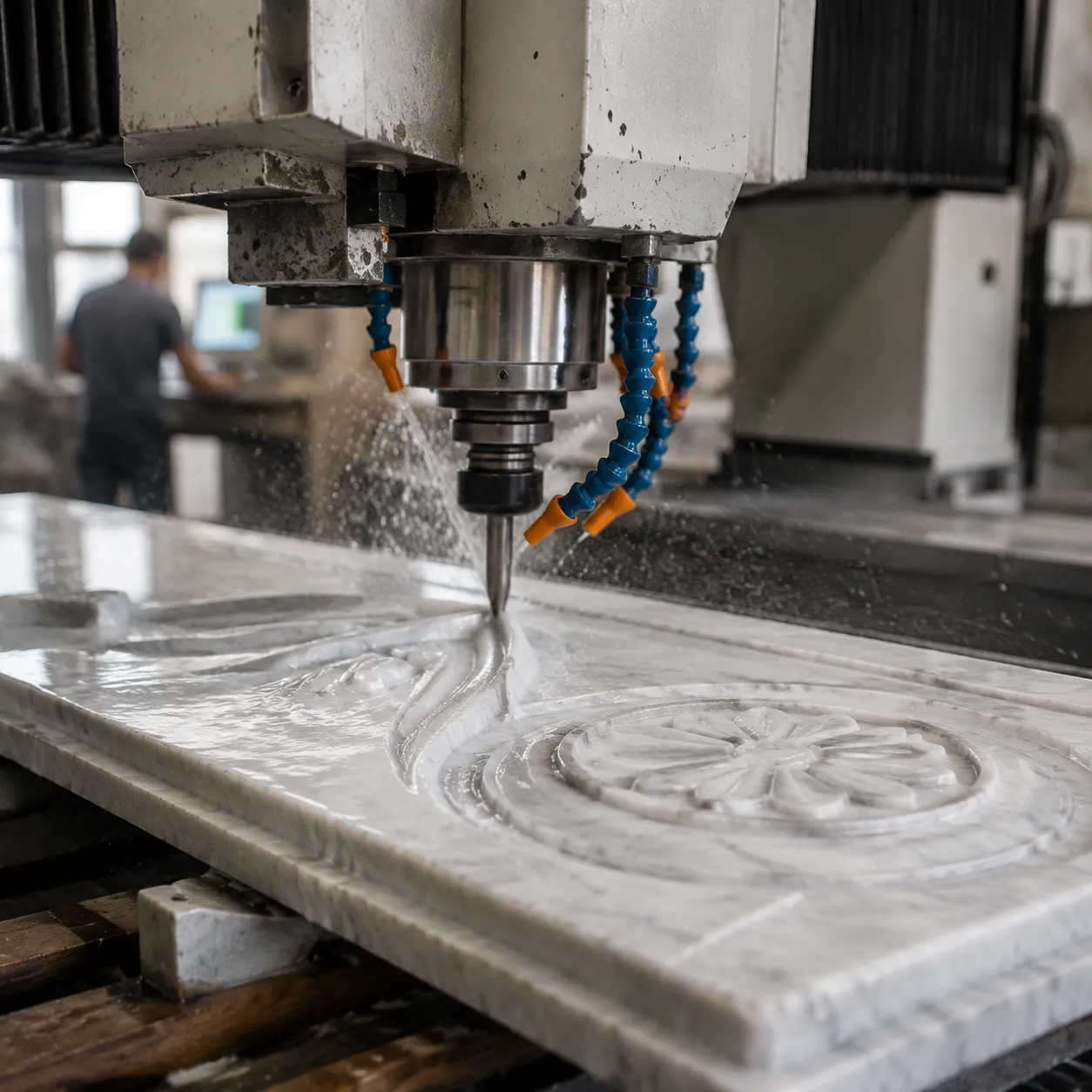

Unlike a 1325 CNC wood router, this cnc router stone milling frame uses a sunken steel bed, slurry isolation, and flood coolant for granite, marble, and ceramic slab work.
CNC Router Stone Milling — Heavy-Duty Sunken Bed
Standard flatbed routers just don’t cut it for heavy stone fabrication. We designed this 1325 stone cnc router with a specialized, sunken bed structure welded from thick-walled industrial steel.
- Low Center of Gravity: The lowered bed design dampens massive vibrations during deep granite engraving and heavy slab cutting.
- Massive Load Capacity: Easily handles multi-ton slabs of natural quartz, marble, and quartzite without structural sagging.
- Integrated Splash Containment: The sunken geometry naturally contains water and stone chips, keeping your workshop floor clean and safe.
High-Torque Water-Cooled Spindle System

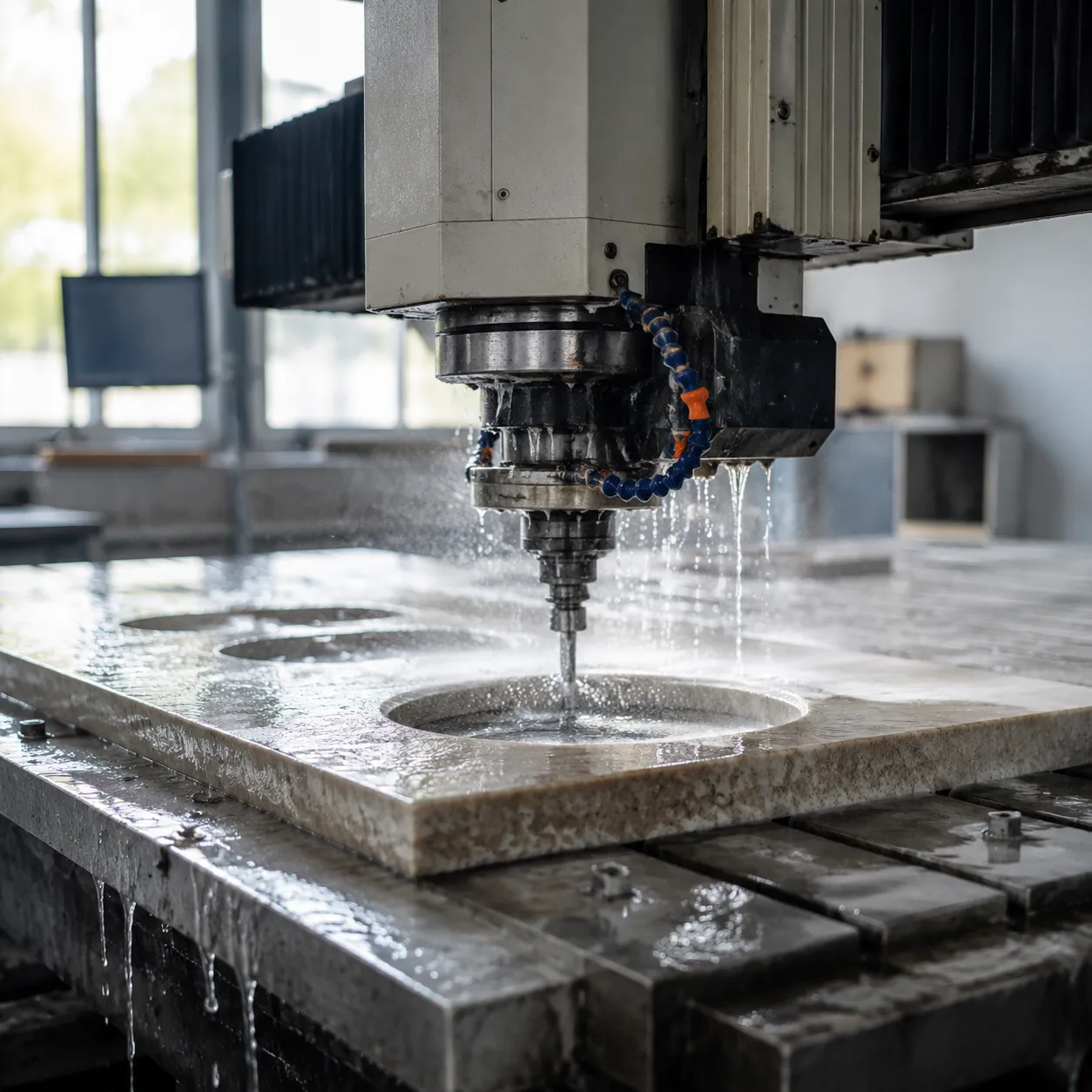

At the heart of our stone cnc machining center is a high-torque, water-cooled spindle CNC router system. Stone milling requires sustained power at lower RPMs compared to woodworking, and this spindle delivers exactly that. Optional dual independent spindles configurations are available for simultaneous roughing and finishing when quoted.
- Continuous Thermal Regulation: Water cooling prevents the motor from overheating during 24/7 fabrication cycles.
- Constant Torque Output: Maintains high cutting force even when driving large-diameter conical carving bits or profiling tools into hard granite.
- Extended Bearing Life: Sealed ceramic bearings withstand the intense axial forces unique to 3D stone carving.
Slurry & Moisture Isolation System
Granite dust and water mix into an abrasive slurry that can instantly destroy precision parts. We protect your investment with a multi-tier isolation system.
- Total Axis Protection: X, Y, and Z axes feature heavy-duty, bellows-style accordion covers to seal out water and grit.
- Overhead Drive Placement: Critical linear guide rails and dual-drive rack systems are positioned away from the primary water spray zone.
- Stainless Steel Drainage: The entire working area slopes toward a high-volume filtration drain, ensuring rapid water evacuation and easy slurry removal.

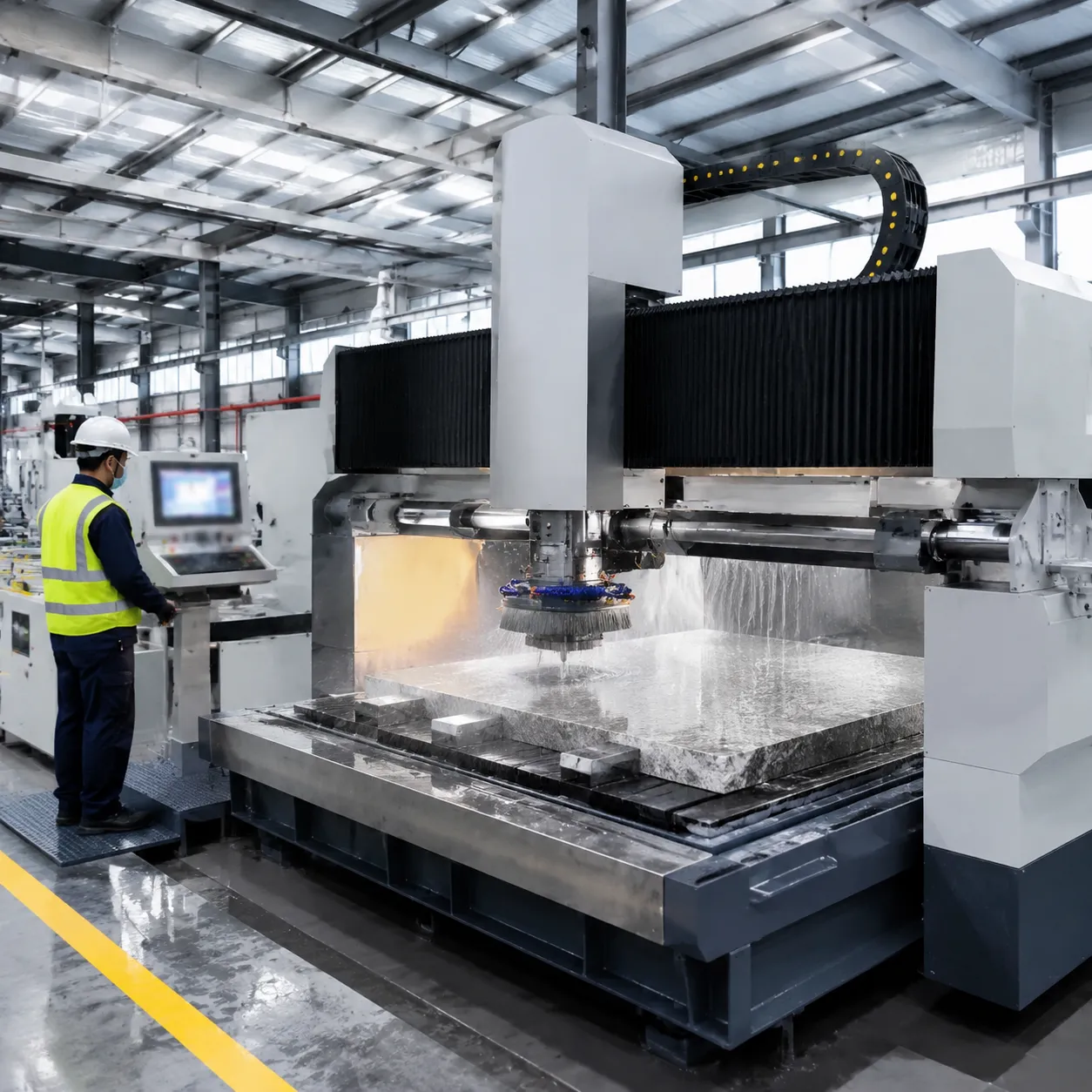

Technical Specifications & Performance Ratings
When you are running a high-volume shop, you cannot afford guesswork. We engineered the 1325 stone CNC router with the exact raw power and precision mechanics required for heavy-duty cnc router stone milling. Every component is selected to maximize uptime and handle the brutal environment of daily stone fabrication.
ProMach 1325 Core Specifications
| Feature | Production Rating & Component Details |
|---|---|
| Working Area | 1300 × 2500 × 400 mm (51 × 98 × 15.7 inches) |
| Spindle Power & Speed Range | 5.5 kW / 7.5 kW water-cooled spindle CNC router system (0–24,000 RPM) |
| Drive System | High-torque hybrid servo motors with helical rack and pinion on X/Y axes |
| Control System | Industrial DSP or Mach3/Syntec 3-axis stone CNC controller |
| Compatible Tooling Diameter | 3.175, 4, 6, 8, 12.7 mm collets |
Performance Architecture
- Rigid Motion Control: The heavy-duty drive system prevents backlash and chatter, which is critical for extending the lifespan of your diamond tooling for stone CNC.
- Precision RPM Management: The high-torque water-cooled setup maintains stable temperatures during deep step down value passes and prolonged spiral downward tool paths.
- Flexible Tooling Accommodation: Easily fits standard widia, electroplated, pcd bits, and conical carving bits for switching between rough profiling and intricate 3d carving.

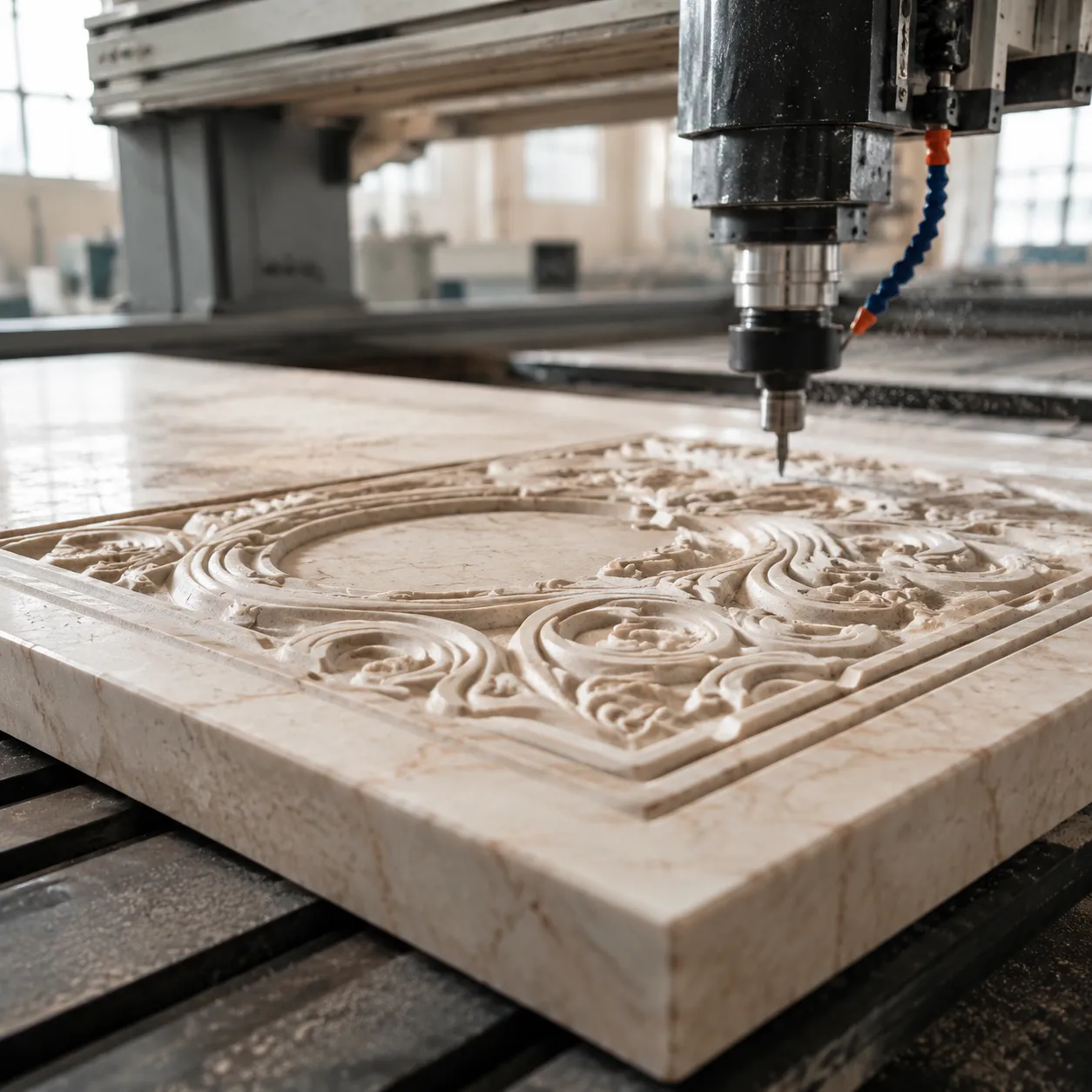

Versatile Processing Profiles for Diversified Stone Fabrication
We engineer our machinery to handle more than just basic cutting. If you want to scale your shop’s output, you need a system that adapts to complex architectural demands without slowing down your workflow.
Advanced Machining Operations
Our 3-axis stone CNC systems execute complex tool paths with absolute precision. We design these units to transition seamlessly between heavy bulk material removal and delicate detailing.
- 3D Carving & Engraving: Smooth interpolation allows for flawless bas-relief work, intricate religious art, and detailed custom signage.
- Cutting Profiles: Perfect for high-speed edge profiling, sink cutouts, and precise countertop fabrication.
- Intelligent Depth Control: Easily program your specific step down value to manage material resistance and eliminate tool breakage during deep pocketing.
- Smooth Entry Paths: Utilizing a spiral downward entry method reduces mechanical stress on both the spindle and the workpiece, ensuring clean edges every time.
Optimal Tooling Integration
Maximizing your cnc router stone milling efficiency depends entirely on matching the right cutter to the job. Our systems support a wide array of specialized commercial tooling.
| Tooling Type | Best Used For | Key Advantage |
|---|---|---|
| PCD Bits | Quartz milling, granite, and ultra-hard engineered stone | Extreme wear resistance and long operational life |
| Diamond Tips | High-speed V-grooving and fine texturing | Retains precise geometry over long production runs |
| Conical Carving Bits | Intricate 3D lettering and detailed architectural stone engraving | High precision in tight corners and deep recesses |
| Electroplated & Widia Tools | Soft marble, limestone, and clean ceramic profiling | Cost-effective clearing and smooth surface finishing |
Granite, Marble & Ceramic — CNC Router Stone Milling Output
We know that shop profitability relies on versatility. If your machine can only handle soft stone, you are leaving money on the table. We engineered our heavy-duty stone fabrication machinery to transition seamlessly between demanding natural blocks and ultra-hard modern surfaces without skipping a beat.
Natural Stone Categories
When dealing with natural slabs, consistent density is never guaranteed. Our 1325 stone CNC router delivers the rigid stability required to mitigate tool vibration, ensuring clean cuts across variable material grains.
- Granite: Easily manage hard granite slabs using high-torque milling without risking tool deflection.
- Marble: Achieve flawless, chip-free detailing on delicate marble surfaces during intricate 3d carving jobs.
- Quartzite: Maintain exact feed rates through highly abrasive, dense natural quartzite.
Engineered & Synthetic Formats
Modern US shops handle an increasing volume of engineered surfaces. These materials demand precise RPM control and targeted cooling to prevent fracturing and premature tool wear.
- Quartz Milling: Execute clean edge profiles and sink cutouts on popular engineered quartz brands.
- Porcelain & Ceramic: Prevent micro-fracturing on brittle ultra-compact porcelain slabs using stable, vibration-free tracking.
Material Compatibility Reference
| Material Type | Recommended Tooling | Core Application | CNC Challenge Solved |
|---|---|---|---|
| Granite | Diamond tips & PCD bits | Countertops, monuments | Eliminates structural flexing |
| Marble | Conical carving bits | Architectural stone engraving | Prevents edge chipping |
| Quartz | Electroplated diamond tools | Kitchen islands, sink cutouts | Manages high heat buildup |
| Porcelain | Premium Widia bits | Thin slab profiling | Eliminates material cracking |
Whether your upcoming job requires heavy cnc router stone milling on 3cm granite or high-speed intricate detailing on a custom porcelain fireplace surround, this platform maintains structural deflection near zero. You get clean edges, precise depths, and reduced hand-polishing time right off the bed.

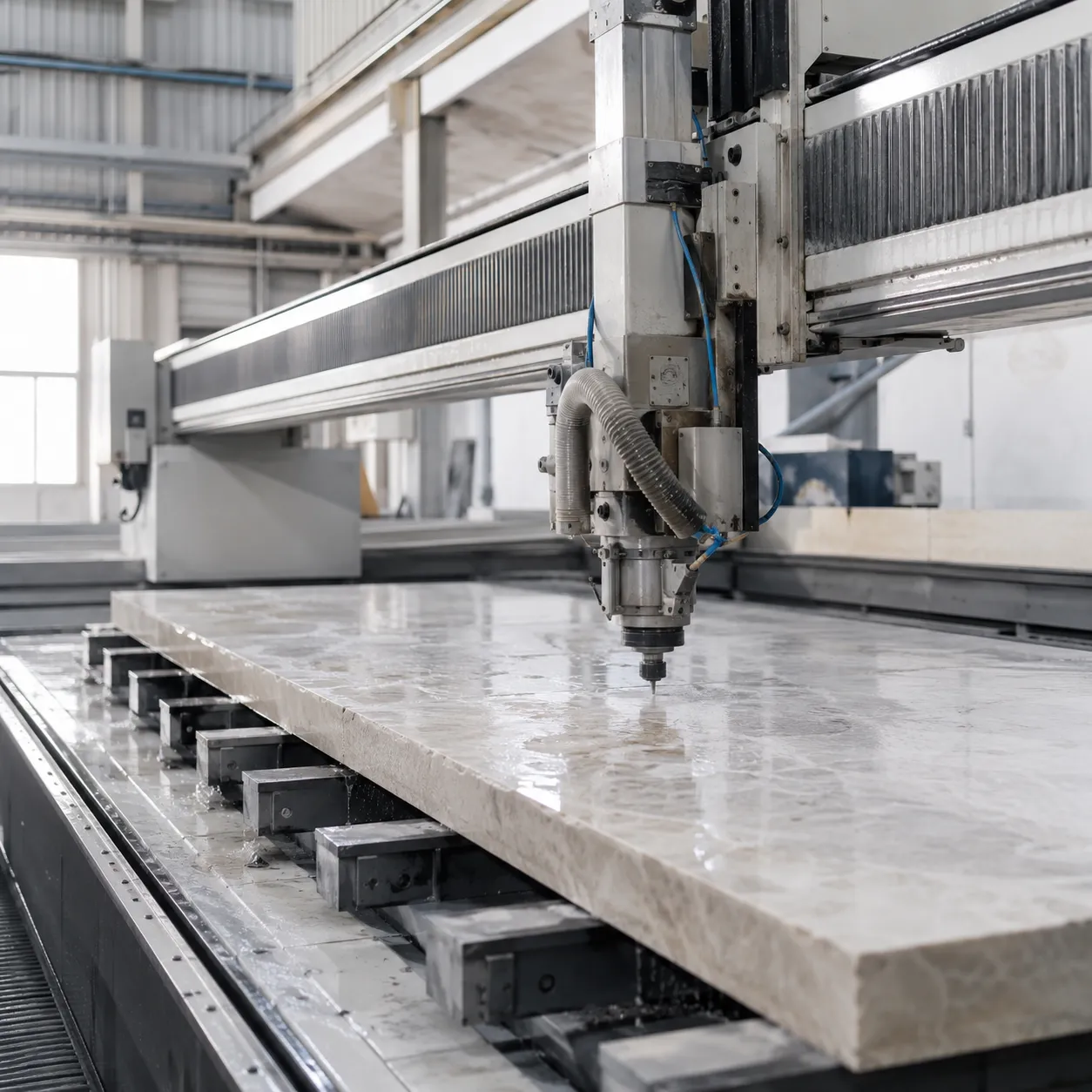

Seamless Factory Integration: From Consult to Production Line
We manage your entire transition to high-efficiency automated fabrication. From the day you reach out to the moment your team cuts their first slab, our integration process ensures zero guesswork and minimal downtime.
Production Needs Assessment
We start by analyzing your shop’s daily output, material choices, and specific bottlenecks. Whether you are moving from manual bridge saws to a 3-axis stone CNC or upgrading an existing setup, we match the machinery to your real-world volume.
Custom Engineering & Layout Design
Our engineers map out the floor layout to optimize your workflow. We plan the placement of the 1325 stone CNC router relative to your water recycling systems, material loading zones, and power supplies to eliminate wasted movement.
ISO-Regulated Manufacturing & Testing
Every heavy-duty stone fabrication machinery unit we build undergoes strict quality checks. We build, fine-tune, and stress-test your machine under simulated shop floor conditions before it ever leaves our facility.
Global Logistics & On-Site Calibration
We handle the heavy lifting of freight logistics directly to your US facility. Once it arrives, our field technicians level, square, and calibrate the entire system, ensuring the water-cooled spindle CNC router operates with absolute precision from day one.
Operator Field Training
Your team gets hands-on, practical field training. We skip the useless tech jargon and focus on what matters to US fabricators:
- Setting accurate tool compensations for diamond tooling for stone CNC.
- Programming clean 3D stone carving machine toolpaths.
- Managing proper feed rates for different granite CNC router tooling setups.
- Daily maintenance routines to keep the slurry and moisture isolation systems clean.
Optimize Your Stone Fabrication Throughput
Maximizing your shop’s efficiency requires the right combination of heavy-duty stone fabrication machinery and smart operational choices. When you integrate a dedicated 1325 stone CNC router into your workflow, your output consistency skyrockets while manual labor drops. We focus on building a robust industrial stone milling center that keeps your production line running without unexpected downtime.
To get the highest throughput from your CNC router stone milling setup, focus on three core areas:
Rigid Machine Stabilization: Eliminate vibrations by using a heavy-duty frame to extend tool life and improve edge quality.
Targeted Coolant Delivery: Ensure continuous water flow directly at the cutting point to flush out stone slurry and protect your diamond tips.
Programmed Tool Paths: Use a smooth spiral downward entry instead of a straight plunge to reduce stress on your spindle and cutting bits.
Ordering Information, MOQ & Quotes
As a stone cnc router center factories partner, we provide transparent stone engraving cnc router quotes and supply stone cnc router machine quotes for US and global fabricators. Typical lead time is 25–35 working days after deposit; optional dual independent spindles or rotary axis quoted separately.
| Item | Typical Terms |
|---|---|
| MOQ | 1 set (1325 stone configuration) |
| Quote turnaround | 24–48 hours with layout + power spec |
| Stone carving and engraving cnc router price | Depends on spindle kW, controller, and optional rotary; itemized in formal quote |
| Included | Factory integration planning, calibration support, operator training |
Request a Quote
Send slab sizes, daily throughput targets, and tooling mix (conical carving bits, pcd bits, electroplated, widia) for a configured cnc router stone milling proposal.
Contact ProMach with your shop layout drawing and material list (granite, marble, quartz, porcelain).
Frequently Asked Questions about CNC Router Stone Milling
What tooling works best for granite vs. marble engraving?
For hard natural stone like granite, PCD bits (polycrystalline diamond) or electroplated diamond tools are essential to handle the extreme abrasion. For softer stones like marble and limestone, Widia (tungsten carbide) or vacuum-brazed diamond bits offer excellent precision for 3D stone carving and clean detailing.
How do I prevent tool breakage during deep stone carving CNC router operations?
Always manage your step down value according to the stone hardness. Instead of forcing a deep cut in a single pass, step down progressively using a calculated material allowance. Using a high-torque water-cooled spindle CNC router also keeps cutting temperatures stable, preventing premature tool fracturing.
Can a 3-axis stone CNC handle complex architectural stone profiling?
Yes. A high-performance 3-axis stone CNC machining center easily executes complex cutting profiles, V-grooves, bas-reliefs, and intricate architectural stone engraving. By pairing the machine with proper CAD/CAM software, you can automate standard countertop edge profiling and detailed 3D carving designs seamlessly.
What maintenance keeps an industrial stone milling center running smoothly?
Stone milling creates highly abrasive slurry. To keep your CNC stone cutting machine in peak condition, you must clear the sunken bed filters daily, lubricate the linear guide rails, and ensure the moisture isolation system keeps water completely away from the drive motors and electronics.
