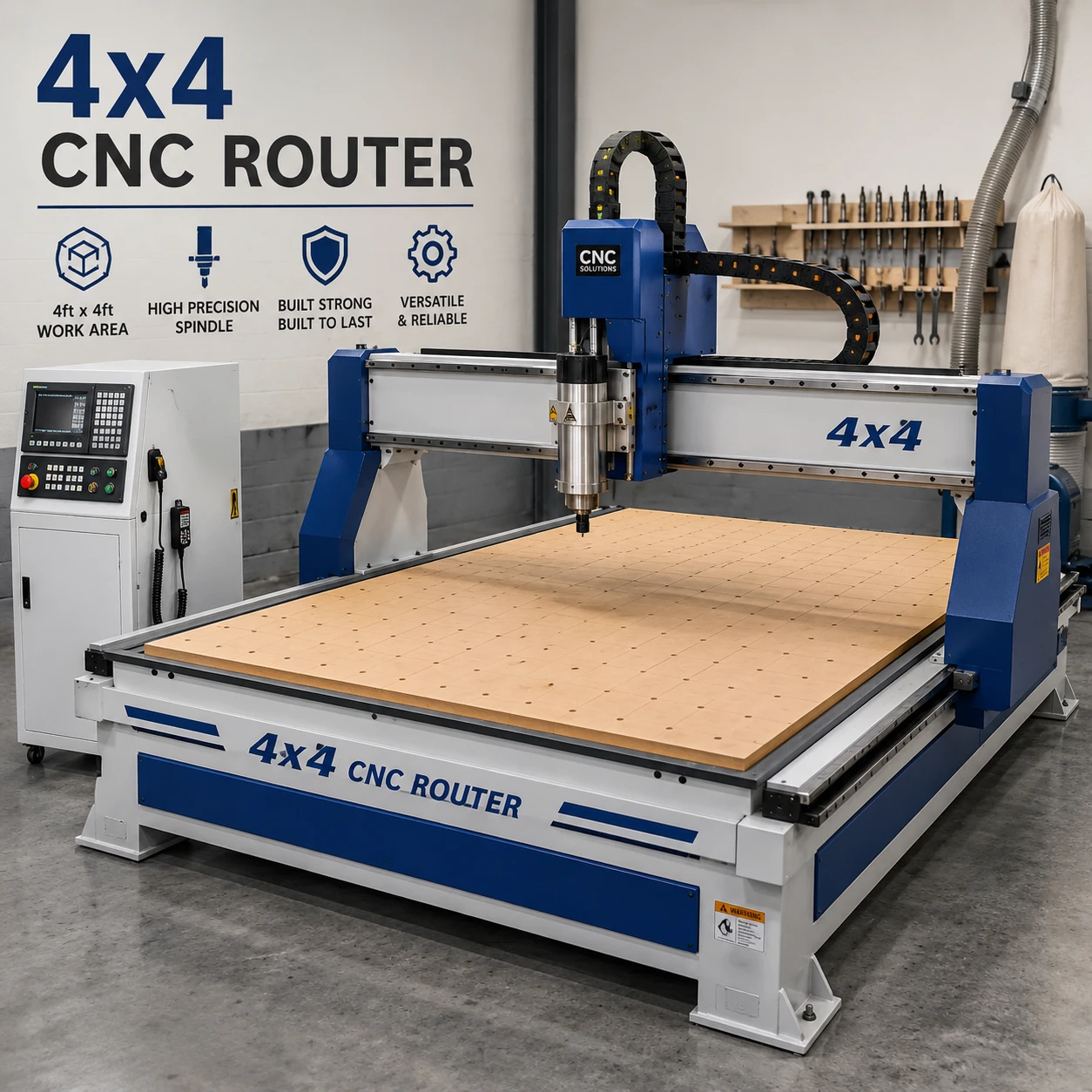

ProMach 4×4 CNC
We engineered the ProMach 4×4 CNC Router to eliminate chassis deflection entirely, ensuring industrial-grade stability for every job that hits your shop floor.
Heavy-Duty All-Steel Framework
- Vibration Control: Our 3-axis CNC machine features a fully welded, heavy-duty all-steel structural frame.
- Stress-Relieved Chassis: The entire bed is heat-treated to eliminate internal material stress, ensuring the table remains perfectly flat over years of continuous operation.
- Mass Equals Precision: The sheer weight of our steel gantry dampens spindle vibrations, allowing for clean cuts in dense materials without chatter marks.
High-Precision Linear Guide Rails
For industrial longevity, a dependable motion system is non-negotiable. The ProMach utilizes square Linear Guide Rails on all axes to deliver smooth, predictable travel under heavy loads.
| Feature | ProMach Square Rails | Standard Round Rails |
|---|---|---|
| Load Capacity | Exceptionally high; four-way equal load rating | Low; prone to deflection under heavy pressure |
| Lifespan | Industrial longevity with minimal wear | Frequent replacements required in commercial shops |
| Rigidity | Zero play; absolute tracking accuracy | Prone to flexing, leading to inaccurate cuts |
Precision Ball Screw Drive System
While many 48×48 CNC table options sacrifice accuracy by using rack-and-pinion drives on the larger axes, we exclusively deploy a Ball Screw CNC Router configuration across the entire machine.
Why Ball Screws Matter: Unlike rack-and-pinion systems that can suffer from backlash and gear wear, our precision ball screws offer tight mechanical tolerances. This translates to flawless circle interpolation, perfect pocketing, and highly repeatable nested cuts on full plywood sheets.
Power and Performance: The Heart of the 4×4 CNC Router
A reliable 4×4 CNC router needs a powerful core to handle heavy workloads without skipping a beat. The driving force behind our machines focuses on cutting power, movement precision, and efficient material hold-down.

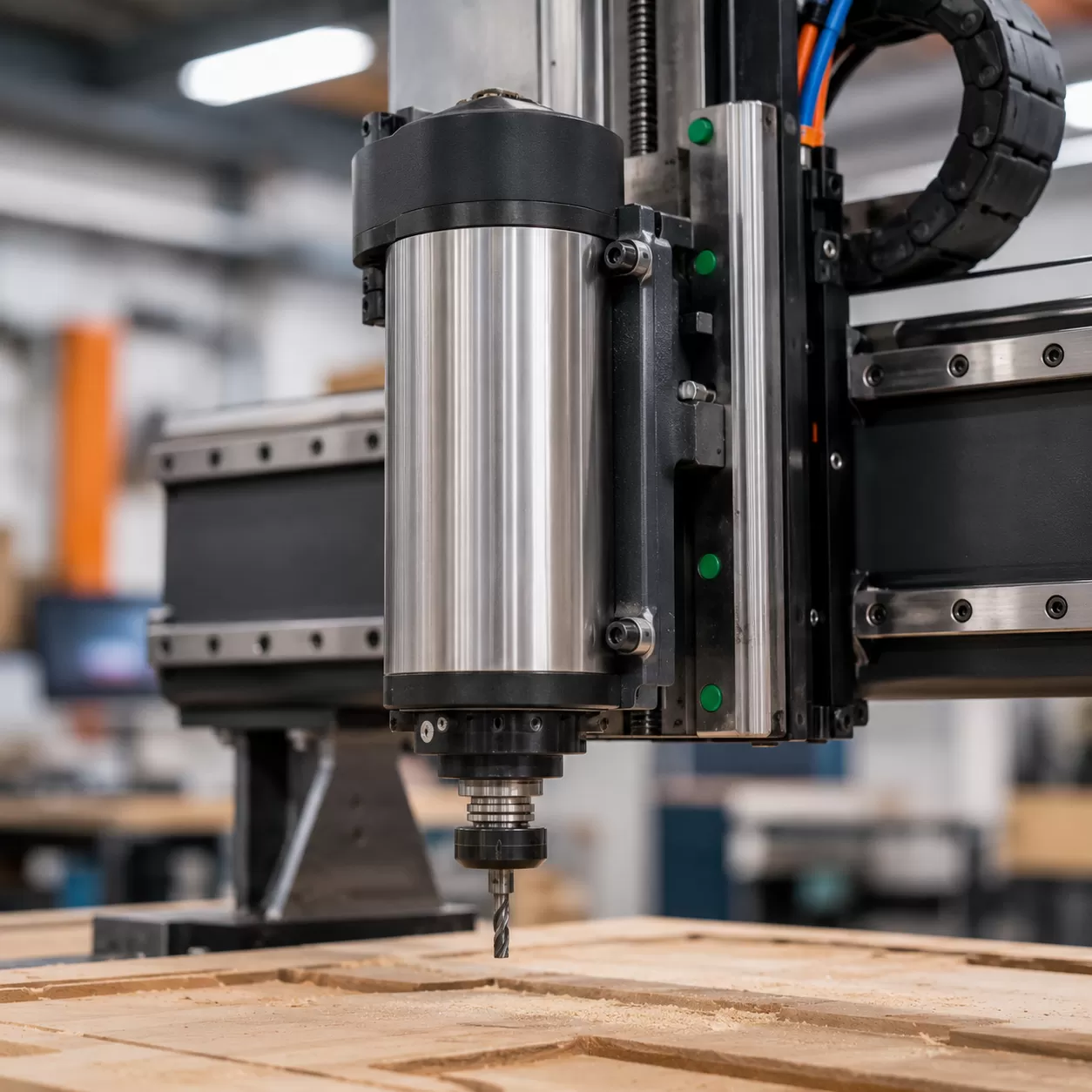

High-Frequency Spindle Options
The spindle motor dictates how fast and clean you can cut. We equip our machines with heavy-duty 3HP spindle options to match your specific shop environment:
- Air-Cooled Spindles: Best for low-maintenance operations and colder workshops. They are easy to run and don’t require external liquid pumps.
- Water-Cooled Spindles: Ideal for continuous, high-production environments. They run remarkably quiet and maintain optimal cooling during long 3D carving jobs.
High-Torque Drive Motors
To maintain accuracy across the 48×48 CNC table, we use robust motor setups that prevent lost steps during heavy ply or hardwood routing:
| Motor Type | Best For | Key Advantage |
|---|---|---|
| NEMA 34 Stepper Motors | High-torque cutting at a budget-friendly price point | Dependable raw power for standard 3-axis CNC machine work |
| Hybrid Servos | High-speed production and precision engraving | Closed-loop feedback that eliminates positioning errors |
Dust Collection and T-Slot Vacuum Table
Managing chips and holding down material are critical for clean cuts. Our hybrid T-slot vacuum table provides massive holding force for large sheets of plywood while allowing you to easily clamp down smaller hobbyist parts. Combined with a heavy-duty dust boot, the system keeps your linear rails clear of debris, protecting your investment for the long haul.
Knowing how to properly maintain your machine and optimize its operations is just as important as the hardware itself. If you are new to setting up your cutting paths, learning how to program a CNC machine efficiently will help you maximize the output of these high-torque motors and get the cleanest finish from your spindle.

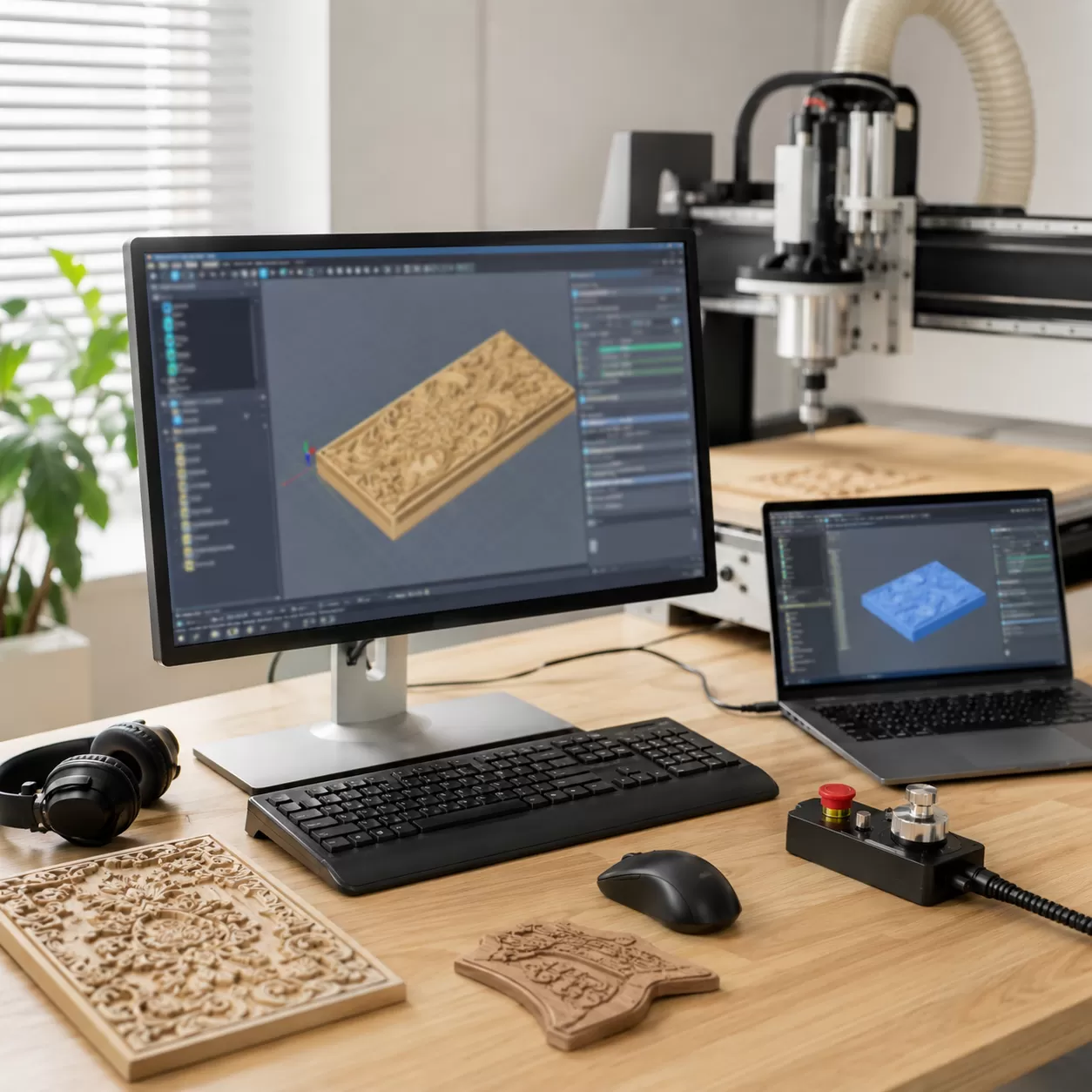

4×4 CNC router provides seamless control and software compatibility
Running a 4×4 CNC router shouldn’t feel like rocket science. We design our control systems to be straightforward, stable, and highly responsive so you can focus on cutting rather than troubleshooting.
Intuitive Control: DSP Handheld vs. PC-Based Systems
We offer two distinct control options tailored to your workflow habits:
- DSP Handheld Controller: Completely standalone. Plug in your USB drive, grab the pendant, and run the machine without bringing a computer into a dusty workshop environment.
- PC-Based Systems (Mach3/Mach4): Perfect for operators who prefer a large visual screen, real-time toolpath tracking, and advanced keyboard macro shortcuts.
Ultimate Software Versatility
Our 3-axis CNC machine line integrates seamlessly with the industry-standard design tools you already use. Whether you are running a commercial shop or a specialized production line, the system accepts standard G-code from various platforms:
- VCarve Pro / Aspire: The go-to choice for fast 2D plywood cutting and intricate CNC carving machine projects.
- Fusion 360: Ideal for precision engineering, nested cabinet parts, and complex 3D toolpaths.
- Type3 / ArtCAM: Optimized for sign making, 3D relief engraving, and artistic molding.
If you are setting up your shop workflow for the first time, check out our comprehensive guide to CNC software setup and optimization to get your design files properly configured for production.
Versatility of the 4×4 CNC Router Across Materials and Industries
The true value of a 4×4 CNC Router lies in its incredible versatility. We engineered this machine to handle far more than basic wood cutting, making it a profitable asset for diverse workshop environments. Whether you operate a dedicated woodshop or a custom fabrication business, this system adapts to your production needs.
Woodworking and Cabinetry
Processing large sheet goods is effortless on this platform. It serves as a highly efficient plywood cutting machine, delivering clean, chip-free edges on optical-grade plywood, MDF, and dense hardwoods. For shops looking to scale up their production of nested cabinet components and furniture, integrating this setup with a specialized cabinet CNC machine streamlines the entire workflow from raw sheet to finished assembly.
Sign Making and Plastic Fabrication
As a high-speed sign making router, the machine excels at intricate lettering and dimensional carving. It maintains flawless depth control across the entire bed, which is critical when working with sensitive materials:
- Acrylic: Achieves crystal-clear, smooth edge finishes without melting.
- PVC and Foamboard: Delivers rapid processing speeds for high-volume promotional signage.
- Polycarbonates: Handles heavy-duty plastic fabrication with zero deflection.
Non-Ferrous Metal Machining
This 3-axis CNC machine features the structural rigidity required to move beyond plastics and wood into non-ferrous metalwork. With the right feed rates and tooling, it functions as a dependable aluminum and brass engraving machine. You can easily mill instrument panels, cut custom brass branding irons, or machine aircraft-grade aluminum brackets right in your own shop.

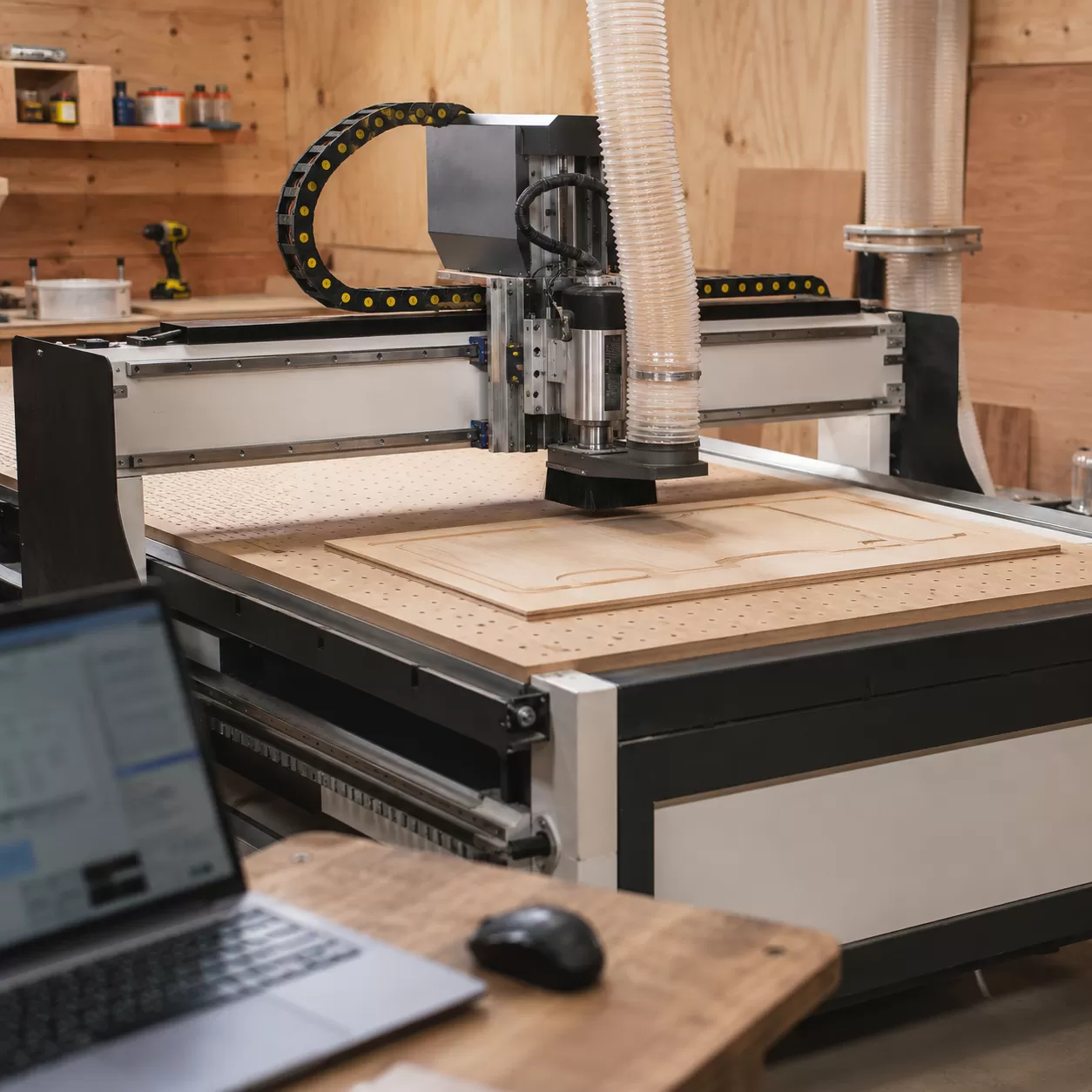

Technical Specifications of the 4×4 CNC Router
We design our 4×8 and 4×4 CNC router tables to balance a space-saving footprint with industrial-grade performance. Every component, from the ball screw CNC router drive to the heavy gantry, is optimized for speed and accuracy.
Here is exactly what you get under the hood of the ProMach 4×4 CNC machine:
| Specification | Details & Measurements |
|---|---|
| Working Area (X, Y, Z) | 48″ x 48″ x 7.8″ (1220mm x 1220mm x 200mm) |
| Total Machine Footprint | 72″ x 68″ x 65″ (1830mm x 1720mm x 1650mm) |
| Spindle Motor Options | 3HP (2.2kW) or 4.5HP (3.5kW) High-Frequency Spindle |
| Spindle Speed Range | 6,000 – 24,000 RPM |
| Drive Motors | High-Torque NEMA 34 Stepper Motors / Hybrid Servos |
| Drive System (X/Y/Z) | Precision Ball Screw & Linear Guide Rails |
| Max Rapid Feed Rate | 600 inches per minute (15,000 mm/min) |
| Maximum Cutting Speed | 400 inches per minute (10,000 mm/min) |
| Positioning Accuracy | ±0.001″ (±0.03mm) |
| Repeatability | ±0.0008″ (±0.02mm) |
Key Performance Capabilities
- Precision Processing: The combination of top-tier linear guide rails and a dual ball screw drive system delivers unmatched resolution. This setup eliminates the backlash often found in lower-end rack-and-pinion alternatives, making it an excellent plywood cutting machine and sign making router.
- High-Speed Material Throughput: With a rapid feed rate of 600 IPM, this 3-axis CNC machine minimizes non-cutting transition times, keeping your shop floor moving efficiently.
- Reliable Repeatability: A repeatability rating of ±0.0008″ means your 100th cut will be just as flawless as your first. If you ever need replacement parts or upgrades to maintain this precision over years of heavy use, you can easily source them through our CNC spare parts catalog to minimize downtime.
Why Choose ProMach as Your 4×4 CNC Router Partner?
Investing in a 4×4 CNC router is a major milestone for your business. When you partner with ProMach, you are not just buying an industrial CNC router—you are gaining a dedicated support network committed to your long-term production success.

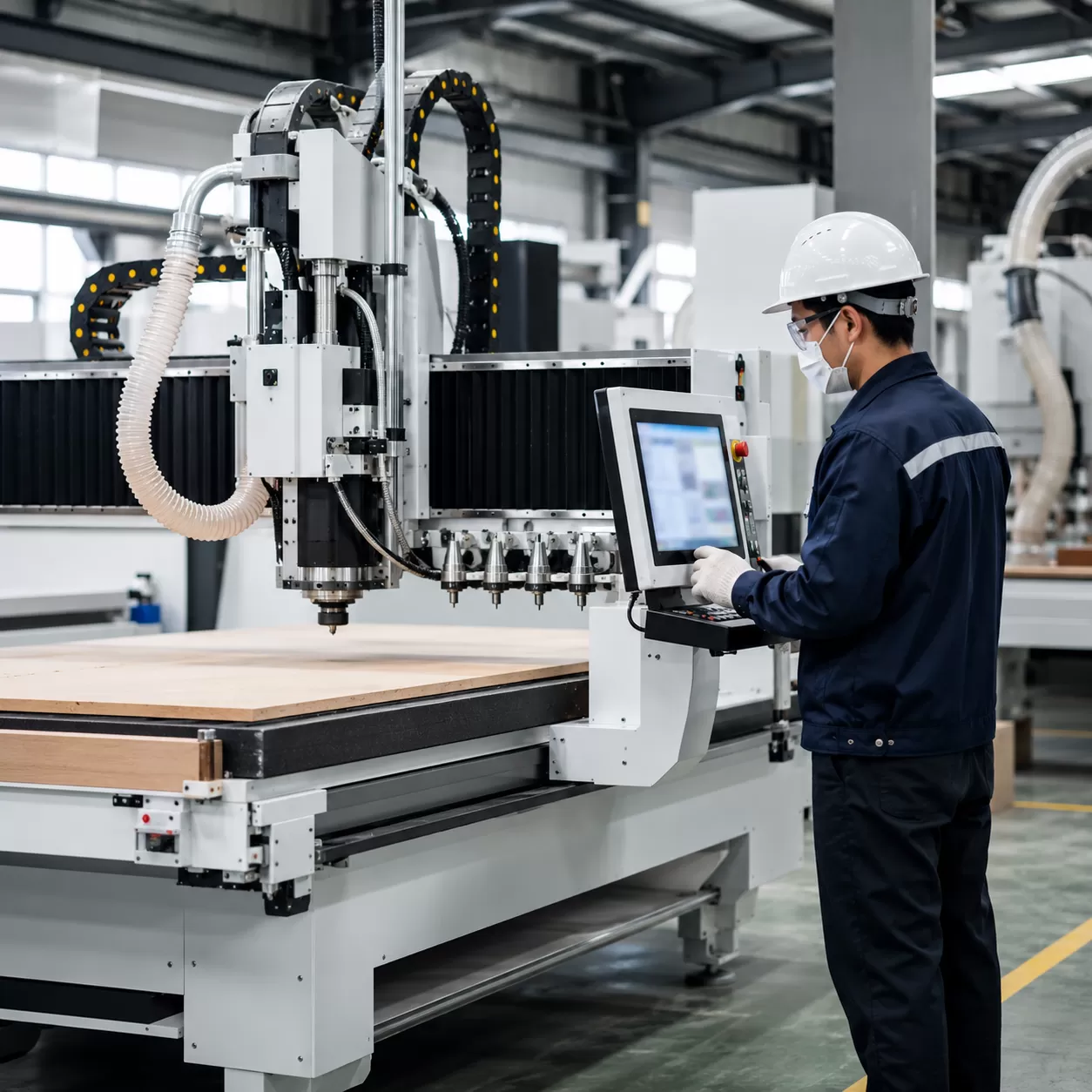

Factory-Direct Engineering Support
We cut out the middleman. You get direct access to the very engineers who designed and built your 3-axis CNC machine. Whether you need help optimizing your toolpaths for intricate plywood cutting machine projects or troubleshooting a complex job, our team is a phone call or message away. We also stock a complete inventory of essential CNC router parts to keep your shop running with zero costly downtime.
Comprehensive Investment Protection
Your peace of mind is our priority. Every ProMach machine comes backed by a rock-solid warranty covering the frame, electronics, and heavy-duty spindle motor. We protect your investment so you can focus on scaling your business and boosting output.
Ready-to-Run Delivery
We know you want to start cutting immediately. That is why our 48×48 CNC table ships fully assembled, aligned, and calibrated.
| Delivery Step | What We Do | What You Do |
|---|---|---|
| Testing | Full factory run-time check | None |
| Assembly | Gantry, rails, and wiring pre-installed | None |
| Setup | Secure the machine and connect power | Start cutting |
With minimal unboxing adjustments required, you will go from delivery truck to first cut in record time.
Frequently Asked Questions (FAQ)
Can the ProMach 4×4 CNC Router fit through a standard door?
No, the fully assembled 4×4 CNC router cannot pass through a standard 36-inch commercial or residential doorway. The structural footprint and wide gantry clearance required for a true 48×48 CNC table make it too wide. However, we engineer the machine with a modular setup, allowing you to easily remove the gantry or the base leg stand during delivery to navigate tight workshop entrances.
What power supply is required for operation?
The ProMach 3-axis CNC machine requires a stable 220V single-phase or three-phase power supply depending on your choice of spindle motor.
- 110V Systems: Generally insufficient for industrial-grade, continuous production.
- 220V Systems: Necessary to deliver consistent torque to the NEMA 34 stepper motors and run the high-frequency 3HP spindle without risking voltage drops.
If your shop only has standard 110V power, you will need to install a dedicated 220V line before your machine arrives. If your production expansion requires shifting toward heavy-duty cutting alongside other workshop upgrades, you might also consider checking your workflow compatibility with other primary equipment like a dedicated CNC milling machine to ensure your power grid can handle the load.
Is this CNC carving machine suitable for a 3D carving business?
Yes. The ProMach functions as a heavy-duty CNC wood router and high-precision engraving machine capable of complex 3D raster carving. Because the system utilizes zero-backlash ball screws and rigid linear guide rails, it maintains extreme accuracy over long, multi-hour 3D carving paths on plywood sheets, dense hardwoods, and plastics. This stability eliminates stair-stepping artifacts, giving your business a retail-ready finish straight off the table.
