Overview

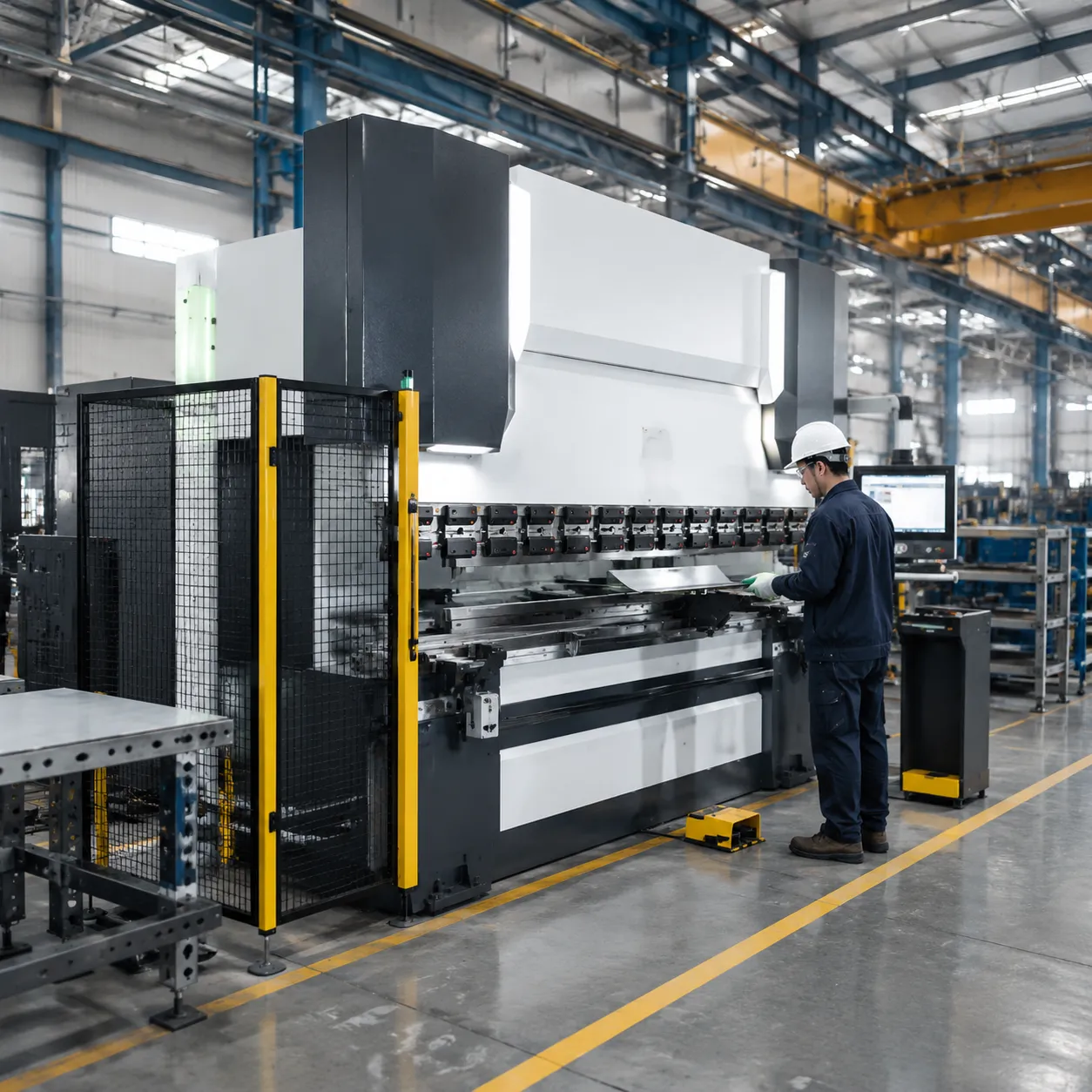

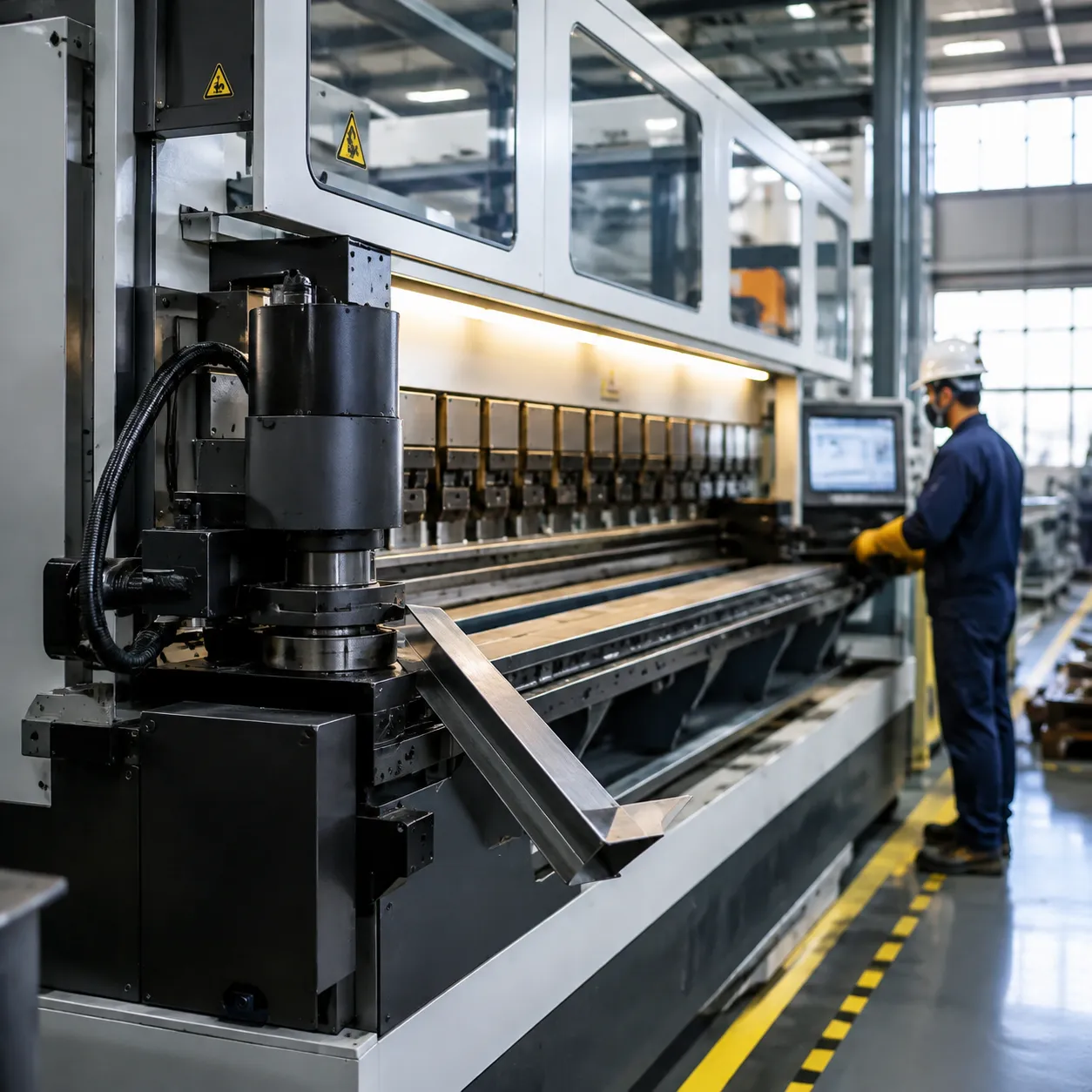

Customized automatic cnc bending machine programs scale press brake and sheet metal panel bender cells with custom tonnage and flexible bed width configuration to 6,000 mm.
Springback correction, touchscreen visual programming, and hybrid cnc drives support high precision industrial bending across metal fabrication lines.
OEM/ODM scope covers segmented tooling, regional voltage, and automation tiers without forcing a catalog frame size.
Tailored OEM/ODM Engineering Options
Programs engineer every customized automatic cnc bending machine to match shop-floor layout, part geometry, and production volume with freedom over frame architecture, tooling systems, and factory power integration.
| Frame Parameter | Customization Scope | Primary Application |
|---|---|---|
| Bed Width Configuration | 1,200 mm to 6,000 mm | Compact parts to extra-long sheet metal forming |
| Tandem Configuration | Dual-machine synchronized beds | Heavy architectural panels & long structural sections |
| Throat Depth & Open Height | Scalable up to 800 mm | Deep-box enclosures, wide flanges & complex geometries |
Bespoke Frame Dimensions & Working Capacity
Standard frames often restrict your operational freedom. Programs configure tailored press brake and sheet metal panel bender frames for industrial bending duty:
Custom Tooling & Global Electrical Adaptability
To maximize output quality across various metal alloys and regional manufacturing plants, we tailor the tool interfaces and power systems directly to your shop needs:
- Segmented Quick-Change Tooling: Fast-clamping top and bottom tool holders engineered to cut setup times on short-run batches.
- Custom-Radius V-Dies: Specially hardened dies manufactured for non-standard radii and high precision bends—pair with CNC bending machine tools for segmented quick-change setups.
- Scratch-Free Bending Solutions: Specialized polymer die inserts and protective tooling options that protect polished stainless steel and aluminum finishes.
- Global Power Synchronization: Factory-installed power adaptation supporting 208V, 230V, 380V, and 480V 3-phase electrical grids worldwide.
Share bed length, tonnage, material gauge, and automation scope for itemized customized automatic cnc bending machine pricing—Contact ProMach with STEP/DXF profiles and voltage specification.
Intelligent Automation & Working Cell Integration
3D CAD/CAM Offline Bending Software & Collision Simulation
Touchscreen visual programming and offline CAD/CAM keep setup off the floor so cells spend more time in industrial bending cycles.
- Direct Vector Import: Seamlessly imports standard CAD file formats including STEP, IGES, and DXF without manual code re-entry.
- Automated Bend Sequences: Visual programming assigns tooling layout and bend order without manual code entry.
- 3D Virtual Collision Detection: Simulates the entire bend path in real time to catch crashes, prevent tool damage, and eliminate material scrap during setup.
Robotic Automated Bending Cell & Sheet Follower Synchronization

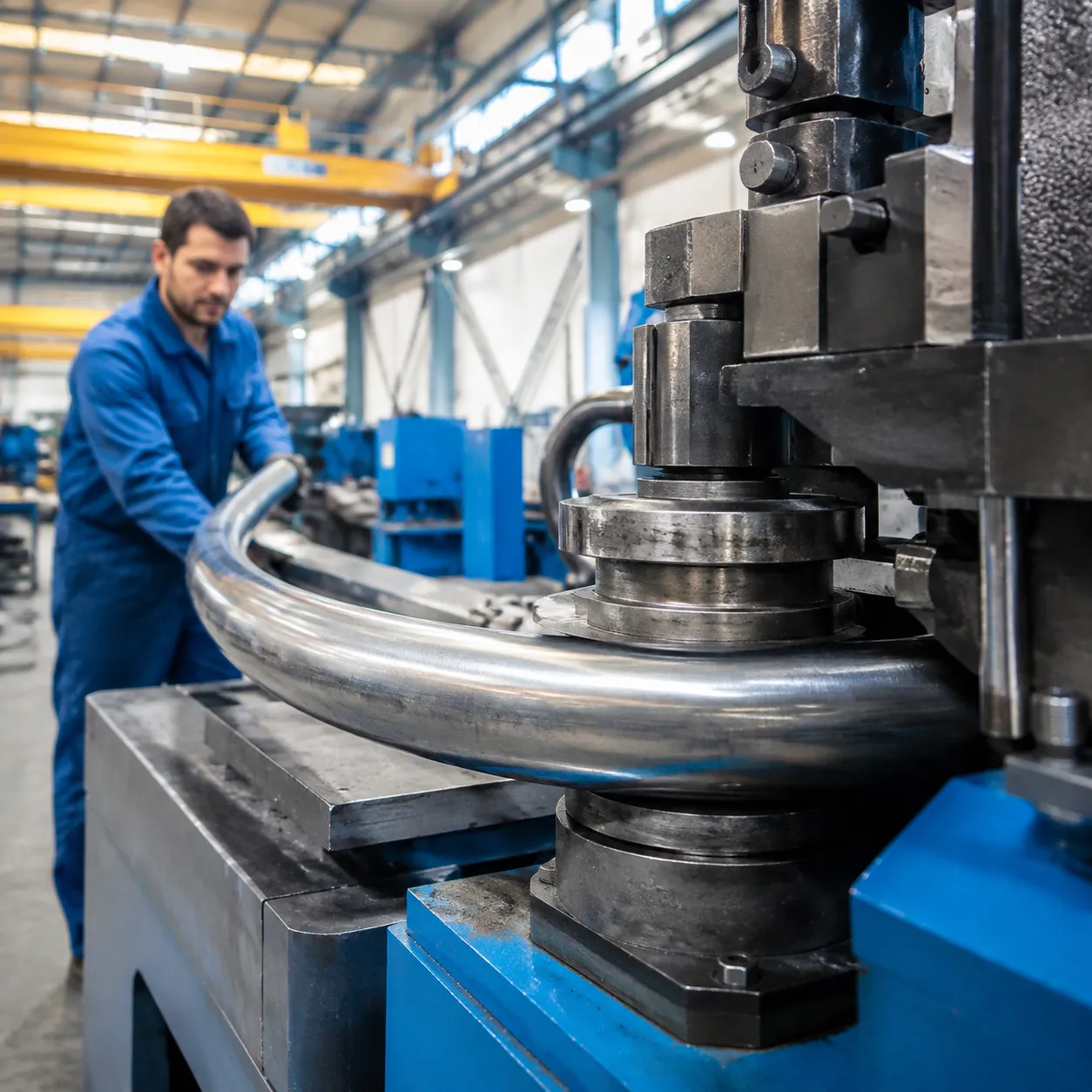

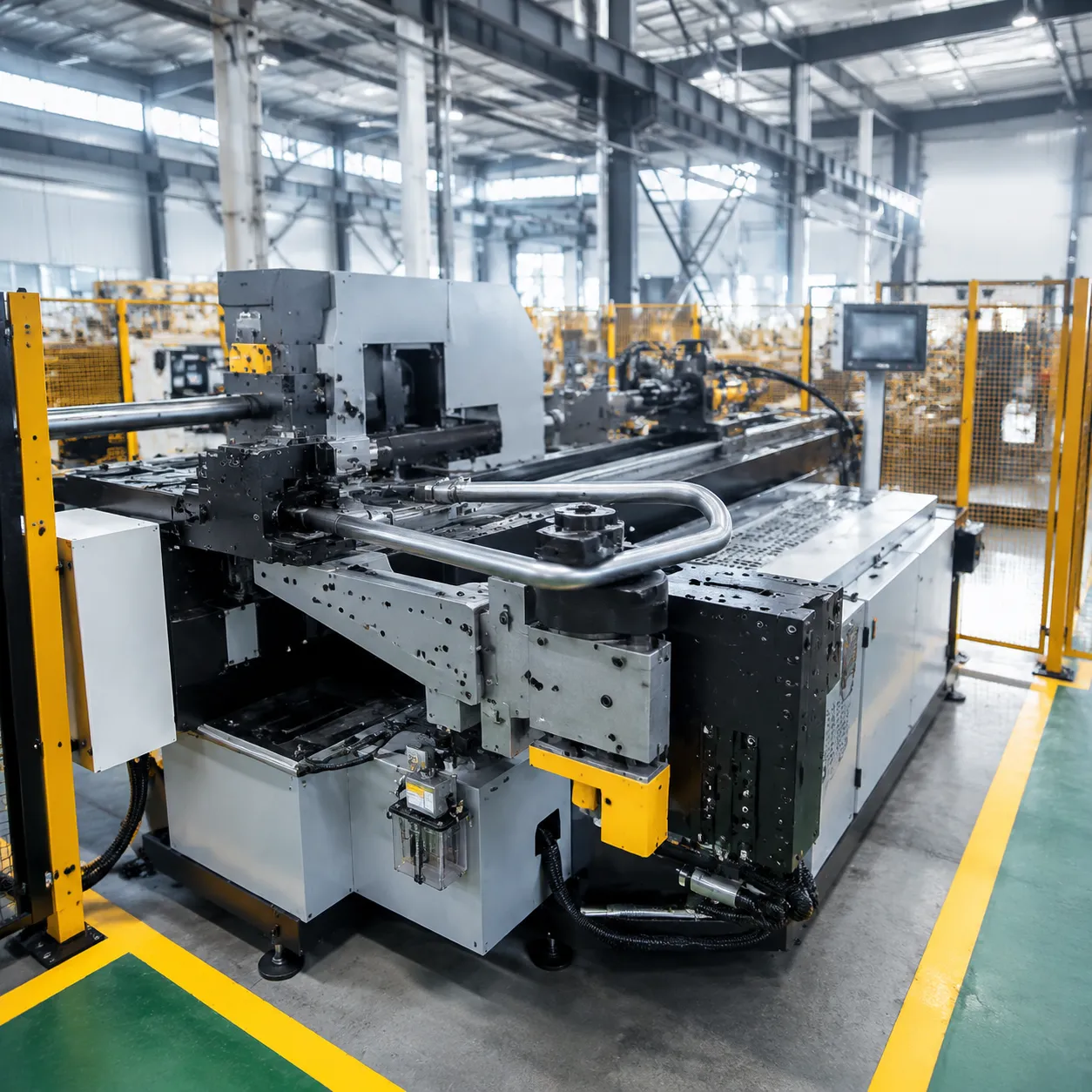

For high-volume cells, material handling integrates with CNC machine bending systems that pair sheet lines with tube benders, mandrel tube bender modules, and automated tube processing when plants run mixed formats.
- 6-Axis Robot Integration: Built-in I/O supports robotic loading and robot unloading for continuous unattended cycles.
- Sheet Metal Follower Support System: Speed-synchronized followers match ram lift with variable motor speed control during the bend stroke.
- Zero Part Whipping: Prevents reverse bending deformation, surface scratch marks, and sheet whipping on heavy, large-format metal stock.
Structural Rigidity & High-Precision Hardware
Frame flex destroys bend accuracy on long parts; stress-relieved steel frames and active deflection control deliver high precision backgauge repeatability on every hit.
Stress-Relieved Annealed Frame Construction
- Thermally Annealed High-Tensile Steel: Our press brake frames undergo full thermal stress-relief annealing to eliminate internal manufacturing stresses.
- Zero Bed Warping: Withstands maximum ram forces without structural twisting or frame deflection.
- Heavy-Duty Foundation: Delivers long-term alignment and stability for high-volume metal fabrication applications.
Dynamic V-Axis Crowning System & Multi-Axis Backgauge
- Real-Time Mechanical Crowning: Our dynamic CNC wedge compensation system automatically adjusts for bed deflection during the bend cycle, ensuring consistent bend angles across the entire workpiece length.
- Up to 9-Axis Backgauge Control: Fully customizable with X, R, Z1, Z2, and Delta X axes to handle complex, multi-sided panel geometries effortlessly.
- High-Precision Hardware: High-torque AC servo drives paired with precision ball screws deliver superior bending backgauge repositioning accuracy down to ±0.01 mm.
Industrial Technical Parameter Matrix
| Performance Metric | Standard & Optional Specs |
|---|---|
| Bending Force Capacity | 30T to 500T nominal force (Extended custom options up to 1,000T+) |
| Bed Length Range | 1,200 mm to 6,000 mm (Tandem bed configurations available for extra-long parts) |
| Control Systems | Delem DA-58Tx, DA-66T, DA-69T, or ESA 3D graphical touch interfaces |
| Precision Specs | ±0.3° dynamic angle precision and ±0.01 mm backgauge repositioning accuracy |
| Hardware Subsystems | Up to 9-axis backgauges, hybrid cnc servo-electric hydraulic drives, and Lazer Safe optical curtains |
Parameter matrices cover standard shop performance through heavy-duty custom tonnage and hybrid cnc servo-hydraulic drive options.
Core System Features
- Flexible Bed Width Configuration: Built to scale seamlessly from compact standalone units to multi-machine tandem lines.
- High Precision Backgauge: Drives up to 9 independent axes using high-torque AC servo motors and precision ball screws.
- Hybrid Servo-Electric Drives: Hybrid cnc servo-hydraulic drives cut power draw while supporting variable motor speed ram profiles.
Industrial Applications for Customized Automatic CNC Bending Machines
High-mix production runs across electrical, HVAC, transportation, and architectural sectors—see CNC bending machine for sheet metal baseline specs when comparing standalone versus automated sheet metal panel bender layouts for industrial bending duty.
Electrical Enclosures & Control Cabinets
- Precision Folds: Form tight-tolerance 90° panel folds, return flanges, and multi-side box enclosures.
- Seamless Fit: Guarantees exact gap alignment on NEMA-rated electrical cabinets, reducing downstream welding time.
- Automated Processing: Paired with a sheet metal panel bender cell for effortless complex panel production.
HVAC & Architectural Metalwork
- Surface Protection: Delivers scratch-free forms across galvanized steel, aluminum, and brushed stainless steel sheet stock.
- Cosmetic Quality: Eliminates tooling marks on architectural panels, fascia, and commercial HVAC ducting.
- Material Versatility: Adjusts quickly for varying material springback on high-finish decorative alloys.
Heavy Transportation & Structural Components
- Deep Profile Forming: Handles heavy-duty bends for automotive chassis components, rail profiles, and heavy machinery covers.
- High Tonnage Support: Built with custom tonnage capacities and deep throat depths to prevent frame flex on thick plate work.
- Repeatable Accuracy: Maintains strict tolerances on structural channels and long profile parts.
Frequently Asked Questions
Direct answers on OEM scope, crowning, robotics, CAD import, springback correction, and tube platform pairing for customized automatic cnc bending machine programs.
| Question | Answer |
|---|---|
| Custom OEM/ODM Bending Options | Programs configure every customized automatic cnc bending machine to match your exact part geometries and shop floor requirements.
|
| Dynamic V-Axis Crowning & Angle Consistency | Our dynamic V-axis crowning system uses CNC-controlled mechanical wedges along the bed length to prevent angle distortion.
|
| Springback Correction in High-Precision Cells | Offline simulation and dynamic V-axis crowning wedges deliver automatic springback correction before the first production hit—reducing manual shimming on high precision angle control. |
| Sheet vs. Tube Benders on One Controller | Sheet press brake and sheet metal panel bender lines can share a controller backbone with adjacent tube benders, a mandrel tube bender module, and cut-and-bend automated tube processing when plants run mixed metal fabrication formats. |
| Robotic Cell & Line Integration | Every multi-axis CNC bending machine uses standardized hardware and software interfaces for automated cell integration.
|
| Supported 3D CAD/CAM Offline Software Formats | Touchscreen visual programming and offline CAD/CAM lets you generate programs on a PC so your press brake keeps running production.
Send bed length, tonnage, and seal/automation requirements via Contact ProMach for OEM layout review. |
