5 axis cnc stone router hybrid platform for shops running blade rips and routed profiles on one wet-cut bed.
Platform: Bridge saw plus routing spindle with computer numerical control on a moving table work center.
Axes: Three linear axes plus two rotational axes for continuous 5-axis stone processing.
Built for: Kitchen countertop making, miter cuts, and edge profiles without mid-slab repositioning.
5 Axis CNC Stone Router — Multi-Axis Advantage for Stone Fabrication
Continuous 5-axis linkage removes 3-axis repositioning bottlenecks on heavy marble and granite slabs.
Why Standard 3-Axis Saws Create Massive Bottlenecks
- Constant manual intervention: Operators spend more time nudging, measuring, and turning heavy slabs than the machine spends cutting.
- High scrap rates: Every manual adjustment introduces a margin of error, leading to ruined granite or quartz slabs.
- Limited geometry: Simple 3-axis setups cannot handle complex 3D profiles or deep bevels without custom, time-consuming jigs.
The Magic of Continuous 5-Axis Linkage for Complex Cuts
By adding two rotational axes to the standard three linear axes, our 5-axis stone CNC router interpolates simultaneously across all directions. This continuous movement allows the tool spindle to tilt and rotate dynamically.
Three linear axes plus two rotational axes drive continuous 5-axis linkage under computer numerical control.
Whether operators execute a flawless 45-degree miter cut, profiling a curved edge, or carving intricate shapes, the tool maintains the perfect contact angle. This results in incredibly smooth finishes directly off the machine, drastically reducing the hand-polishing time required at the bench.
One-Time Positioning: Place the Slab Once and Walk Away
One slab load covers straight cuts, sink cutouts, faucet holes, and edge profiling in a single uninterrupted program on the moving table.
- Zero re-clamping: Eliminate the risk of shifting the stone mid-process.
- Increased shop safety: Fewer physical interventions mean a safer environment for floor teams.
- Maximized spindle uptime: Keep the spindle running and generating revenue while teams prep the next job.

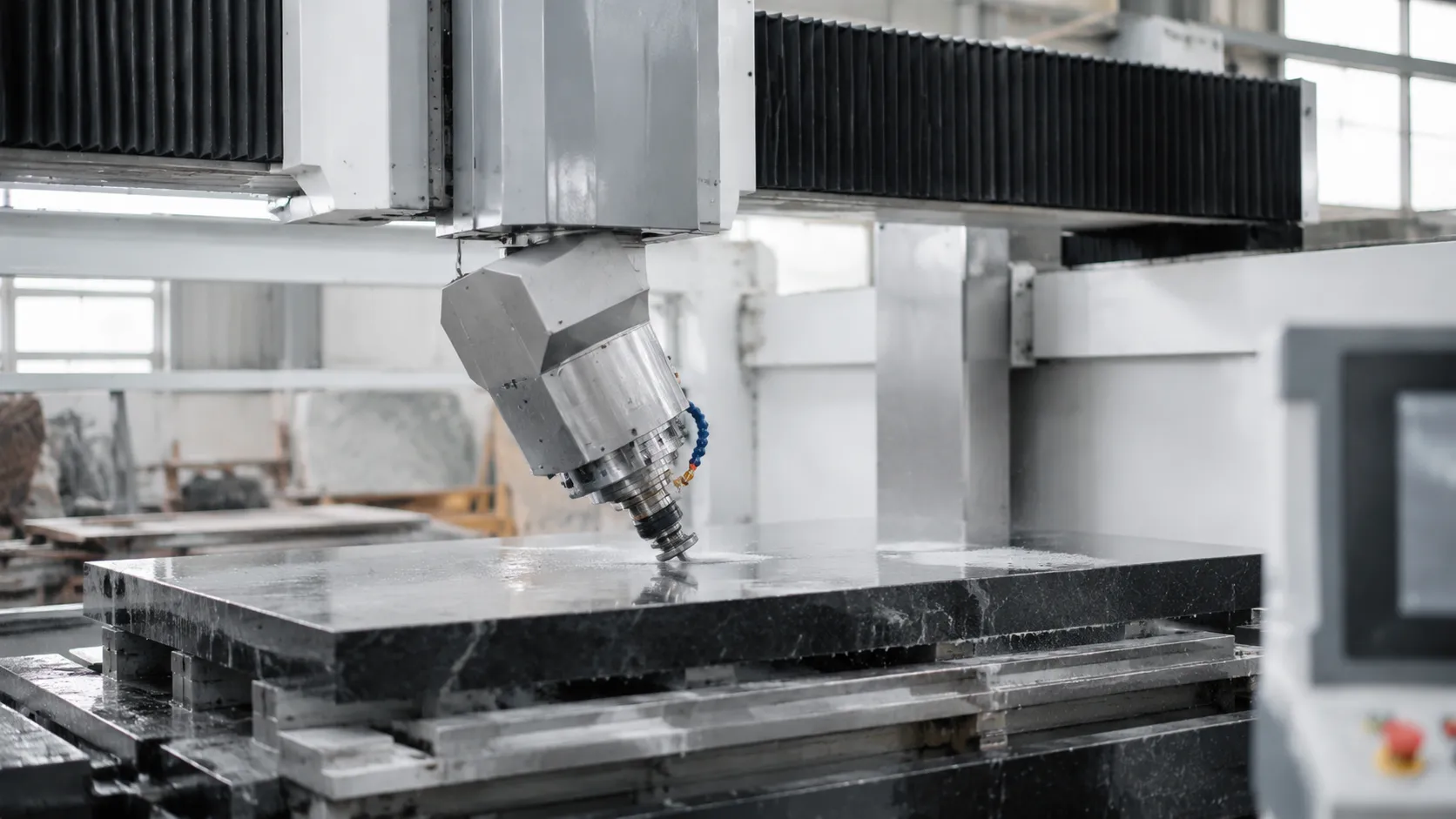

Hybrid Design: 5-Axis Router & Bridge Saw Combo
Two Machines in One Spindle
Hybrid head combines a circular blade and routing spindle—see stone CNC router with saw price tiers for blade-plus-bit layouts. The same bed delivers bridge saw rips and stone carving machine profiling.
Smart Blade-to-Bit Transitions
- Straight and miter cuts: Circular blade rips slabs and cuts clean 45° chamfers.
- Tight radii & sinks: Head swaps to router bits for corners and special-shaped stone profiles.
- Continuous toolpathing: CAM coordinates blade-to-bit moves without manual gantry jogging.
Hands-Free ATC Production
Carousel ATC stone CNC router packages swap profiling wheels, core drills, and finger bits in seconds—compare ATC stone CNC router factories for carousel-heavy programs.
| Feature | Shop benefit |
|---|---|
| Automatic Tool Changer (ATC) | Swaps profiling wheels, core drills, and finger bits in seconds without manual operator intervention. |
| Integrated Tool Holder Rack | Keeps tools organized, clean, and protected from water slurry. |
| Frictionless Workflow | Let the machine run an entire kitchen countertop making job—from raw slab to finished edge profiles—completely unattended. |

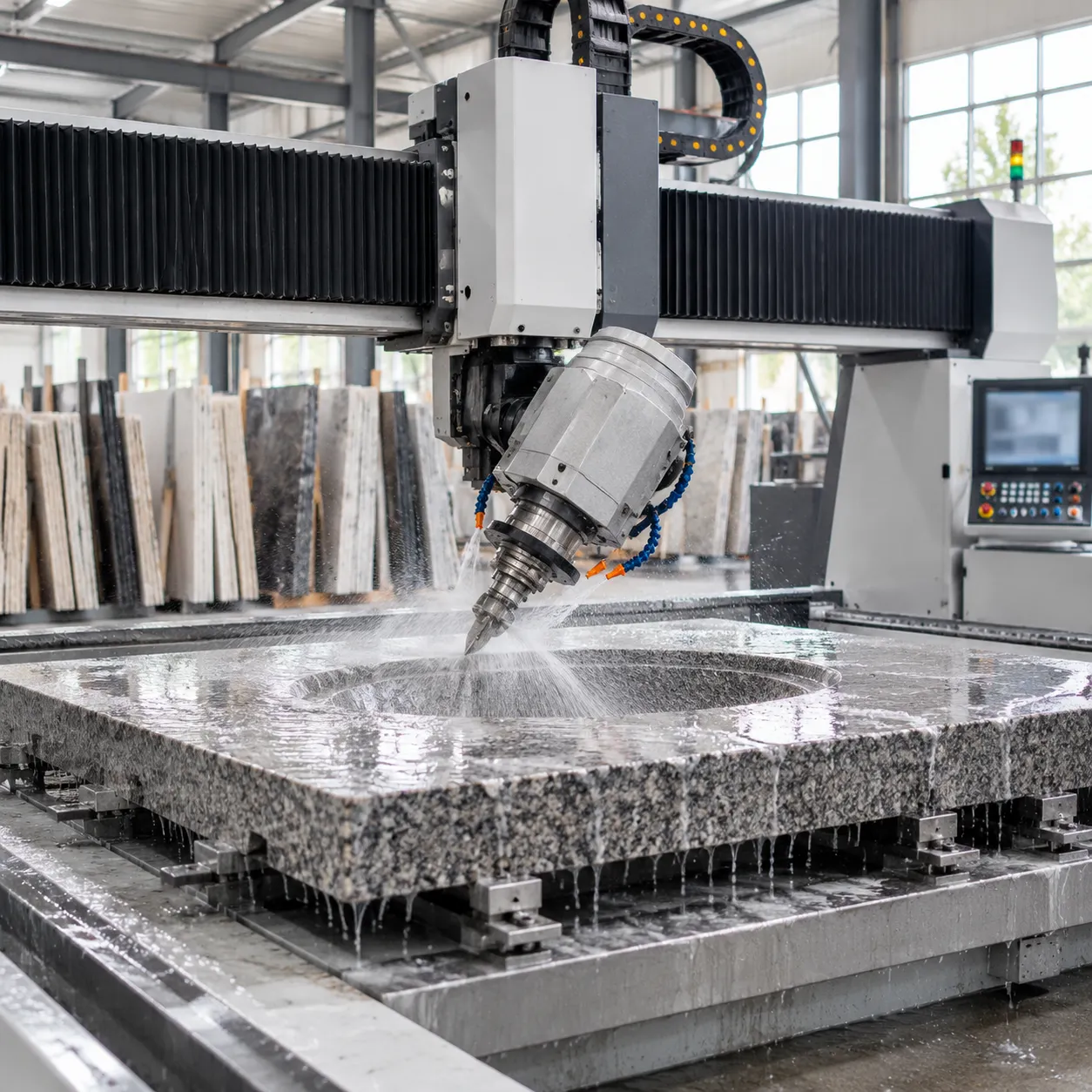

5 Axis CNC Stone Router — Heavy-Duty Interpolator Specs
Monolithic steel frame and closed-loop servos keep interpolation stable on dense marble and granite slabs. Compare 4-axis stone CNC router programs when full 5-axis linkage is not required.
Monolithic Steel Frame & Slurry Control
- Monolithic Welded Steel Frame: Stress-relieved steel frames damp vibration for clean edge profiles and longer diamond life.
- Rust Proofing & Slurry Management: Stone fabrication is a wet, messy job. Machines feature multi-stage protective coatings, stainless steel guards, and an integrated wet-cut sunken bed to channel water and abrasive stone slurry away from critical components.
High-Torque Spindle & Motion Control
- High-Torque Water-Cooled Spindles: Built specifically for grueling granite quartz fabrication CNC jobs. These spindles deliver consistent torque at low speeds for heavy milling and rapid material removal.
- Servo-Driven Precision: Closed-loop servo motors handle high-speed travel without losing positioning. Combined with automatic slab thickness sensing, the machine automatically adapts to slight material variances to prevent tool crashes.
| Feature | Heavy-Duty CNC Stone Work Center Specs | Shop benefit |
|---|---|---|
| Frame Design | Heavy-duty monolithic welded steel | Zero vibration; dead-on accuracy |
| Spindle Type | High-torque, water-cooled | Effortless carving on hard quartz and granite |
| Slurry Defense | Wet-cut sunken bed & multi-stage rust proofing | Maximizes the lifespan of linear guides and bearings |
| Motion System | Closed-loop servos with thickness sensing | Prevents tool breakage and automatically adjusts for uneven slabs |
High-Value Output: What Shops Can Build
Beyond straight rips, this 5 axis cnc stone router handles high-ticket custom work—typical outputs include:
Kitchen Countertop Making & Miter Cuts
- Flawless Waterfall Edges: Execute seamless 45-degree miter cuts on tough marble and granite slabs without chipping.
- All-in-One Processing: Handle sink cutouts, faucet holes, and intricate edge profiles or chamfers in a single program.
- Precision Backsplashes: Get perfectly matched seams and zero-gap fitments every single time.
3D Stone Carving & Architectural Work
The system doubles as an advanced stone carving machine, giving you full control over 3D space:
Architectural Features: Easily turn out massive columns, pillars, and detailed column bases.
Custom Memorials: Carve deep, crisp relief portraits, custom lettering, and artistic 3D shapes.
Fireplaces & Mantels: Deliver high-end, carved hearths that command a premium price.
Special-Shaped Stone & Custom Furniture
Standard saws struggle with curves. The 5-axis setup makes special-shaped stone processing effortless:
Round Tables & Arcs: Cut perfect circular tops, oval conference tables, and radius steps.
Complex Grooving: Run drainage grooves for drainboards and decorative wall panels seamlessly.
| Application | Key Feature Used | Value add |
|---|---|---|
| Kitchen Countertops | Interpolated cutting & beveling | Elimination of manual seam polishing |
| Architectural Pillars | Continuous rotational axes | Automatic 3D turning without manual flipping |
| Custom Fireplaces | Multi-axis carving & routing | Premium pricing for custom craftsmanship |

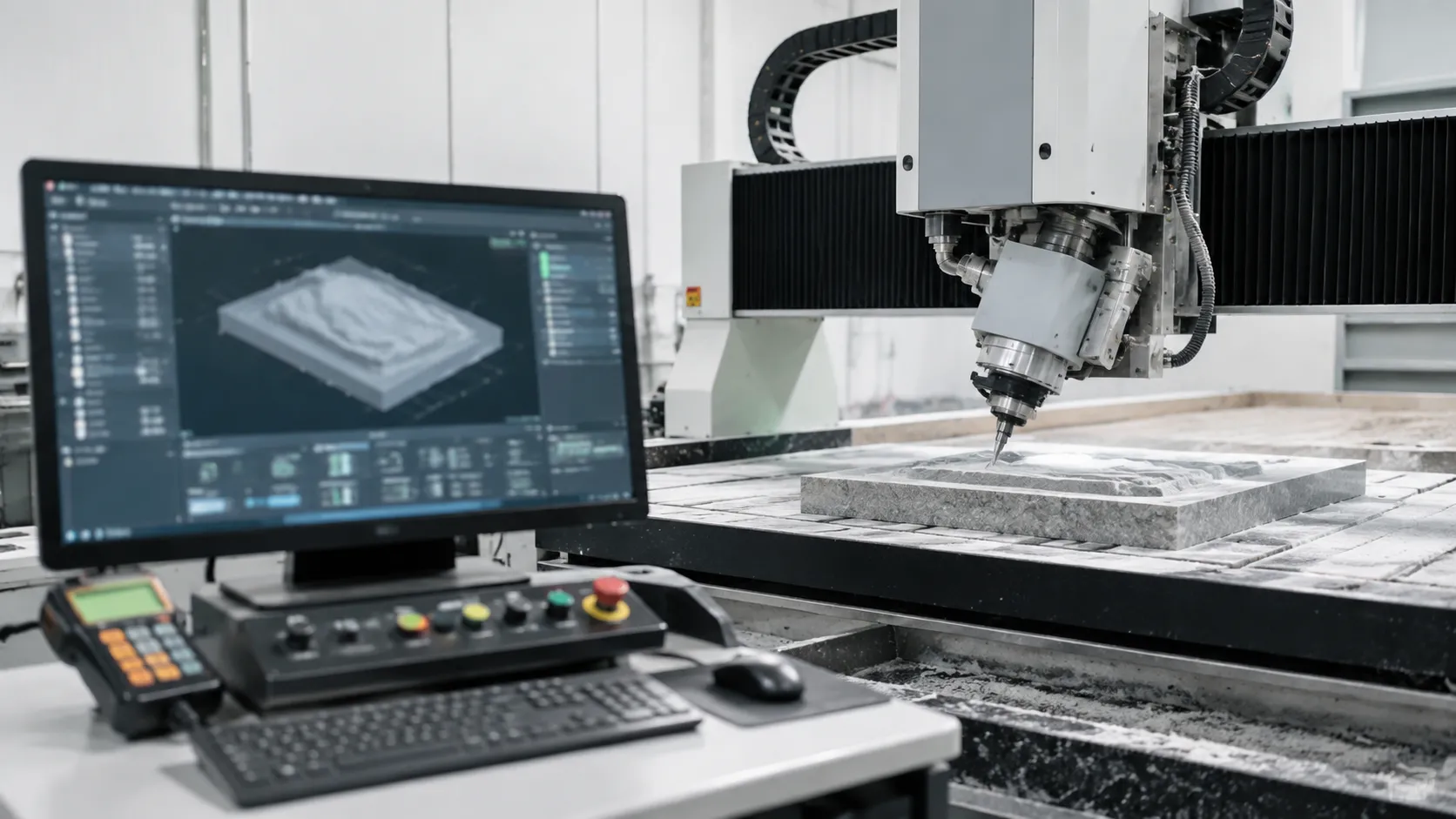

CAD/CAM Software & Smart Shop-Floor Integration
Touch-screen CAM bridges office DXF layouts and wet-cut stone processing on the floor.
Intuitive, Shop-Floor-Ready Touch Interface
Industrial touch controls suit dust, water, and fast-paced fabrication:
- Industrial Touch Screen: Large, high-contrast, and responsive even when operators wear gloves.
- Visual Toolpath Simulation: Watch the 3D cutting path run on screen before the spindle ever touches the stone to prevent costly mistakes.
- One-Button Recovery: If you experience a power outage or need to pause mid-job, you can resume cutting right where you left off with zero loss of alignment.
Direct DXF Imports: No Complex Coding Required
You do not need a degree in computer science to run this multi-axis CNC stone machining center.
- Plug and Play: Export your kitchen layouts or custom designs directly from standard CAD software as DXF files.
- Auto-Toolpathing: The system automatically converts your drawings into precise tool and blade paths, handling complex miter cuts and edge profiles with a few clicks.
Smart Nesting with Overhead Camera Systems
Stop wasting expensive marble and granite slabs on manual layout guesswork. Integrated overhead camera system simplifies your entire preparation process:
| Feature | How It Works | The Real-World Benefit |
|---|---|---|
| Slab Calibration | High-res camera captures the exact slab dimensions on the table. | No manual measuring or rough estimates. |
| Fissure & Vein Avoidance | Drag and drop your digital template directly over the live slab photo. | Avoid natural cracks and align veins perfectly for seamless seam matching. |
| Yield Optimization | Smart nesting software packs pieces as tightly as possible. | Cuts down on waste, putting more money back in material budgets. |
Ordering Information, Lead Times & Factory-Direct Pricing
Every configured 5 axis cnc stone router quote includes 5-axis interpolation video, blade-to-bit transition tests, and export crating before shipment. Standard bridge-saw hybrid builds ship in 45–60 business days ex-factory; custom ATC or camera-nesting packages add 10–15 days for engineering sign-off.
| Program | MOQ | Typical lead time |
|---|---|---|
| 5-axis bridge-saw hybrid stock | 1 set | 45–55 business days |
| Hybrid + overhead camera nesting | 1 set | 50–60 business days |
| Custom 5-axis OEM program | 1 set | 55–70 business days |
5-Axis Stone CNC Router FAQs
| Question | Answer |
|---|---|
| What materials can a 5-axis stone CNC router cut? | Quartz, sintered stone, hard granite, and soft marble and granite blends on one stone cutting machine platform. |
| Do operators need specialized G-code programmers? | DXF import and auto-toolpathing cover kitchen countertop making, miter cuts, and standard edge profiles without hand-coded G-code. |
| How fast does ATC swap blade and router tools? | Typical carousel swaps take 10–15 seconds from bridge blade to finger bits for sink cutouts. |
| What power and footprint does a 5-axis hybrid require? | 3-phase 220V/380V/460V service, ~20×15 ft bay with safety clearance, wet filtration at 40–60 GPM, and 110 PSI dry air for ATC. Share layout drawings via Contact ProMach for commissioning scope and blade-spindle preferences. |
Share slab size, voltage, and tooling mix for itemized 5 axis cnc stone router pricing—Contact ProMach with DXF samples and wet-test scope.
