4x8ft cnc stone router for fabrication shops: 1300×2500 mm full sheet cutting (stone slabs, not plywood panels); 3.0–11 kW wet spindle; marble engraving, granite cutting, and countertop fabrication; direct 4x8ft cnc stone router supplier with MOQ 1 set.

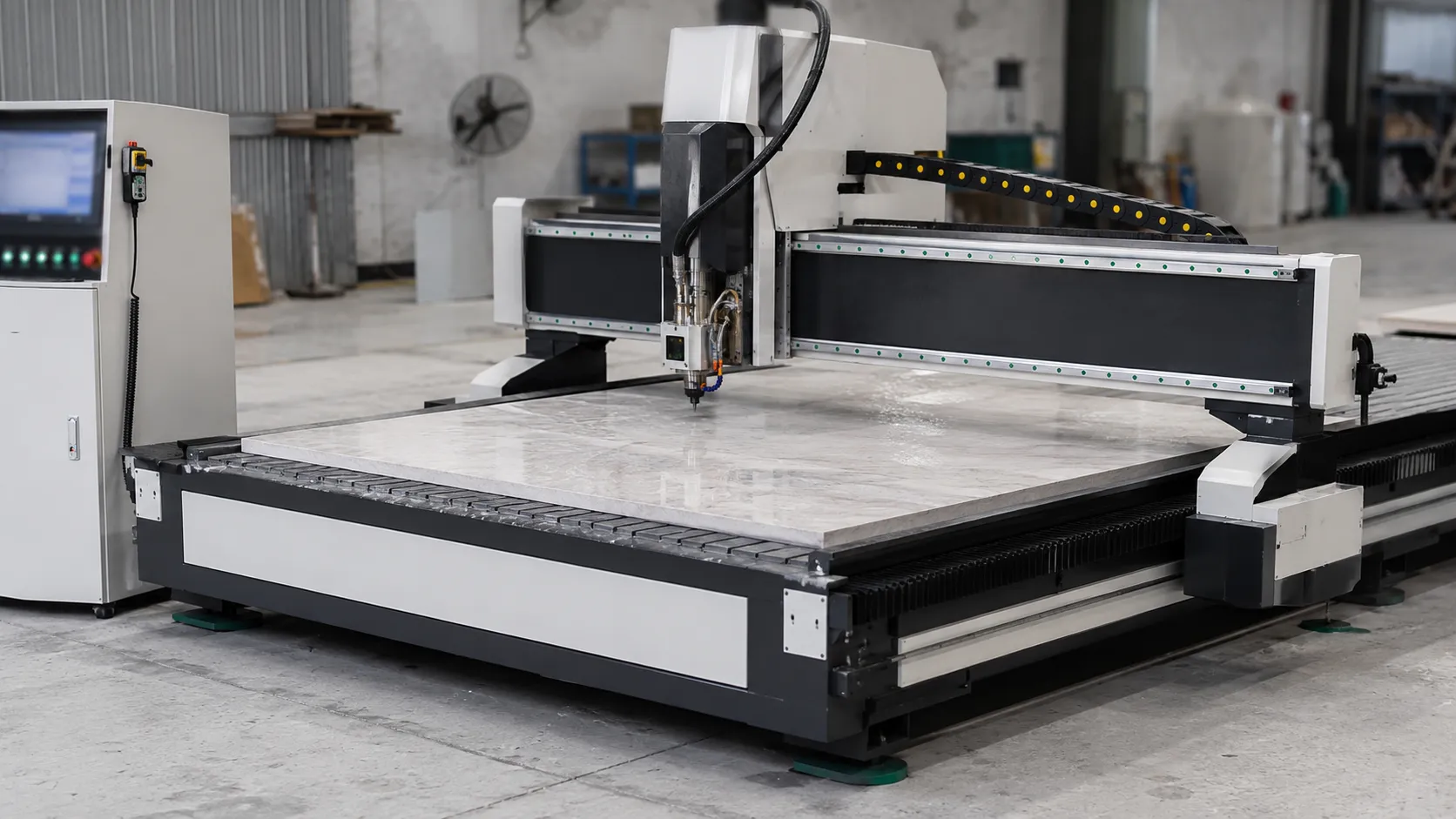

4x8ft CNC Stone Router — Technical Specifications & Configuration Matrix
The standard 1325 layout delivers 4×8 full sheet cutting for marble engraving, granite cutting, and engineered artificial stone on one stone carving machine bed. Compare affordable stone CNC router tiers for entry-level wet-cut programs.
| Feature / Component | Standard Configuration | High-Performance / ATC Upgrade |
|---|---|---|
| Working Area (X x Y x Z) | 1300mm x 2500mm x 300mm (51″ x 98″ x 12″) | Customized Z-axis clearance up to 500mm |
| Spindle Power | 3.0 kW to 5.5 kW water-cooled spindle | Up to 11 kW ATC spindle (pneumatic tool change) |
| Frame Structure | Heavy-duty welded steel tube frame (stress-relieved) | Reinforced cast-iron gantry & uprights |
| X/Y-Axis Transmission | High-precision helical rack & pinion | Precision-ground helical rack & pinion |
| Z-Axis Transmission | Taiwan TBI anti-backlash ball screw | High-pitch TBI ball screw with brake |
| Guideways | Premium, double-sealed HIWIN linear square rails | Heavy-duty dustproof HIWIN rails (IP65 rated) |
| Drive Motors | High-torque Leadshine easy-servo / stepper | Yaskawa or Delta AC digital servo motors |
| Cooling System | Stainless steel water recirculation tank & dual-nozzle flood cooling | Automatic oil mist & slurry filtration system |
| Control System | Handheld DSP controller (A11/A18) | NC Studio or Syntec industrial control system |
Heavy-Duty Components Built for Wet-Cutting
The wet-cutting CNC stone machine eliminates the common failure points associated with stone slurry and heavy loads:
- Rigid Steel Frame: Overbuilt with thick-walled, industrial steel tubes that undergo thermal stress relief to prevent deformation over years of heavy use.
- Helical Rack & Pinion: Delivers smooth power transmission, high positioning accuracy, and virtually zero backlash on the X and Y axes, while the TBI ball screw guarantees vertical precision on the Z-axis.
- Double-Sealed Guideways: Premium HIWIN square rails feature custom scraper plates and bellows to keep abrasive stone dust and water slurry out of the bearing blocks.
- Water Recirculation System: The integrated stainless steel bed and dual-nozzle cooling system keep diamond tooling and the stone workpiece cool, extending tool life and preventing thermal cracking.

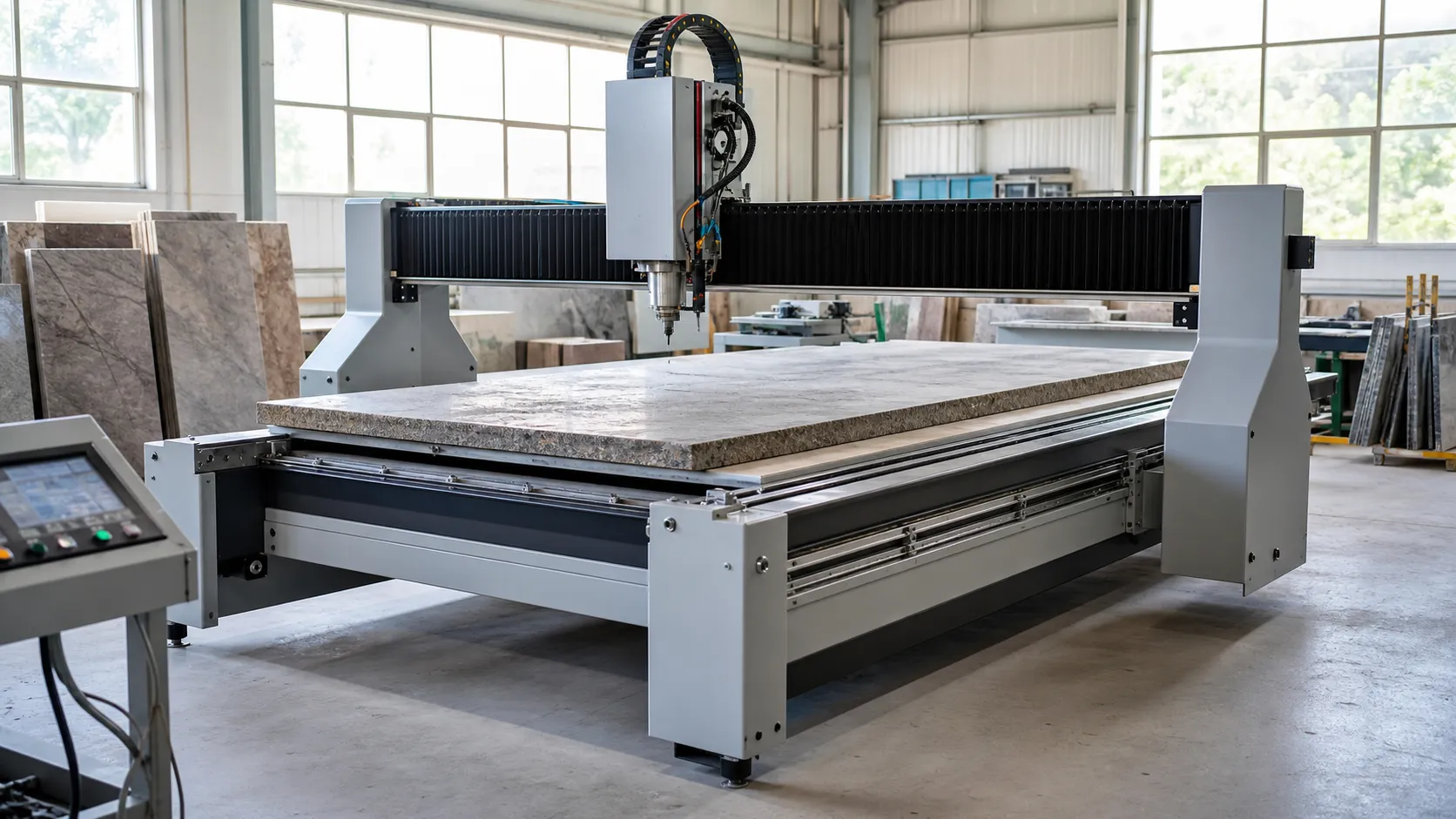

Engineering Rigidity: Built for Heavy Stone Fabrication
Two-ton slab loads punish under-built gantries. This 4x8ft cnc stone router uses sunken-bed mass and annealed steel for vibration-free granite cutting.
Low Center of Gravity: The Sunken Bed Structure
- Maximum Slab Stability: The sunken-bed frame lowers the work surface and drops the center of gravity of the stone carving machine, preventing top-heavy shaking during high-speed cutting.
- Easy Loading: Lower bed height simplifies loading massive 2-ton slabs with gantry crane or forklift.
- Vibration-Free Cutting: Eliminates structural sway common in flatbed designs for clean, chip-free edges on granite cutting passes.
Thermal Annealing: Vibration Dampening & Stress Relief
Heavy-duty steel gantry frames undergo thermal annealing to relieve internal weld stresses before final machining.
| Feature | Our Annealed Gantry Frame | Standard Welded Frames |
|---|---|---|
| Structural Stress | 100% relieved via heat treatment | High internal tension, prone to warping |
| Vibration Control | Absorbs high-speed spindle harmonics | Flexes and vibrates, causing tool chatter |
| Long-Term Precision | Maintains sub-millimeter accuracy for years | Warps over time, ruining cutting tolerances |
Slurry & Water Protection: Built for Wet-Cutting
Stone dust mixed with cooling water creates a highly abrasive slurry that can destroy linear rails and ball screws in weeks. Our wet-cutting CNC stone machine stops this damage before it starts with multi-layer, bellows-style dustproof and waterproof shields.
- IP65 Sealed Rails: Heavy-duty bellows completely seal off the premium HIWIN linear square rails from water splash and stone grit.
- Extended Component Life: Keeps the helical rack and pinion drive systems clean and fully lubricated, reducing maintenance downtime.
- Reliable Wet-Cutting: Lets you run continuous flood cooling on hard granite and engineered quartz without worrying about mechanical wear.

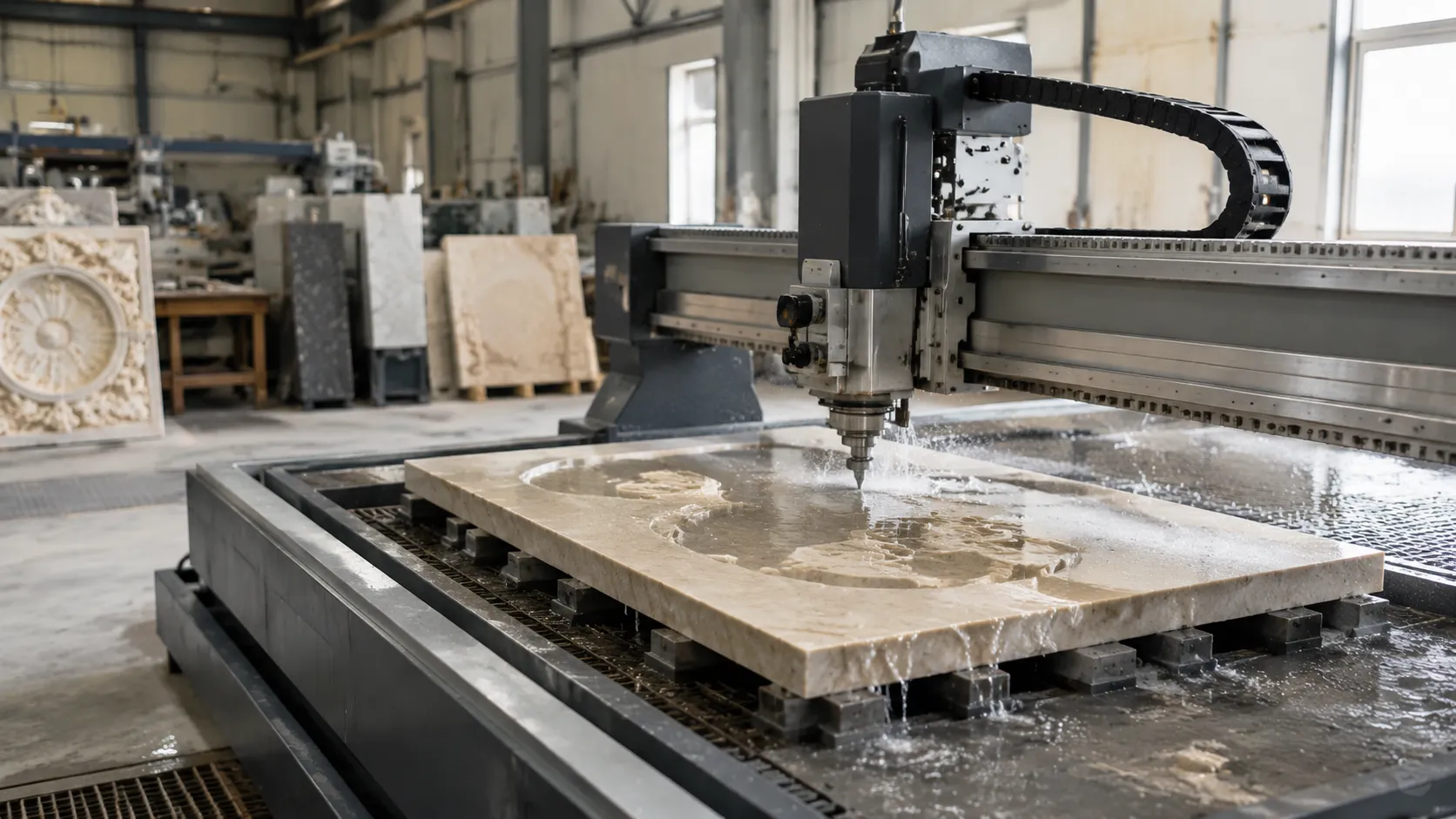

Materials & Versatile Industry Applications
Natural and engineered slabs—blue stone, sandstone, travertine, limestone, slate, and soapstone—run on the same wet-cut platform as monument headstone design and tombstone carving work. Unlike wood-only 4×8 plywood routers, this wet-cut platform handles dense stone slabs.
Hard & Soft Stone Processing
Wet-cut spindles with continuous flood delivery eliminate heat buildup on natural and engineered slabs.
- Hard Stones: Granite cutting, quartzite, basalt, and porphyry.
- Soft & Medium Stones: Marble engraving, sandstone, travertine, limestone, soapstone, and slate.
- Engineered Materials: Quartz countertop fabrication, artificial stone, sintered stone, and thick ceramics.
Key Industry Applications
| Industry | Common Applications | Key Machine Capabilities |
|---|---|---|
| Monument & Memorial | Tombstone carving, headstone design, deep 3D lettering, and portrait engraving. | High-precision Z-axis travel for deep carving; fine-detail etching on polished granite. |
| Kitchen & Bath | Countertop fabrication, automated edge profiling, sink-hole cutting, and basin drilling. | Rigid gantry preventing deflection during heavy lateral cuts in quartz and marble. |
| Architectural Stonemasonry | Custom pillars, columns, balusters, fireplace mantels, and 3D stone relief carving. | 4-axis rotary compatibility for cylindrical workpieces and heavy 3D engraving. |
Full-sheet 1300×2500 mm layouts deliver repeatability for high-volume countertop fabrication and custom tombstone carving without alignment drift.

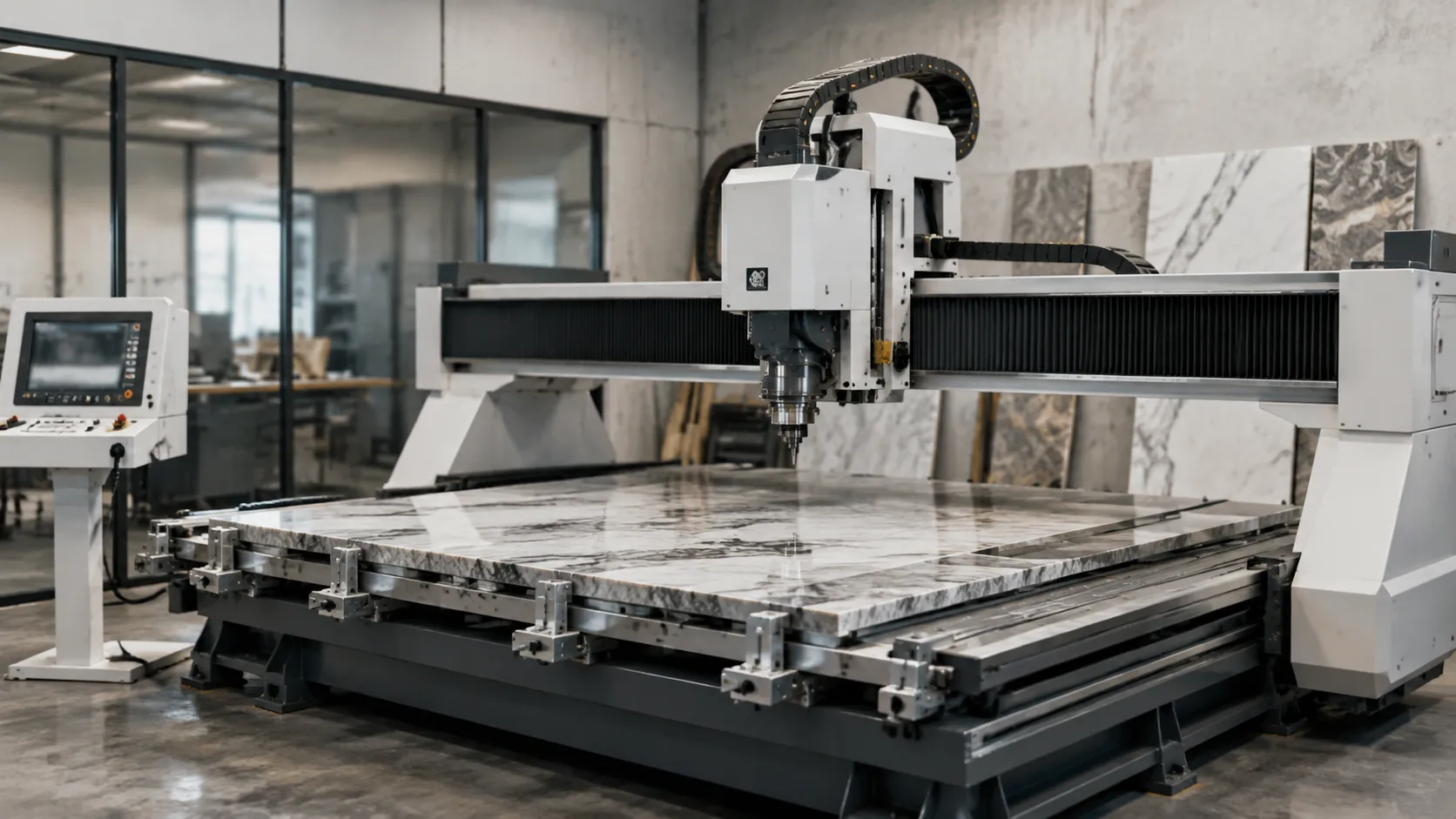

Custom OEM/ODM Upgrades for Your 4x8ft CNC Stone Router
Factory-direct 4x8ft cnc stone router supplier builds cover ATC carousels, 4-axis rotary add-ons, and regional voltage cabinets—see ATC stone CNC router factories for carousel-heavy programs.
Customization Options at a Glance
| Custom Upgrade | Best Used For | Key Specifications |
|---|---|---|
| 4th-Axis Rotary Device | 3D columns, pillars, balusters, and round stone carvings | Side-mounted or on-table; diameters from 200mm to 500mm |
| Automatic Tool Changer (ATC) | High-speed, multi-tool fabrication (profiling, drilling, carving) | Linear or carousel style; up to 11 kW high-speed spindles |
| Regional voltage electronics | Matching regional shop voltage requirements | 220V/380V/480V options; premium Schneider and Omron components |
4-Axis Rotary Stone CNC Router Upgrades
Side-mounted rotary keeps the full 4×8 bed clear; on-table units handle 4-axis stone CNC router pillar and baluster jobs.
High-Efficiency Automatic Tool Changer (ATC)
Linear racks suit 3–8 tool jobs; carousel ATC cuts changeovers under 8 seconds on quartz lines.
Regional Voltages & Premium Electronics
Control cabinets wire for single-phase 220V or three-phase 220V, 380V, or 480V layouts with Schneider contactors and Omron switches in IP65 electrical enclosures.
Share bed tier, spindle power, and material mix for itemized 4x8ft cnc stone router pricing—Contact ProMach with slab size and wet-test scope.
Factory-Direct Sourcing & OEM Customization Process
Five-step factory pipeline covers engineering, production, wet QC, export crating, and remote commissioning for every stone carving machine build.
The 5-Step Custom Sourcing Pipeline
- Application review: Material focus sets spindle power and bed configuration.
- Engineering: CAD layouts verify loads, filtration routing, and rotary options.
- Production: Stress-relieved frames assemble with 72-hour wet QC calibration.
- Export: Vacuum-sealed crating with full documentation for customs clearance.
- Support: Remote install assistance, CAM guidance, and stocked wear parts.
Customization Milestones & Timelines
| Phase | Core Deliverables | Typical Duration | Buyer action |
|---|---|---|---|
| 1. Engineering | CAD drawings, component specifications, electrical schematics | 5–7 Days | Sign-off on final specs |
| 2. Production | Frame welding, stress-relief annealing, component assembly | 15–20 Days | Mid-project photo updates |
| 3. QC Testing | 3D carving test, water seal verification, axis calibration | 3–5 Days | Review test run video |
| 4. Shipping | Export packaging, customs filing, ocean freight tracking | 30–40 Days | Arrange local rigging/unloading |
Ordering Information, Lead Times & Factory-Direct Pricing
Every configured 4x8ft cnc stone router quote includes wet-cut validation video, rail mapping, and export crating before shipment. Standard 1325 builds ship in 30–45 business days ex-factory; ATC or 4-axis OEM packages add 10–15 days for engineering sign-off.
| Program | MOQ | Typical lead time |
|---|---|---|
| 1325 standard wet-cut stock | 1 set | 30–40 business days |
| 1325 + linear ATC carousel | 1 set | 35–45 business days |
| Custom 4-axis rotary OEM | 1 set | 45–55 business days |
4x8ft CNC Stone Router FAQs
Can a 4x8ft CNC stone router handle full granite slabs without repositioning?
Yes. The 1300×2500 mm bed supports full sheet cutting on standard 4×8 slabs. Sunken-bed mass and helical rack drives hold positioning during heavy granite cutting without mid-sheet reclamping.
What is the difference between standard spindle and ATC upgrades?
Standard builds use 3.0–5.5 kW water-cooled spindles with manual collet changes. ATC packages add carousel or linear racks for automated profiling, drilling, and marble engraving tool swaps under 8 seconds on high-volume countertop fabrication runs.
What lead times apply to custom OEM 4×8 builds?
Engineering sign-off takes 5–7 days; production 15–20 days; QC wet-test 3–5 days; ocean freight 30–40 days. Full custom china 4x8ft cnc stone router programs typically complete in 45–55 days from deposit.
How should operators maintain wet-cut rails and spindles?
End-of-shift washdown, dry exposed steel, inspect bellows, and service the slurry tank so grit does not reach HIWIN blocks. Flood cooling extends diamond life on artificial stone, travertine, and soapstone jobs. Share layout drawings via Contact ProMach for commissioning scope and spindle preferences.
