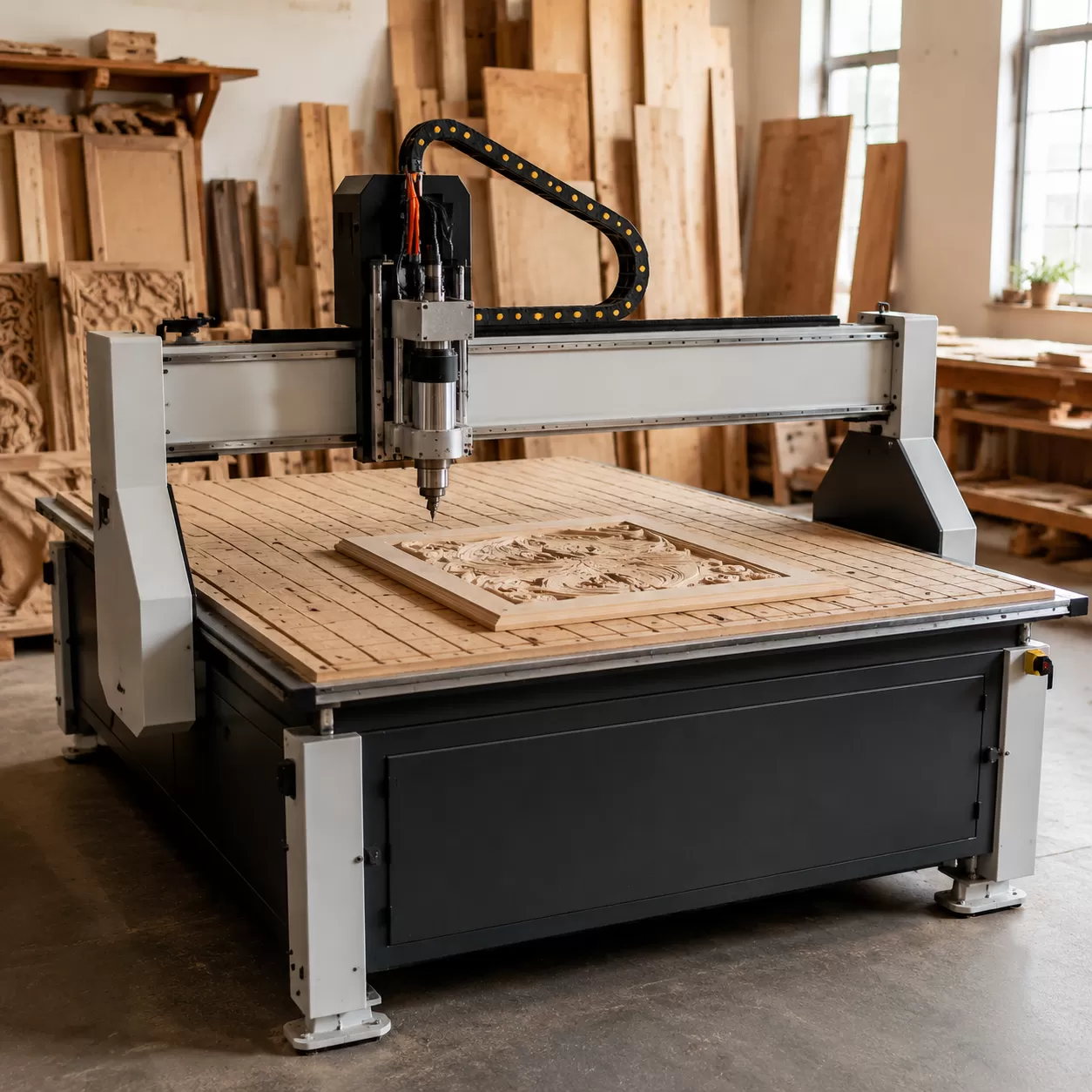

Engineered for Production Scale: The ProMach 1530 Solution
As a leading CNC wood routers manufacturer and supplier, we understand the bottlenecks that custom furniture shops and industrial manufacturing units face. When handling oversized materials, standard-sized beds lead to wasted time, constant sheet repositioning, and excessive material scrap. We engineered the ProMach 1530 CNC Wood Router to eliminate these inefficiencies, offering the ultimate operational sweet spot for high-output production.
This industrial CNC wood router features a true 5×10 foot (1500 x 3000 mm) cutting envelope. This expanded surface area is a game-changer for large-format sheet materials, allowing your shop to accelerate workflow efficiency and maximize material yield.
Why a True 5×10 CNC Router Matters
- Zero Overhang: Easily accommodate standard 5ft x 10ft sheets of plywood, MDF, plastics, and composite materials flat on the bed.
- Seamless Nesting: Run high-density nesting layouts for cabinet door making and furniture components without splitting files.
- Continuous Operations: Reduce material handling time by up to 40%, keeping the machine cutting rather than waiting on manual material adjustments.
- Maximum Versatility: Transition effortlessly between high-volume parts production and oversized custom architectural millwork on a single sheet material CNC platform.

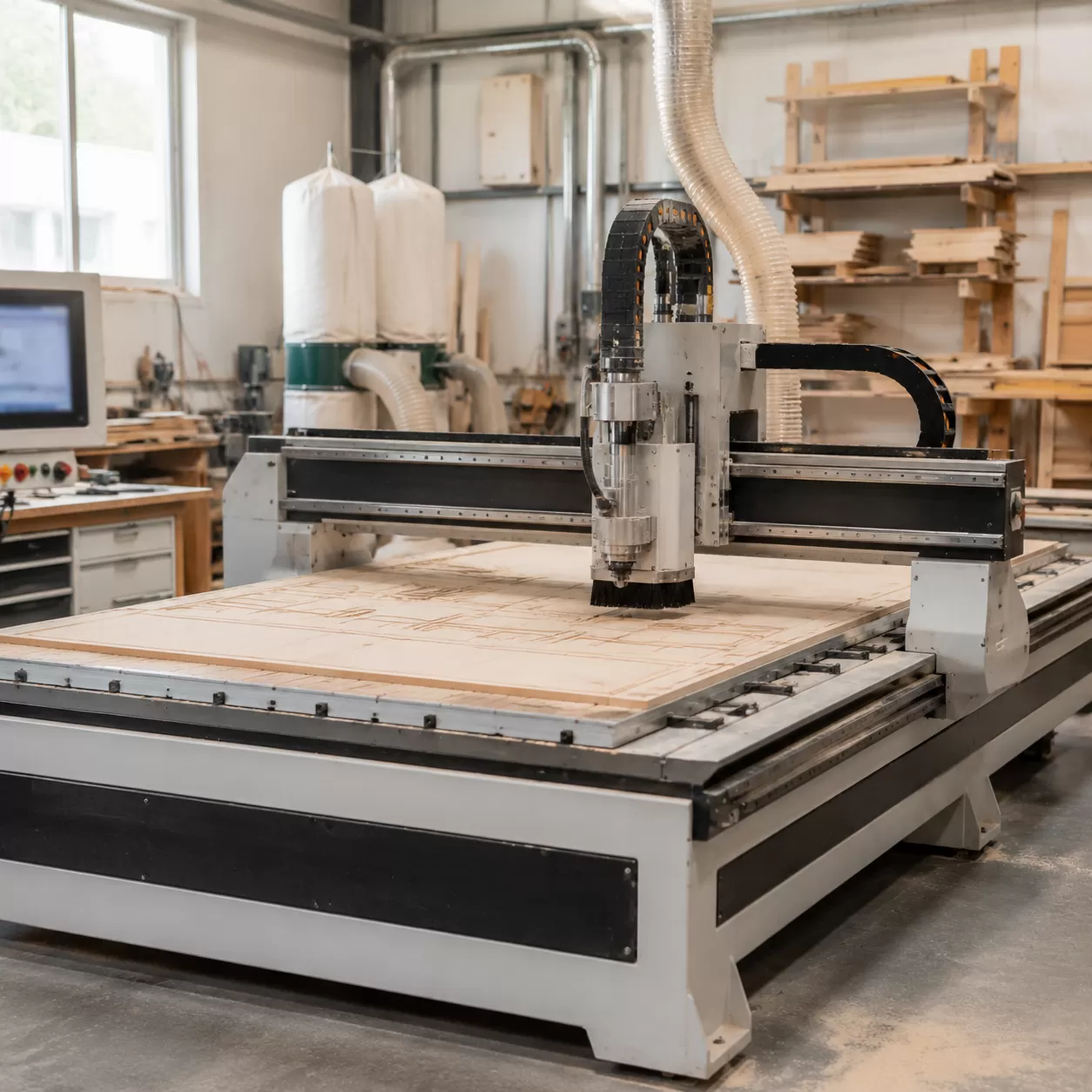

Why Industrial Woodworking Shops Choose the ProMach 1530
When your shop transitions to large-format production, general-purpose machinery won’t cut it. Industrial shops choose this heavy-duty sheet material CNC router because it eliminates mechanical flexing, guarantees part accuracy, and keeps throughput moving at maximum velocity.
Unyielding Structural Rigidity & Heavy-Duty Frame
The foundation of the ProMach 1530 is a massive, all-steel gantry and stress-relieved base frame. We heat-treat and precision-mill every frame to ensure it absorbs structural vibrations during high-speed directional changes. This unyielding rigidity is what allows our industrial CNC wood router to maintain flawless accuracy during aggressive deep-pass nesting operations.
- Heavy-Wall Steel Tubing: Eliminates frame twisting and harmonic distortion under heavy loads.
- Stress-Relieved Construction: Prevents structural warping over years of continuous operation.
- High-Mass Gantry: Supports heavy spindle configurations without deflection.
Intelligent Multi-Zone Vacuum Hold-Down System
Maximized efficiency requires parts to stay perfectly stationary without mechanical clamps. The ProMach 1530 features an advanced 5×10 CNC router with vacuum table layout divided into independent high-flow zones. This matrix layout allows operators to isolate suction directly beneath the material, providing relentless hold-down force for small parts and large sheets alike.
| Feature | Advantage | Production Benefit |
|---|---|---|
| Multi-Zone Matrix | Concentrates vacuum pressure where needed | Secures small nested parts without shifting |
| High-Flow Grid | Uniform suction across the 1500 x 3000 mm bed | Eliminates material lifting and edge chatter |
| Dual-Layer Phenolic | Perfectly flat, moisture-resistant surface | Extends spoilboard life and maintains Z-axis depth |
High-Speed Precision Drive & Motion Mechanics
To maintain tight tolerances on a large format wood router, raw power must be balanced with absolute precision. The ProMach 1530 utilizes synchronized dual-drive helical rack and pinion systems along the Y-axis, paired with premium linear guide rails. This mechanical setup delivers smooth acceleration, eliminates backlash, and ensures high-speed execution during complex MDF cutting machine and plywood cutting machine programs.
- Helical Rack and Pinion: Provides maximum tooth engagement for smooth, chatter-free motion.
- Square Linear Guides: Delivers high load-bearing capacity and precise tracking across all axes.
- Digital Servo Drives: Guarantees closed-loop accuracy with real-time position feedback.

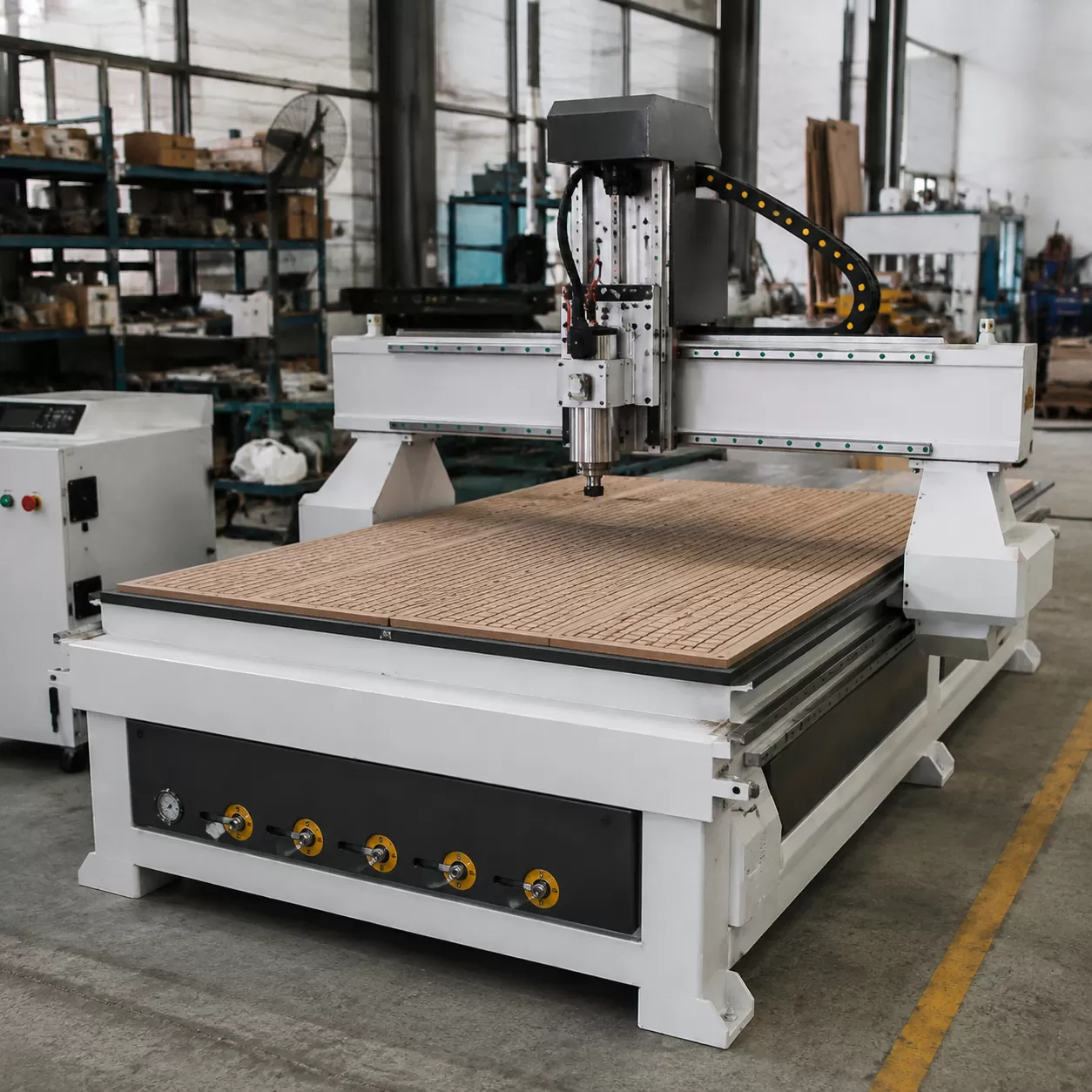

Technical Specifications & Configuration Matrix
This 3015 wood CNC machine is built for heavy-duty production, ensuring you get industrial-grade accuracy across every square inch of the table.
| Feature | ProMach 1530 Specification |
|---|---|
| Working Area | 1500 x 3000 x 200 mm (Full 5ft x 10ft sheet capacity) |
| Spindle Type | 6.0kW – 9.0kW Air-Cooled High Frequency (ATC Optional) |
| Drive System | High-torque Leadshine/Delta Hybrid or AC Servo Motors |
| Transmission | Precision Helical Rack and Pinion (X/Y), Ball Screw (Z) |
| Linear Guides | 25mm Heavy-duty PMI/HIWIN Square Rails |
| Control System | NK105 / RichAuto DSP / Mach3 / Syntec Industrial |
| Positioning Accuracy | ±0.03mm / 300mm |
| Vacuum Table | Multi-zone high-flow phenolic grid with T-slots |
| Voltage Options | 220V/380V, 3-Phase, 50/60Hz |
Our large format wood router is engineered for high-duty cycles. If you need specific performance parts, we provide high-quality CNC spare parts to customize your machine for specialized materials or higher speed requirements. We maintain a strict focus on structural integrity to ensure this 5×10 CNC maintains its calibration even after years of 24/7 operation.

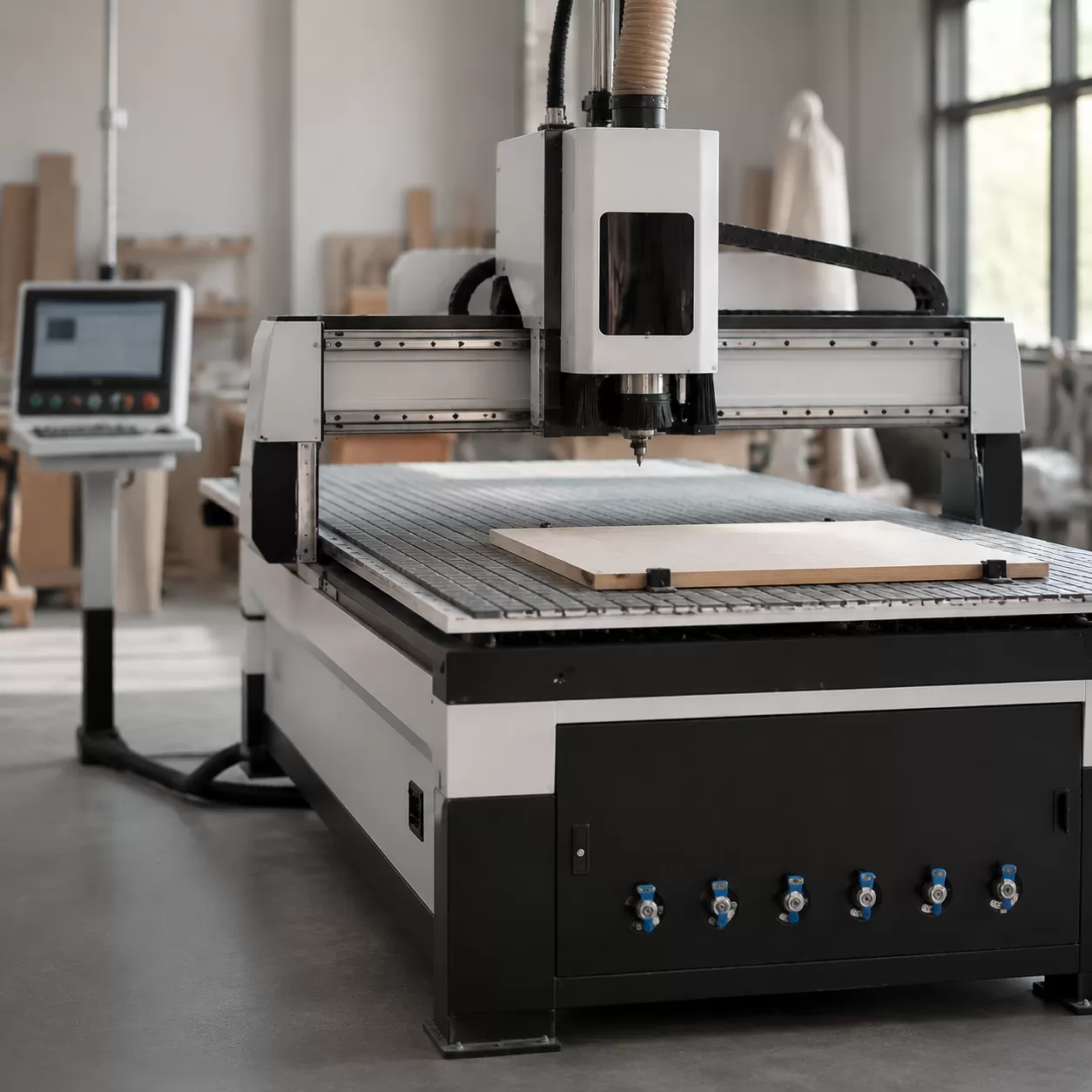

Versatility Across Diverse Sheet Materials
Our 1530 CNC Wood Router is a true workhorse designed to handle far more than standard timber. While it excels as a dedicated plywood cutting machine and MDF cutting machine, its rigid architecture allows it to transition smoothly between completely different material classes without losing accuracy.
Primary Woodworking Applications
For commercial shops, this large format wood router handles high-volume nesting and intricate detailing with ease. It is the go-to cabinet door making CNC machine, processing full sheets of Baltic birch, melamine, hardwoods, and particleboard without any panel overhang.
Non-Wood & Soft Metal Adaptability
Beyond traditional timber, the heavy-duty spindle and rigid frame effortlessly cut through non-ferrous materials. It delivers clean edges on:
- Plastics & Composites: Acrylic, PVC, HDPE, and UHMW.
- Signage Materials: Alucobond, dibond, and dense foam boards.
- Soft Metals: Non-ferrous sheets like aluminum and brass. For shops looking to expand their production capabilities into dedicated metal fabrication, utilizing specialized tooling on our frame bridges the gap before moving into full industrial metal fabrication solutions or specialized cutting systems.
Target Sectors
We engineered this industrial CNC wood router to serve high-output industries requiring speed and repeatable precision. The primary sectors utilizing this platform include commercial cabinet makers, architectural millwork shops, exhibition stand builders, and sign manufacturing companies.

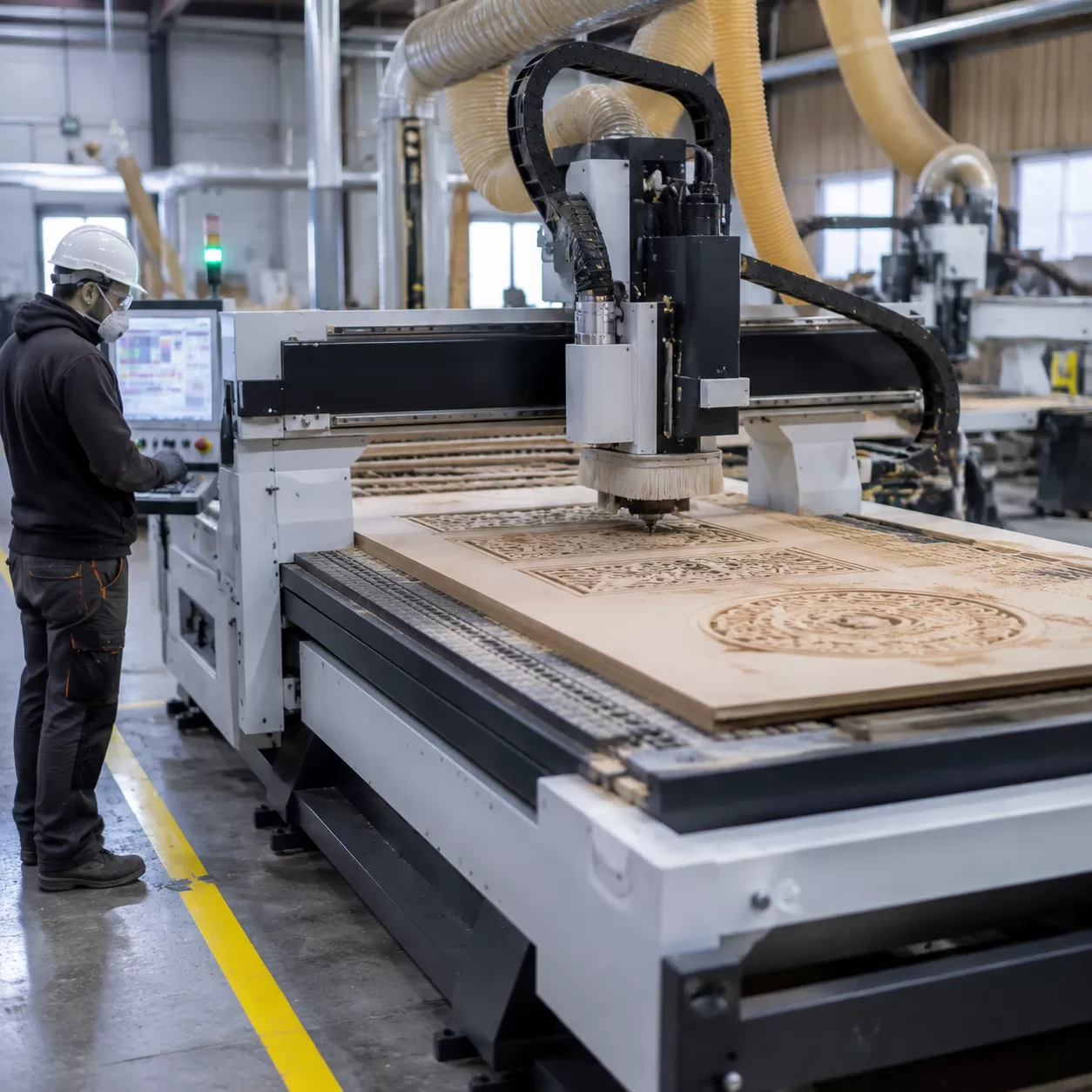

Seamless Workflow Control & Software Support
Running a high-volume 1530 CNC wood router shouldn’t feel like rocket science. We’ve designed the ProMach control interface to be intuitive, utilizing standard G-code input that plays nice with almost every major CAD/CAM suite on the market. Whether you are nesting complex layouts in Vectric, Fusion 360, or Type3, our system ensures a “plug-and-play” experience that minimizes downtime between design and cutting.
To keep your production line moving without manual hiccups, we’ve integrated smart hardware features that handle the tedious maintenance and setup tasks for you:
- Automatic Tool Length Calibration: Our precision sensor automatically defines tool offsets, ensuring your ATC CNC router bits hit the exact depth every single time.
- Centralized Electric Oil-Lubrication: No more manual greasing. The system automatically delivers metered lubrication to the linear guides and ball screws, extending the life of your industrial CNC wood router.
- Real-Time Signal Feedback: The control console provides instant diagnostics, helping operators monitor spindle speeds and feed rates on the fly.
By focusing on a streamlined digital-to-physical workflow, we help shops turn raw sheet material into finished parts faster. This level of control is exactly why professional woodworkers trust our 3015 wood CNC platforms for consistent, daily production.
Tailor the ProMach 1530 to Your Production Line
Every woodworking shop runs a bit differently, which is why we engineered the ProMach 1530 to adapt to your specific workflow. While our standard 5×10 CNC router is a powerhouse right out of the box, these industrial upgrades let you customize the machinery to match your exact manufacturing volume.
- Automatic Tool Changer (ATC): Upgrade to an ATC wood router 1530 configuration to eliminate manual tool swaps. This system switches cutters in seconds, keeping your plywood cutting machine moving without operator intervention.
- Industrial Dust Collection: High-volume MDF cutting generates massive amounts of fine waste. Our heavy-duty dust collection systems keep your linear guides clean and your shop air breathable.
- Rotary 4th Axis: Expand beyond flat panel processing. Adding a rotary axis allows your industrial CNC wood router to carve complex 3D posts, table legs, and custom columns. If your workflow requires even more advanced geometry, we also design specialized 4-axis CNC router systems built for complex, multi-sided machining.
- Misting Systems: If you plan to cut soft metals or thick plastics alongside your standard wood sheets, our integrated coolant misting system cools the tooling to prevent material warping and extend bit life.
The ProMach Reliability Promise
Investing in a 1530 CNC wood router is a significant step for your production line, and we back that investment with an ironclad commitment to your success. We don’t just ship machinery; we partner with your shop to guarantee maximum uptime and long-term profitability.
- Comprehensive 2-Year Mechanical Warranty: Every ProMach industrial CNC router comes protected by a full 2-year mechanical warranty. We build our machines to handle heavy-duty, multi-shift nesting operations, and we stand behind our structural integrity.
- Factory-Direct Technical Training: Eliminate the learning curve. We provide hands-on, factory-direct training options to ensure your team masters the machine layout, software integration, and safety protocols from day one.
- Lifetime On-Call Engineering Support: If you ever run into a technical hitch or need advice on a complex project, our expert engineering team is just a phone call away for the entire lifespan of your equipment.
We manufacture our systems to the highest industrial standards, ensuring your shop stays competitive, productive, and efficient for years to come.
Frequently Asked Questions About 1530 CNC Routers
Can the ProMach 1530 fit a full 5×10 Baltic Birch sheet without overhang?
Yes, absolutely. As a dedicated CNC Wood Routers Manufacturer and Supplier, we specifically engineered the ProMach 1530 with a true $1500 times 3000text{ mm}$ (5ft x 10ft) cutting envelope. This ensures that oversized sheet materials like Baltic Birch plywood or standard MDF fit entirely on the matrix vacuum table, giving you full edge-to-edge cutting capability without any awkward material overhang.
What are the primary facility power infrastructure requirements for this machine?
The standard configuration for this heavy duty nesting CNC machine requires a 3-phase 220V/380V/440V (50/60Hz) power supply to run the high-torque spindle and industrial vacuum pumps efficiently. We can customize the voltage internal transformers during production to match your specific shop infrastructure.
How does a vacuum table compare to a traditional mechanical T-slot table on a 5×10 frame?
For a large format wood router, a multi-zone vacuum hold-down system is vastly superior to a traditional T-slot table.
- Vacuum Table: Delivers instant, uniform pressure across the entire sheet, preventing thin plywood or MDF from lifting or warping during high-speed routing. It is the gold standard for efficient cabinet CNC machine production.
- T-Slot Table: Requires manual clamping, which adds significant setup downtime and increases the risk of tool collisions with metal clamps.
Our ProMach 1530 uses a hybrid grid design, giving you the best of both worlds by combining high-power vacuum zones with integrated T-slots for specialized workpieces.
Is on-site setup and operational training included with delivery?
We include comprehensive factory-direct technical training resources and lifetime on-call engineering support with every 1530 CNC Wood Router we ship. For shops looking for a completely hands-off deployment, we offer optional turn-key on-site installation and operational training packages tailored to your production team’s experience level.
