Industrial Technical Features
We engineered our 1325 ATC CNC router with a heavy industrial backbone and premium components to handle high-volume panel furniture production line demands.
Heavy-Duty Rigid Machine Base & Structural Integrity
The foundation of our 4×8 ft woodworking table features a heavy-duty, stress-relieved steel gantry and one-piece welded frame.
- Vibration Dampening: Annealed and precision-milled frames eliminate internal stress, preventing frame warping over years of continuous heavy cutting.
- Massive Structural Weight: Offers the rigidity needed to eliminate tool chatter during high-speed CNC nesting center operations.
- Perfect Alignment: Dual-supported gantry uprights guarantee squareness and positioning accuracy across the entire working envelope.
9.0kW ATC High-Frequency Air-Cooled Spindle
At the heart of the cutting system is a powerful 9.0kW ATC spindle motor, designed for aggressive material removal and pristine edge finishes.
- Air-Cooled Efficiency: Eliminates the maintenance, freezing risks, and leaks associated with liquid-cooled systems.
- Ceramic Bearings: High-precision industrial bearings reduce heat buildup, ensuring long runtime profiles at speeds up to 24,000 RPM.
- ISO30/HSK60 Tooling Interface: Delivers exceptional clamping force for high-speed routing without tool slippage.
Automated Tool Magazine Systems
We build this automatic tool change CNC wood router with two flexible configuration options to match your workflow speed and budget.
| Feature | Linear Auto Tool Changer | Tool Changer Carousel |
|---|---|---|
| Location | Fixed at the rear or under the gantry | Mounted directly on the traveling gantry |
| Tool Capacity | Typically 6 to 10 tools | Typically 8 to 16 tools |
| Switching Speed | Moderate (spindle travels to the tool rack) | Ultra-fast (magazine moves with the spindle) |
| Best Used For | Entry-to-mid level cabinet making | High-speed, continuous nesting lines |
High-Density Vacuum Adsorption Table & T-Slot Integration
Small parts shifting mid-cut ruins yield. Our CNC router with vacuum table ensures complete workpiece stability.
- Multi-Zone Control: High-density matrix grid table divided into independent zones, allowing you to focus suction only where needed.
- Dual-Function System: Integrated T-slot tracks let you easily mechanical-clamp odd-shaped solid wood workpieces when vacuum hold-down isn’t practical.
- Phenolic Surface: Durable, warp-resistant material maintains flat tolerances across the entire 4×8 footprint.
High-Precision Driving & Motion Systems
We pair advanced motion hardware with an AC servo driven CNC router architecture.
- Helical Rack and Pinion: X and Y axes utilize hardened helical racks for smooth engagement, minimal backlash, and quiet operation.
- Premium TBI Ball Screws: The Z-axis uses a high-grade ball screw for precise plunge depths and smooth 3D carving transitions.
- Closed-Loop Servos: High-torque AC servo motors provide real-time position feedback, eliminating skipped steps during fast acceleration cuts.
Industrial Syntec Control System Integration
We drive this hardware with an industry-standard Syntec control CNC router system, offering an intuitive interface for a standalone panel furniture production line.
- Dedicated Hardware: Industrial-grade CNC controller board independent of a standard PC, immune to crashes, viruses, and OS updates.
- Advanced Look-Ahead: Multi-block look-ahead processing calculates optimal acceleration paths, resulting in smoother corners and faster cycle times.
- Seamless Compatibility: Works natively with top design software like Vectric, AlphaCAM, Type3, and cabinet design nesting programs.

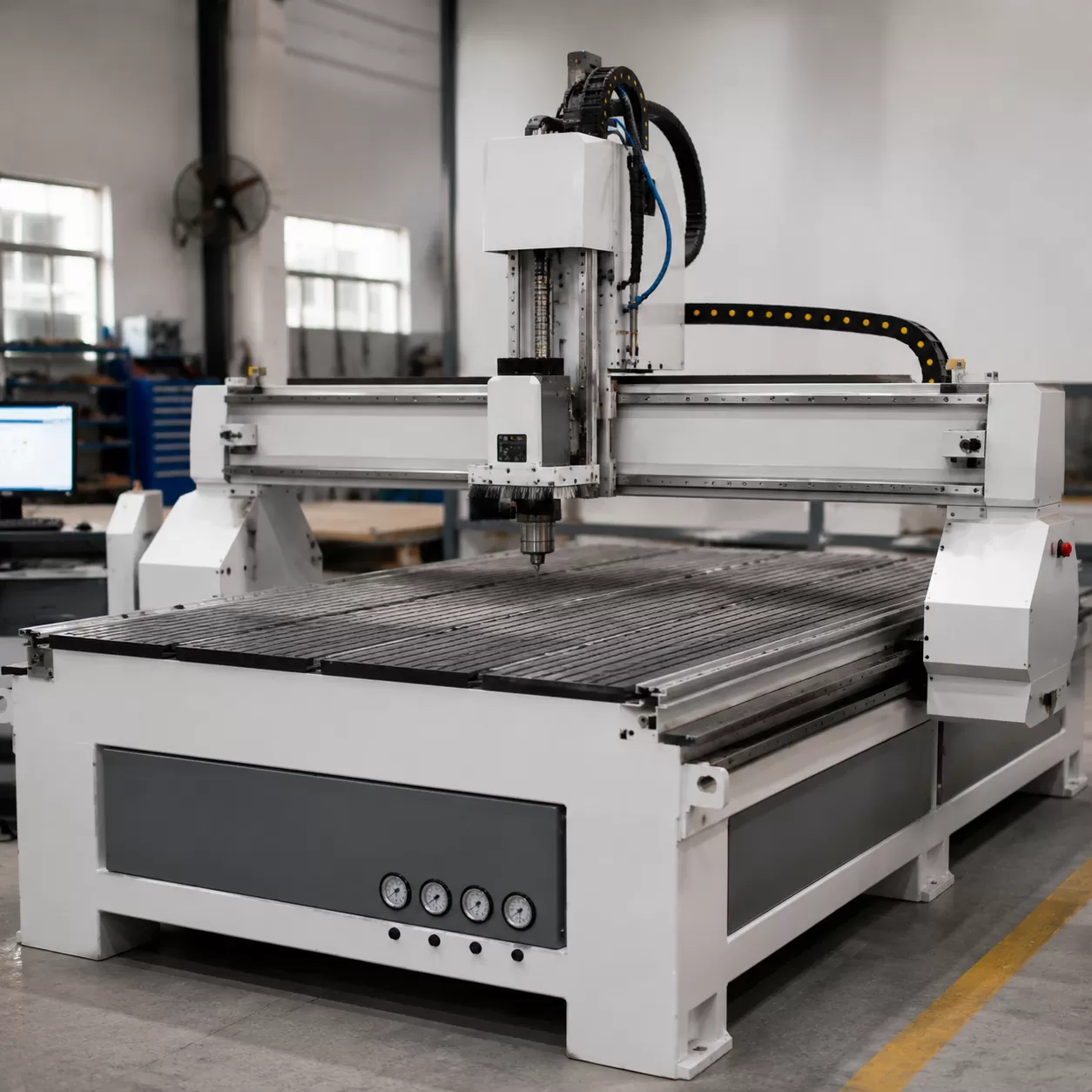

ProMachâ„¢ 1325 ATC Technical Specifications
The ProMachâ„¢ 1325 ATC is engineered as a high-speed CNC nesting center, delivering heavy-duty stability and precise execution for 24/7 industrial manufacturing. Built on a standardized 4×8 ft woodworking table footprint, this 1325 ATC CNC router integrates premium components to maximize throughput in high-output environments.
| Parameter | Specification Details |
|---|---|
| Working Area (X × Y × Z) | 1300 × 2500 × 300 mm (Standard 4′ × 8′ Woodworking Table) |
| Spindle Type | 9.0 kW ATC High-Frequency Air-Cooled Spindle Motor |
| Spindle Speed | 6,000–24,000 RPM |
| Tool Changer Capacity | 8-Slot or 12-Slot (Linear Auto Tool Changer / Tool Changer Carousel) |
| Driving System | High-Precision AC Servo Motors and Drives |
| Control System | Industrial Syntec Control CNC Router Integration |
| Table Structure | Multi-Zone High-Density Vacuum Table with T-Slot Integration |
| Positioning Accuracy |  ±0.03 mm |
| Repositioning Accuracy |  ±0.02 mm |
| Maximum Rapid Travel Rate | 60,000 mm/min |
| Maximum Working Speed | 25,000 mm/min |
| Working Voltage | 3-Phase AC 380V / 50Hz (Optional AC 220V Available) |
Our engineering focus balances structural rigidity with agile motion controllers. This configuration ensures that the automatic tool change CNC wood router maintains tight tolerances under immense material resistance, making it an essential asset for cabinet making, panel furniture production lines, and high-volume nesting operations.

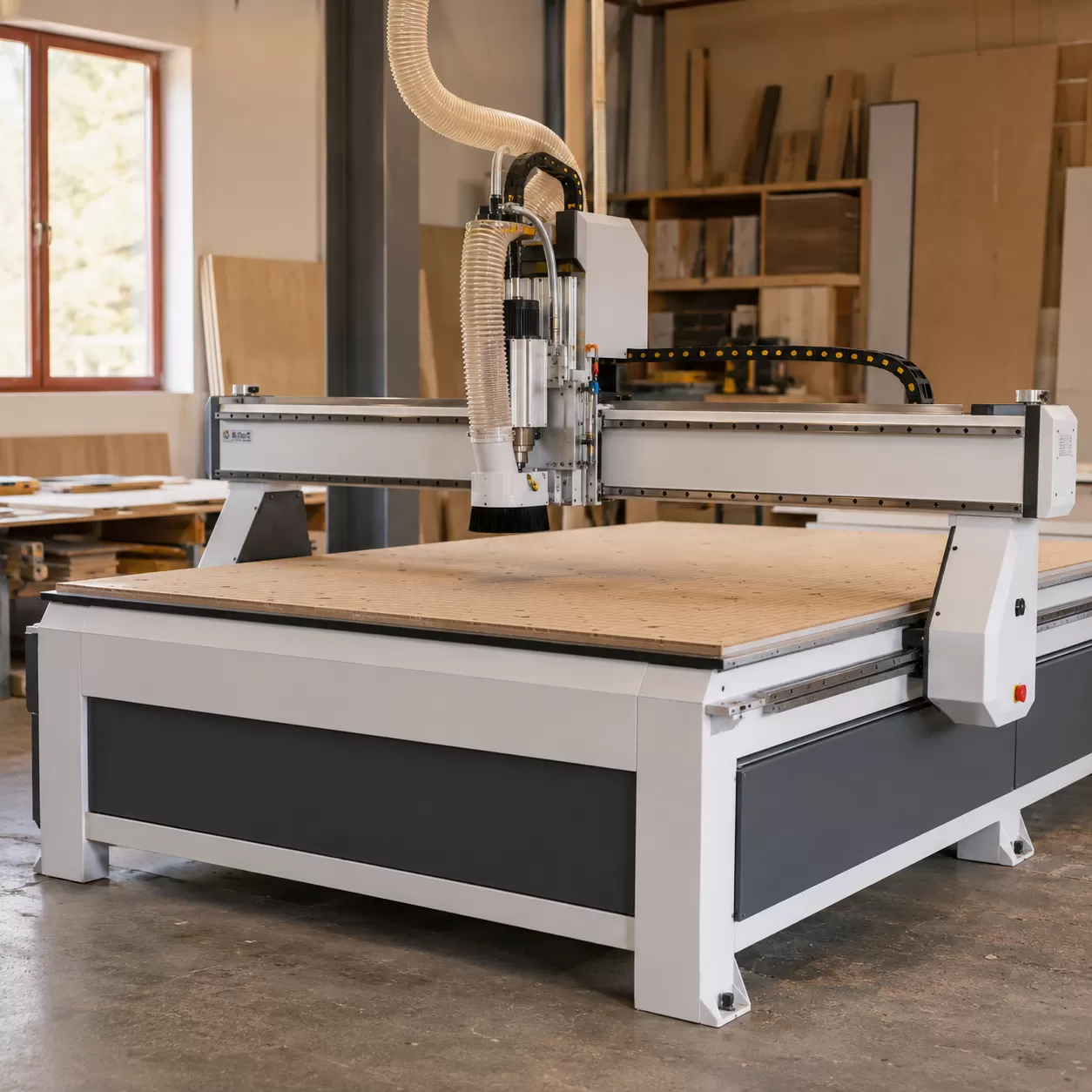

Versatility Across High-Output Industrial Applications
The 1325 atc cnc router is the backbone of high-volume manufacturing environments. By combining a standard 4×8 ft woodworking table with a rapid automatic tool change system, this machine eliminates manual intervention, allowing shops to transition from complex cutting to detailed carving seamlessly. It is engineered specifically to maximize uptime and maximize yield in rigorous, multi-shift production schedules.
Main Commercial Processing Sectors
- Panel Furniture & Cabinetry: The ultimate 4×8 CNC nesting machine for high-speed cabinet making, closet manufacturing, and custom shelving. It manages sizing, grooving, and drilling in a single continuous cycle, making it ideal for setting up an automated panel furniture production line.
- Commercial Door Production: Efficiently handles mass production of interior doors, exterior solid wood doors, and complex molding profiles using various specialized router bits.
- Architectural Millwork: Streamlines the execution of intricate decorative wall panels, complex ceiling grids, and custom columns.
- Exhibition & Signage Displays: Delivers precise nesting of heavy-duty materials for custom retail fixtures, dimensional letters, and outdoor signage.
Material Compatibility Range
This industrial 3-axis CNC machining center processes a diverse spectrum of materials without sacrificing speed or edge quality.
| Material Type | Common Industrial Applications |
|---|---|
| Wood & Composites | Solid wood, MDF, plywood, particleboard, and melamine |
| Plastics & Synthetics | Acrylic, PVC, ABS, UHMW, and solid surface materials |
| Non-Ferrous Metals | Aluminum sheets, brass, and copper (using appropriate mist coolants) |
| Composites | Alucobond, ACM paneling, and fiberglass sheets |
For specialized maintenance or processing setups that require specialized tool replacement parts, integrating proper CNC spare parts ensures your machine maintains peak cutting accuracy across all these material groups.

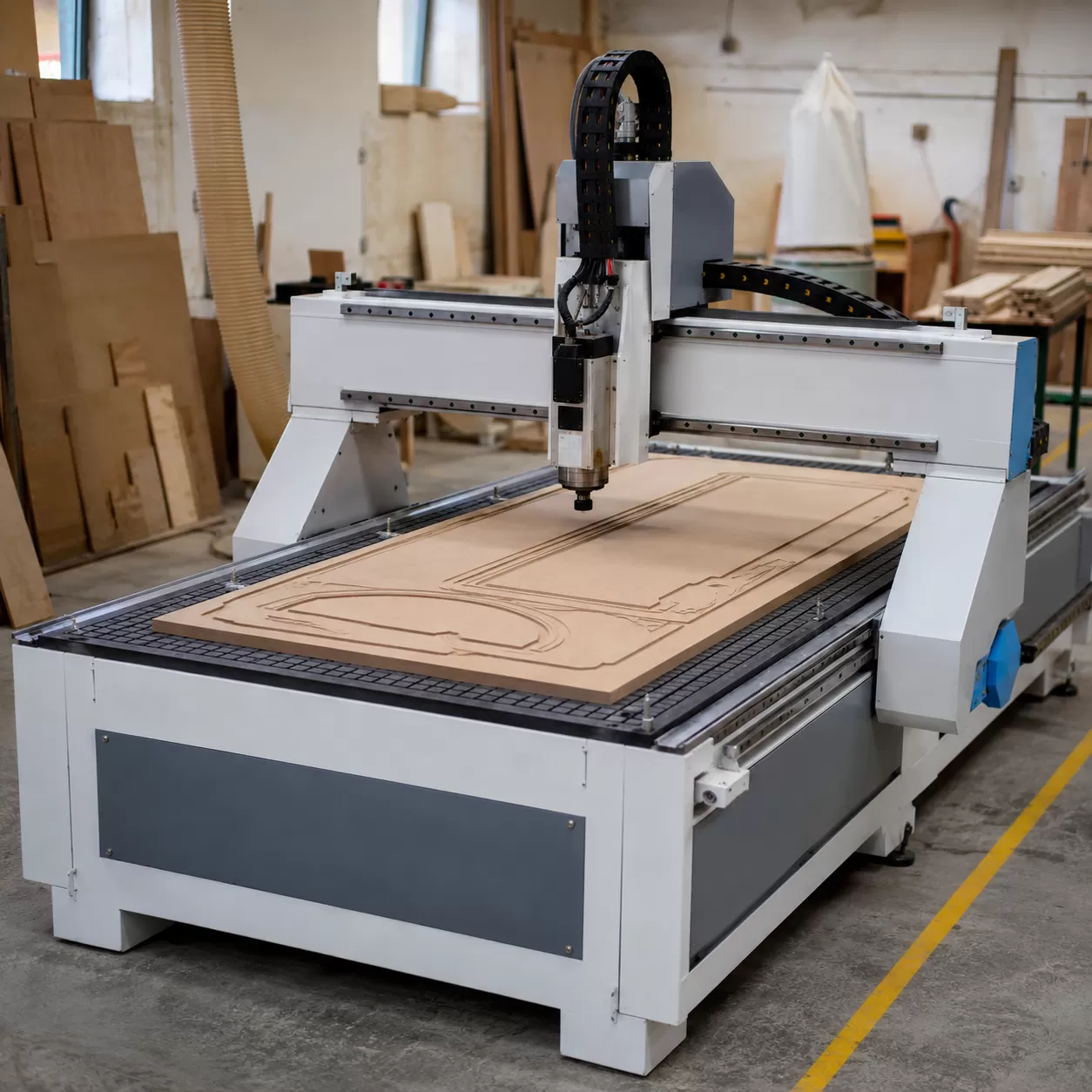

Maximizing Floor Productivity with Optional Smart Modules
To truly unlock the high-speed potential of a 1325 atc cnc router, standard operation isn’t always enough. For factories running continuous shifts, adding smart automation modules to a 4×8 CNC nesting machine minimizes manual handling, eliminates downtime, and keeps the workshop floor moving.
We offer targeted upgrades designed to integrate directly with our heavy-duty platforms:
- Automatic Loading and Unloading Systems: This automated setup transforms your standalone automatic tool change CNC wood router into a high-output production cell. Raw sheets are pushed onto the vacuum table automatically while finished parts are simultaneously discharged onto a conveyor belt, cutting cycle times in half.
- Automatic Tool Changer Carousel Upgrades: While a standard linear auto tool changer works efficiently, upgrading to a high-capacity tool changer carousel speeds up tool transition times even further, keeping the 9.0kW ATC spindle motor cutting without interruption.
- Dual-Zone Vacuum Table Switching: This allows operators to load a new sheet on one half of the 4×8 ft woodworking table while the machine actively cuts on the other half.
- Custom CCD Camera Systems: Adds precise visual positioning for shops running digital print-to-cut operations, expanding machine capabilities well beyond standard panel furniture production line duties.
If your shop needs to expand into specialized fabrications, our heavy-duty frame design can also be customized with integrated aggregate heads or paired alongside a specialized laser engraving machine to create a complete, versatile manufacturing hub. Implementing these smart modules keeps your floor lean, fast, and highly profitable.

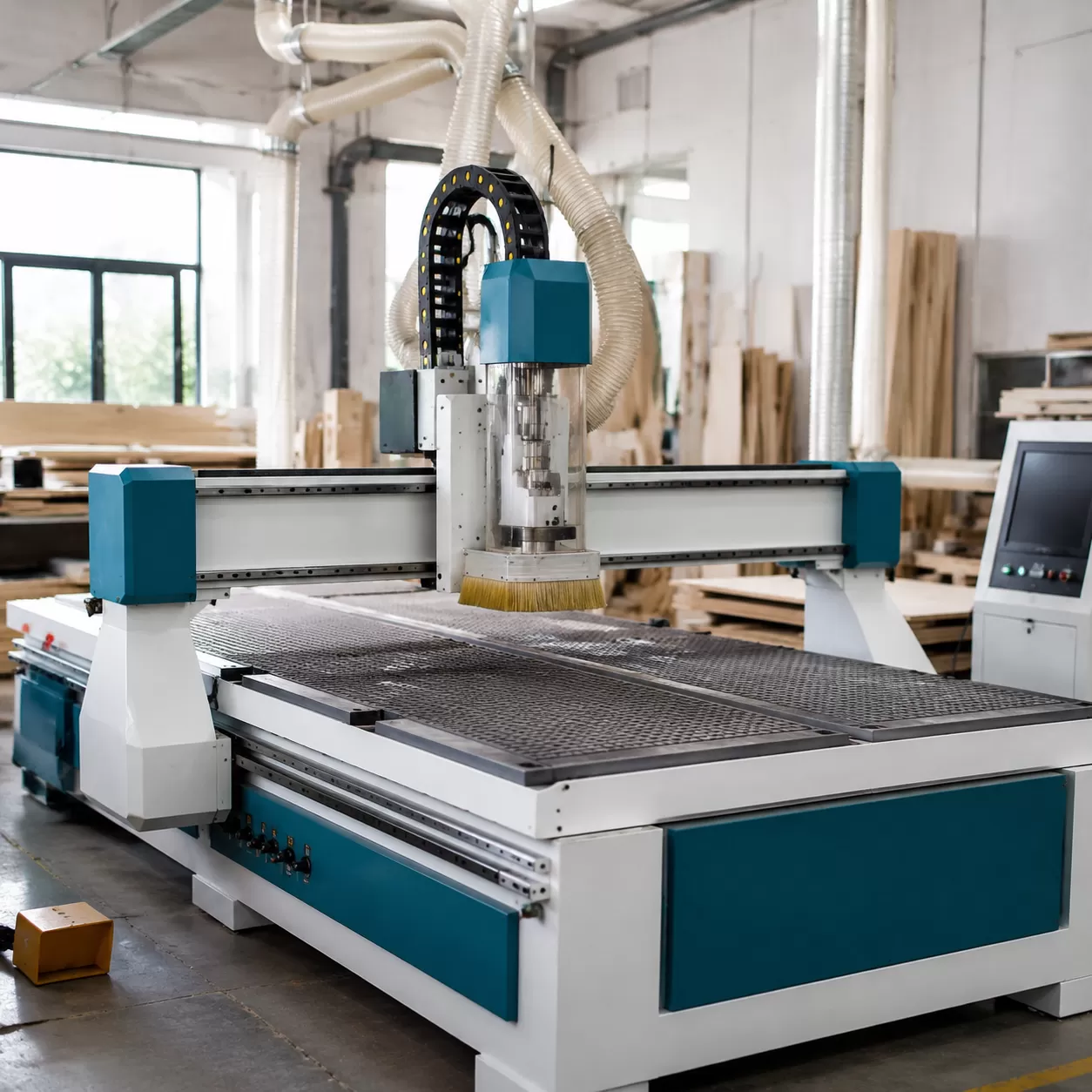

Industrial Quality Assurance & Global Lifetime Support
Every 1325 ATC CNC router we build undergoes a rigorous, multi-point quality control process before leaving our factory floor. From stress-relieving the heavy-duty chassis to laser-interferometer calibration of the high-precision linear guides, we ensure your machine arrives ready for high-output industrial production. Our manufacturing standards comply with strict international benchmarks, reflecting our commitment to certifications and quality across our entire equipment lineup.
Investing in an automatic tool change CNC wood router is about long-term reliability, not just the initial purchase. That is why we back your machinery with comprehensive, lifelong technical assistance. Whether you need help optimizing your 4×8 CNC nesting machine for a new panel furniture production line or troubleshooting a software configuration, our global engineering team provides rapid, dependable CNC solutions support to minimize your downtime and keep your workshop running at peak productivity.
FAQs for 1325 ATC CNC Router Buyers
What does 1325 mean on a CNC router?
The numbers 1325 represent the working dimensions of the machine bed. It means the router has a processing area of 1300mm x 2500mm, which perfectly matches a standard 4×8 ft woodworking table. This is the industry-standard size for processing large sheets of plywood, MDF, and plastics without pre-cutting.
What is the difference between a linear and carousel ATC system?
- Linear Auto Tool Changer: The tool magazine sits at the end of the bed in a straight line. It is highly reliable, economical, and easy to maintain, making it ideal for standard nesting CNC router setups.
- Tool Changer Carousel: The magazine is mounted directly to the gantry and rotates. Because the tools travel with the spindle, tool change times are faster, which maximizes efficiency in high-volume panel furniture production lines.
Can a 1325 ATC CNC router cut aluminum and other soft metals?
While it is primarily a wood engraving and cutting machine, a heavy-duty 1325 ATC CNC router handles non-ferrous metals easily. Armed with a 9.0kW high-frequency spindle and the right feed rates, it delivers clean cuts on aluminum sheets, brass, and copper. For dedicated metal fabrication, a specialized aluminum CNC router will provide optimized cooling and rigidity.
What software do I need to run a 4×8 CNC nesting machine?
You need two types of software to run a 4×8 CNC nesting machine efficiently:
- CAD/CAM Software: Programs like Vectric Aspire, ArtCAM, or Fusion 360 for designing parts and generating G-code toolpaths.
- Cabinet & Nesting Software: Specialized design-to-production software like Cabinet Vision or Alphacam to optimize material yields and automate label printing for cabinet making.
What electrical power supply is required for an industrial 3-axis CNC machining center?
An industrial-grade AC servo driven CNC router typically requires a 3-phase 380V or 220V (50Hz/60Hz) power supply. This industrial voltage is necessary to stably power the high-torque servo motors, the 9.0kW ATC spindle motor, and the high-output vacuum adsorption pump simultaneously.
